erwin Evolve 2023.1.0 - General

Configuring SAML2 Authentication and SSO with Okta

Configuring SAML2 Authentication and SSO with Okta

If your organization uses Okta (www.okta.com) as an Identity provider, these instructions will help you to configure Single Sign On, between Evolve and your IdP.

Create new Application in Okta

  1. Select Create new App

  2. Platform = Web

  3. Sign on Method = SAML2.0

  1. Click create

Configure the Application

  1. Provide app name



  1. General

  1. Single Sign on URL: Your Evolve URL followed by “/AuthServices/Acs”

    Example https://EvolveTest/evolve/AuthServices/Acs

  2. Ensure “Use this for Recipient URL and Destination UR” is checked

  3. Audience URI (SP Entity ID): Your Evolve URL followed by “/AuthServices”

    Example https://EvolveTest/evolve/AuthServices

  4. Name ID format: EmailAddress

  5. Application username: Email

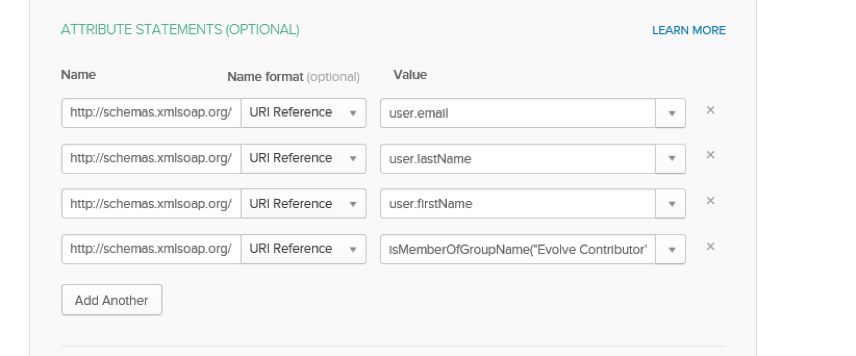

  1. ATTRIBUTE STATEMENTS

Add 4 new Attributes

Name: http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress

Name Format: URI Reference

Value: user.emailaddress



Name: http://schemas.xmlsoap.org/ws/2005/05/identity/claims/surname

Name Format: URI Reference

Value: user.surname



Name: http://schemas.xmlsoap.org/ws/2005/05/identity/claims/givenname

Name Format: URI Reference

Value: user.givenname



Name: http://schemas.xmlsoap.org/claims/Group

Name Format: URI Reference

Value: isMemberOfGroupName("Evolve Contributor") ? "Evolve Contributor" : (isMemberOfGroupName("Evolve Social") ? "Evolve Social" : "NO")

Icon

Description automatically generated

IMPORTANT NOTE: in the above value we have specified the name of the Okta Groups in this case the group names are “Evolve Contributor” and “Evolve Social”. These are the Group names you must specify in Evolve Designer.

This States that any user that in in the Okta group “Evolve Contributor” will be passed as a Contributor user and any user in the Okta group “Evolve Social” will be passed as a Social user. Finally any user that is not a member of either Okta groups will be passed as “No” and will gain no access.

Accept all other defaults

SAML Meta Data

  1. In the Okta Admin Page under “Sign On” you will find the “Identity Provider metadata” link to download you’re the metadata.

Select this link and download it to your evolve server. (Saving the File as a XML file)

  1. Place your metadata file on the Evolve server in the following location “C:\Casewise\Evolve\Site” (ensure it’s a XML file)

  2. Now in Evolve Designer under server Configuration/Authentication tab

  1. Select Authentication mode to “Saml2”

  2. SAML2 Entity id = taken from your Metadata xml File

  3. SAML2 Meta url = “~/NAME OF YOU METADATA FILE.xml”

  4. Evolve’s url = YOUR EVOLVE URL

  1. Save and Configure IIS

Publishing Evolve Site

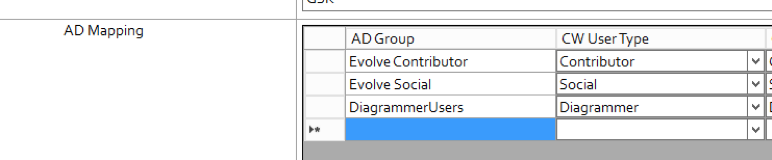

  1. For each model you publish under the deployment of the model you must specify the Okta group names in the “AD Group” Fields this must Match the Okta group Names you have set up along with the Values you specified in the attribute statement

  1. Once set you must save. Then deploy the full site.
