This page explains how to format shapes in the Web Modeler online step by step.

Adding Shapes, Connecting Lines To The Diagram, and Changing Properties

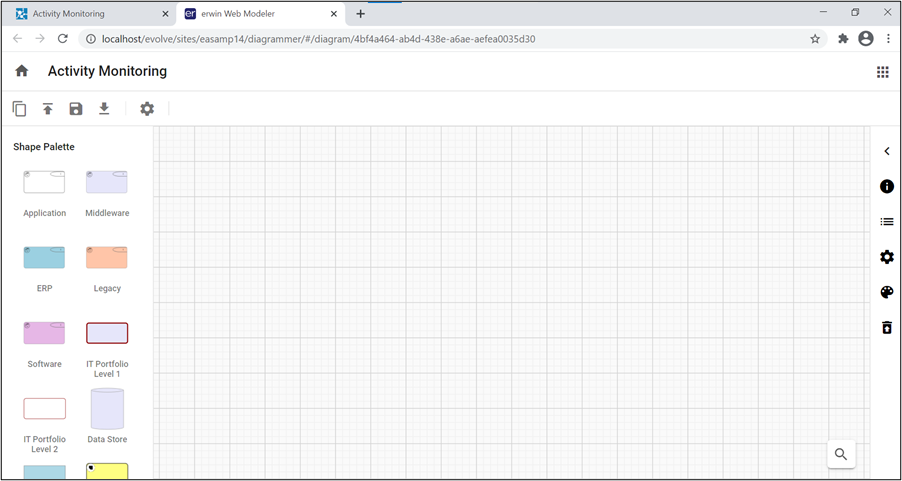

To add shapes to the diagram,

1. Drag and drop the required shape from the Shape Palette.

2. Double-click on the object shape to edit the Title and its Properties.

3. Click Save.

You can use a Connector to link two Shapes, indicating that there is a connection between the two shapes.

To add the connector between the shapes,

1. Select the first shape by clicking on it.

2. Click on one of the + symbols to add the connector and move your mouse pointer to the shape you would like to connect to.

3. Click on the shape to end the selection.

4. If there are multiple connection types between these kinds of objects, you will get a menu to choose the connection
that is appropriate.

To Clear or Delete Shapes from the Diagram

Object Shapes can be Cleared or Deleted from the diagram in two ways.

 To Clear a Shape:

When you choose to Clear a shape, it removes the shape from the diagram, but it does not remove the object it represents from the model.

1. Select the shape you wish to Clear.

2. Click on   icon.


Or

1. Select the shape you wish to Clear.

2. Press the Delete button on your computer's keyboard.

3. Confirm to Clear.



To Delete a Shape:

When you choose to Delete a shape, it removes the shape from the diagram, and when published will remove the object representing from the model too.

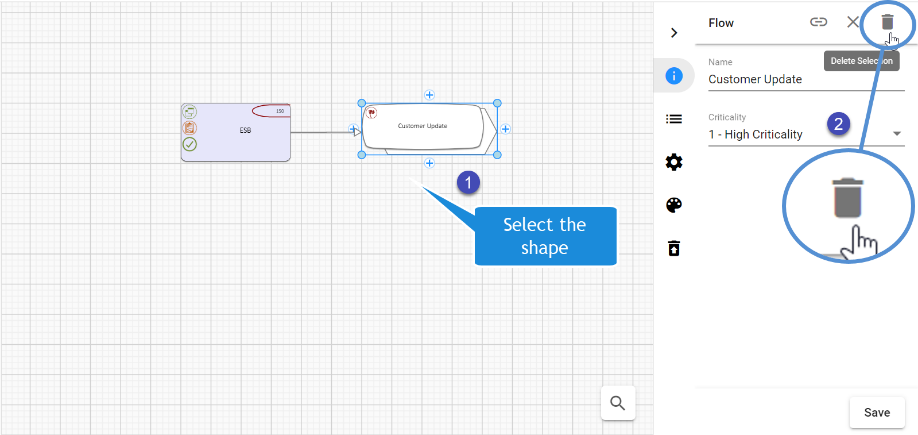

1. Select the shape you wish to Delete.

2. Click on   icon.


Or

1. Select the shape you wish to Delete.

2. Press the Delete button on your computer's keyboard.

3. Confirm to Delete.

If a shape is deleted, any connector associated with the object shape also gets deleted.



When object shapes are deleted using the Delete option, it adds the item to the Trash can icon called Deleted Objects on the right-hand pane.

Adding Background Colors and Borders to the Shapes

Every Shape from the Palette has a definite background color, border size, and border color.

You can format the shape by

1. Background Color of the shape.

2. Border Size to the shape.

3. Border color to the shape.

Some shapes may have Region shapes and Region formatting which overrides these styles such that the style options will not work.

Example: A shape may be set with color because of the “Category” of the object, i.e. the shape may be Red because it is a critical object (as defined in one of its properties).

Aligning Shapes

Object shapes in the Web Modeler editor can be aligned using Align Nodes placed on the toolbar.

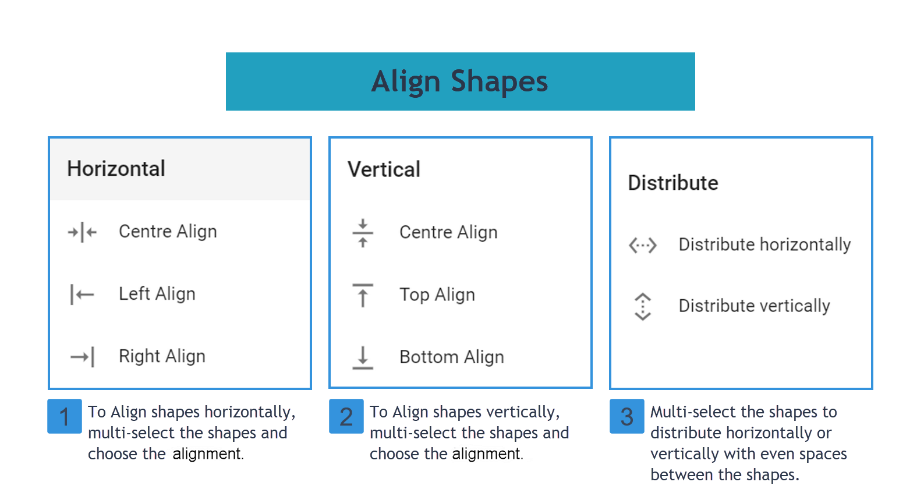

Object shapes can be aligned to the Left, Right, and Center horizontally, and also Top, Bottom, and Center vertically, which can also be evenly Distributed Horizontally or Vertically.

Resizing Shapes to match others

In the Web Modeler Editor, the object shape can be adjusted to the height and width of the other shape using Resize Nodes.



Move Shapes from Back and Front

In the diagram, if one shape is put on top of another, it may conceal the other.

Move To Back and Move To Front buttons help to show/Hide the object shape.



Text Formatting and Fonts

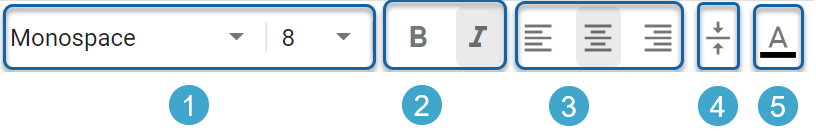

The Title of Object shapes can be formatted according to:

1. Font and its Font Size

2. Text in Bold, and Italic

3. Text alignment to Left, Center, and Right.

4. Vertical Alignment.

5. Text Color.

Some shapes may have Region shapes and Region formatting which overrides these styles such that the style options will not work.

Example: A shape may use a different property for the Title, that is defined in a region. This region’s style cannot be overridden by Web Modeler.



General Operations in Web Modeler

General Operations in Web Modeler

Options that are generally available for any diagram in the canvas are:

1. Duplicate Draft

2. Publish Diagram

3. Save Diagram

4. Download Diagram

Duplicate Draft

To duplicate the working draft of the diagram, click on Duplicate Draft on the toolbar.

By doing this, a copy of the draft will be created, and you will be taken immediately to the draft diagram. It will also be available in the Web Modeler Home.

The draft diagram will be associated with the originally published diagram, and on publishing will replace the same published diagram.

To create a separate published diagram, you should duplicate the published diagram instead.

Publish Diagram

To publish the diagram, click on Publish Diagram icon on the toolbar.

Before proceeding to Publish the diagram, make sure you don’t have any incomplete items in To-Do list. Once published, the draft diagram will be deleted, and the published diagram will be available on the Evolve site and in Modeler.

Save Diagram

To save the diagram, click on Save Diagram on the toolbar.

Although drafts are continuously saved to a secondary storage, saving your draft diagram ensures it is kept in your Evolve database and can be backed up with your main database backup.

Download Diagram

To download the diagram in the form of an image to your machine, click on Download Diagram on the toolbar.

Working with Connector Lines

Working with Connector Lines

The lines which associate the two objects in the diagram are called Connector Lines.

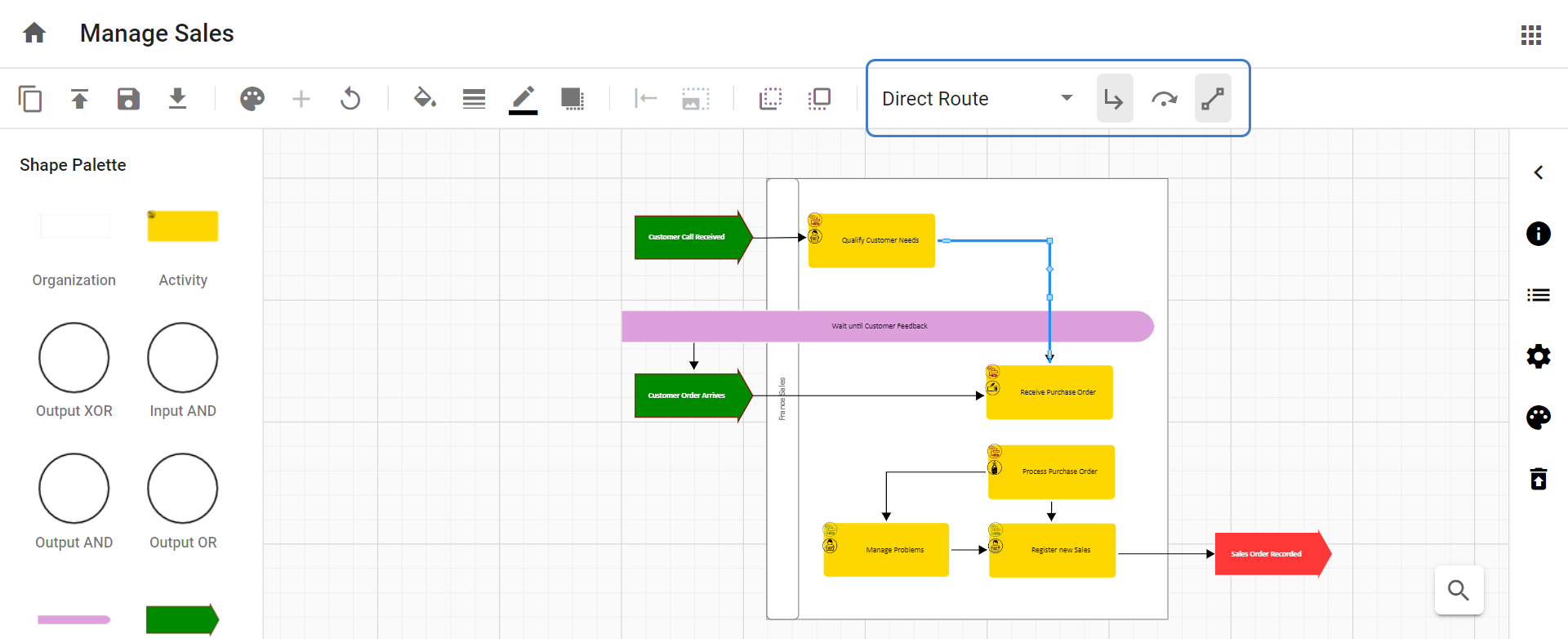

On Selecting the line, options for connector lines are shown on the toolbar.

Lines can be applied in two ways:

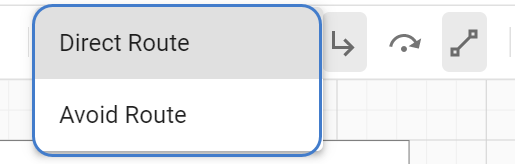

1. Direct Route – connects the objects using the shortest path.

2. Avoid Route – connects the objects avoiding the other objects in the diagram structure.

Lines are of three types are available to connect the objects:

          1. Orthogonal Lines – Orthogonal Lines are when the line appears with right angles in order to           connect the two objects when it cannot be drawn horizontally           or vertically.

This line is available only under Direct Route and will be disabled for Avoid Route.



Orthogonal Off

Orthogonal On



          2. Jump Lines – Jump Lines are when one connecting line passes over another, and it appears           with an arc over it.

This button are used in conjunction with the orthogonal lines button. If an orthogonal line is off for a particular line then the jump line button is disabled.

Jump is a property of an individual line, so if the lines cross and neither have the jump property then they look like straight lines passing through one another. Jump lines will be seen if both lines have jump property.

          3. Lock/Unlock Link Port – Link Ports can be Locked or Unlocked. To lock them, either press the button or move the connection point (port) of the line, around                     the shape. When you select a location to port the line to the shape, it will become locked. If you want the diagrammer to automatically reposition the port, select the           line, and press the unlock button, to release the lock.

Locking the link ports helps to keep the specific connection point when the shapes are moved around the canvas.
