ControlPoint 8.8.1 - for Office 365 Administration Guide

Preface The ControlPoint Configuration Site Managing Your Farm List Managing Your ControlPoint License Updating the ControlPoint Scheduler Windows Job Setting Up ControlPoint Services Using Discovery to Collect Information for the ControlPoint Database Cache Using Sensitive Content Manager Services Preparing Your Environment for Using ControlPoint Sentinel Registering and Re-registering the ControlPoint Online App for Modern Authentication Running ControlPoint Online Operations Using PowerShell Modifying ControlPoint Configuration Settings
Changing Default Settings for Actions and Analyses Changing Default Settings to Improve Application Performance Changing Settings to Improve Discovery Performance Changing Default Settings for Navigation Changing Trace Switch Logging Levels Changing Default Settings for Compliance Managing Site Provisioning Settings Setting Preferences for the ControlPoint Scheduler Changing Settings for Anomalous Activity Detection Miscellaneous and Custom Configuration Settings Special-Purpose Configuration Settings ControlPoint Online-Specific Settings
Troubleshooting

Loading the ControlPoint Online cmdlets

The ControlPoint snap-in contains the cmdlets needed to run a ControlPoint action.

You can either:

·load the snap-in every time you open PowerShell, or

·add the snap-in to your PowerShell profile so it will automatically load the cmdlets whenever PowerShell opens.

Refer to the msdn article on Windows PowerShell Profiles for details on creating a PowerShell profile.

Loading the ControlPoint Online snap-in

NOTE:  These are the Windows default directories.  The location of files may be different in your environment.

Line

Command

Description

1

Set-Alias install util C:Windows\Microsoft.NET\Framework64\
v4.0.30319\InstallUtil.exe

Maps an alias to an install utility that ships with the .NET Framework.

2

Change to the following directory:

C:\Program Files\Metalogix\ControlPoint Online\Powershell\



then add the snap-in by adding Add-PSSnapin xcsnapin;

Navigates to the directory containing the xcPowerShell.dll file that contains the ControlPoint Online cmdlets.

3

installutil xcPowerShell.dll

Uses the install utility to load xcPowerShell.dll into Powershell

4

Add-PSSnapin xcSnapin

Adds the snap-in containing all of the ControlPoint Online cmdlets.

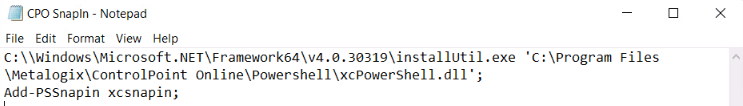

Below is an example of the lines of text above in the PowerShell profile.

ControlPoint Online PS Profile

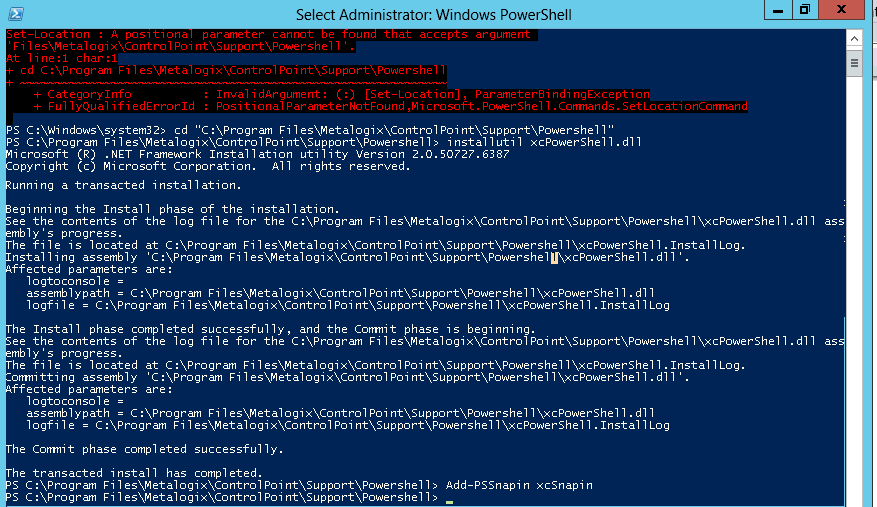

Below is an example of a PowerShell session with the ControlPoint Cmdlets successfully loaded.

PowerShell Loaded Cmdlets

Running Operations from Saved Xml Instructions

To run a ControlPoint Online operation from saved xml instructions:

1Open a PowerShell session.

2Load the ControlPoint Online Snap-in.

3Run the following cmdlet:

Execute-Xml -filepath <path to xml file> -reportpath <path to analysis output>



NOTE: -reportpath applies only to analyses (not actions) and may be a .pdf, .csv, or .xlsx file.



EXAMPLES:

Site Permissions by Site analysis

Execute-Xml -filepath 'C:\SavedInstructions\Reports\Site Permissions by Site.xml' -reportpath 'C:\SavedInstructions\Output\Site Permissions by Site.pdf'



Set User Direct Permissins action

Execute-Xml -filepath 'C: \SavedInstructions\Actions\Set_User_Direct_Permissions.xml

Modifying ControlPoint Configuration Settings

ControlPoint Application Administrators can modify a number of ControlPoint configuration settings, including

·elements of the user interface

·environmental settings that can be "fine-tuned" to improve performance, and

·default security settings.

ControlPoint Application settings are modified via the ControlPoint Configuration Settings Manager page.

NOTE:  If you first installed ControlPoint prior to version 6.0 and prefer to modify settings using the ControlPoint Configuration Site's ControlPoint Settings list, you may continue to do so.  Be aware, however, that if you make changes directly to the list you will have to restart the application pool for the changes to take effect.

Configuration Settings That Apply to ControlPoint Online

All of the configuration settings that are relevant for ControlPoint Online are described in this section.  Settings that appear in the list but are not covered in this guide apply to the On Premises version of ControlPoint only.

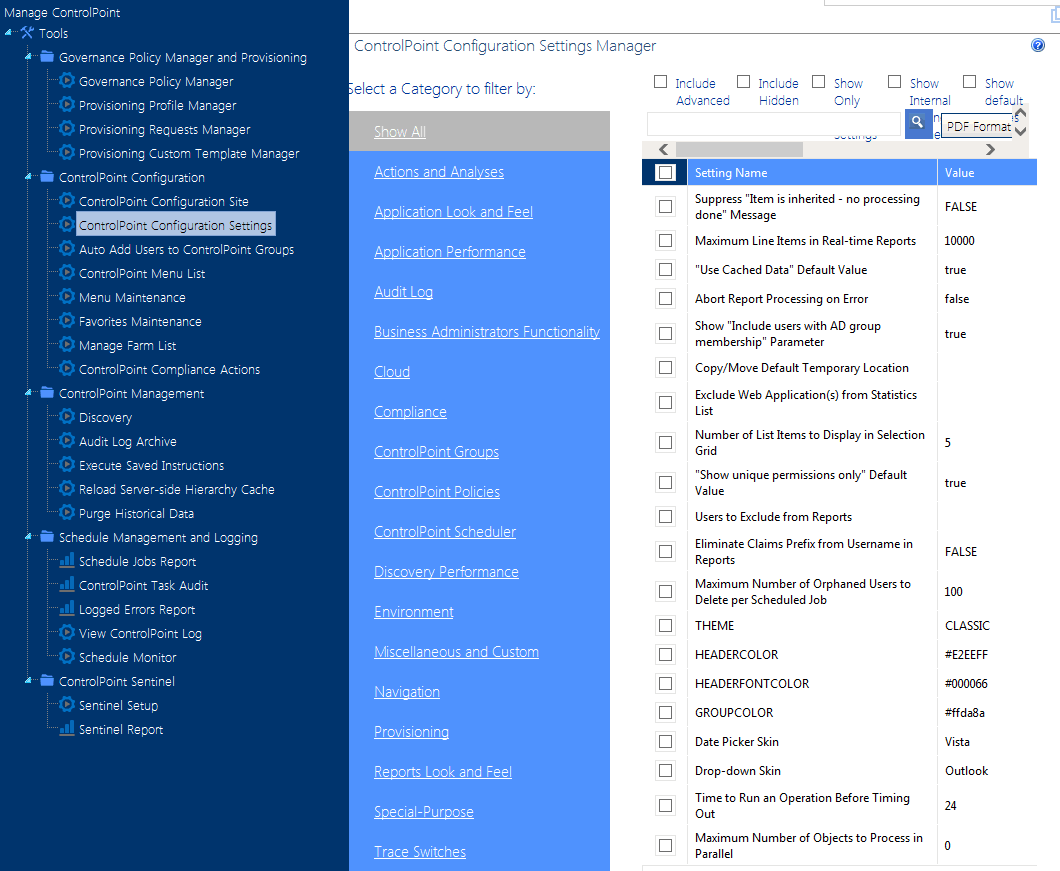

To access the ControlPoint Settings list:

From the Manage ControlPoint panel, chose ControlPoint Configuration > ControlPoint Configuration Settings.

Edit ControlPoint Setting LEFT NAV

Permissions for this list are inherited from the ControlPoint Configuration site.  Therefore, members of ControlPoint Application Administrators group have full control access and can modify settings.

Members of the Administrators group have read-access to the list, and therefore can view, but not modify, settings.

NOTE: ControlPoint Settings can also be edited via the ControlPoint Configuration Site - ControlPoint Settings list.  ControlPoint Application Administrators may prefer this option if they have been using ControlPoint prior to version 6.0 and are accustomed to editing settings this way.

Setting Classifications:

ControlPoint Settings fall into the following classifications:

Basic - Generally the most commonly-configured settings,.  Only Basic settings display in the ControlPoint Configuration Settings Manager page by default.

Advanced - Less commonly-used settings that you may want to modify to further customize ControlPoint to meet particular needs of your SharePoint environment or users. [

Created - Special-purpose settings that you can add to the ControlPoint Settings list if needed.  Generally, these settings should only be configured under special circumstances and with guidance from Quest Support.

Filtering the ControlPoint Configuration Settings List

You can filter the ControlPoint Settings list using one or more of the following options:

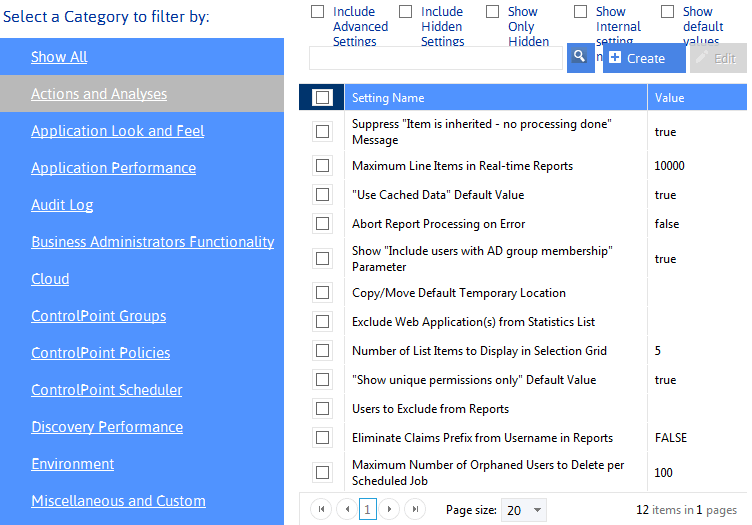

·By choosing a Category

ControlPoint Settings CATEGORY

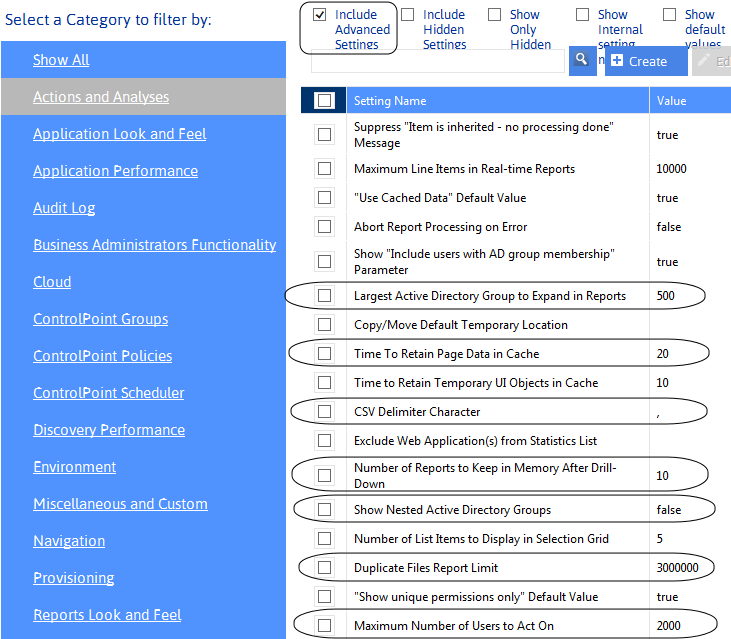

·By choosing to Include Advanced Settings

ControlPoint Settings INCLUDE ADVANCED

·If special-purpose settings have been created:

§Include Created Settings, or

§Show Only Created Settings

TIP:  You can view created settings Include Created Settings and selecting the Special Purpose category.

Showing Additional  Columns and Sorting by Column

By default, the ControlPoint Configuration Settings list displays the Setting Name and current Value, but you can also choose to Show Internal setting name and/or Show default values.  You can sort on any column.

For example, if you are a long-time ControlPoint user and are already familiar with internal setting names, you can sort by this column.

Config Setting SORT COLUMN

To search for a ControlPoint Setting by Setting Name:

Enter a full or partial text string in the search box, then click the magnifying glass icon Magnifying Glass icon.

ControlPoint Settings SEARCH

To edit a ControlPoint Setting:

1Check the box to the left of the setting that you want to edit.

NOTE: You can edit only one setting at a time.  If you select more than one, the [Edit] button becomes disabled.

2Click [Edit].

3Update the Value field as appropriate.  (Descriptions of configurable settings, along with guidelines for changing parameter values, follow.)

ControlPoint Setting EDIT

4Click [Update].

Changes to ControlPoint Settings take effect immediately.

Deleting ControlPoint Settings

Only Created settings can be deleted.

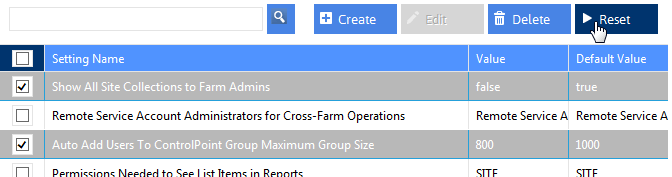

To restore ControlPoint Setting default values:

1Check the box to the left of each setting for which you want to restore the default value.

NOTE:  For this operation, you may select multiple settings.

2Click [Reset].

Config Setting RESTORE DEFAULT



Changing Default Settings for Actions and Analyses

These configuration settings display in the ControlPoint Settings list under the category Actions and Analyses.
