Established	The total number of TCP/IP connections to this machine in the ESTABLISHED state.
TIME_WAIT	The total number of TCP/IP connections to this machine in the TIME_WAIT state, where the local socket has closed, and it is waiting for the remote end to signal that it has done the same.
CLOSE_WAIT	The total number of TCP/IP connections to this machine in the CLOSE_WAIT state, where the remote end of the connection has shut down, and it is waiting for the local end to do the same.

NIC Bandwidth

Packets	The rate of network packets being received and sent for the network card on this host that has the highest rate of packet transfers.
Errors	The rate of erroneous network packets being received and sent for the network card that has the highest rate of packet transfers.
Packets	If more than one network card is installed on this host, this is the rate of network packets being received and sent for the network card that has the second-highest rate of packet transfers.
Errors	If more than one network card is installed on this host, this is the rate of erroneous network packets being received and sent for the network card that has the second-highest rate of packet transfers.

Data flows between the Network panel and CPU panel

Network (Network to CPU)	Rate of incoming network data The incoming rate of data to the server. Note: Spotlight contributes to the data traffic as part of its diagnostic activities.
Network (CPU to Network)	Rate of outgoing network data The outgoing rate of data from the server. Note: Spotlight contributes to the data traffic as part of its diagnostic activities.
Network Errors (Network to CPU)	Rate of incoming network errors The rate at which errors are received from the network.
Network Errors (CPU to Network)	Rate of outgoing network errors The rate at which errors are sent from the machine to the network.

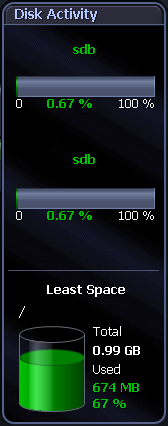

Disk Activity Panel

The Disk Activity panel shows information on disk usage:

Activity Guages

Activity Gauge (1)	The percentage activity of the disk with the highest read/write rates.
Activity Gauge (2)	The percentage activity of the disk with the second-highest read/write rates.

Least Space

/name	By default, this is the mount point of the disk that has the least amount of free space, and that is not already 100% full. (Because of this, no CD-ROM devices are shown.) You can configure this control to display the total and used space on ANY available disk on the system. To do so, right-click the control and choose Disk Options from the shortcut menu.
Total	The total amount of free space that has been allocated to this disk.
Used (MB/GB)	The amount of disk space that is currently being used by this disk.
Used (%)	The amount of disk space that is currently being used by this disk, expressed as a percentage.

Data flows between the Memory panel and the Disk Activity panel

Disk I/O (Memory to Disk Activity)	The number of writes that the system makes to disk per second.
Disk I/O (Disk Activity to Memory)	The number of reads that the system makes from disk per second.

Alarms

Spotlight

Spotlight is powerful diagnostic and problem-resolution tool for Unix and Linux operating systems. Its unique user interface provides you with an intuitive, visual representation of the activity on your host machine.

For information on Spotlight on Unix, see these sections

Section	Description
Background Information	Introductory material to Spotlight on Unix.
Connect to a Unix System	Create / Modify / Delete connections to Unix systems.
Home Page	The Spotlight home page shows the flow of information and commands between various sub-components and the size and status of internal resources such as processes, disk files and memory structures.
Alarms	Spotlight alerts you to problems with your system by issuing an alarm. You can configure Spotlight in the level of severity that constitutes an alarm, to disable an alarm, and the actions Spotlight takes on raising the alarm.
Drilldowns	When you have isolated a problem, you can display a drilldown page, whose charts and tables provide a detailed breakdown of the underlying statistics.
View \| Options	Customize Spotlight.
Troubleshooting	Solve problems using Spotlight.

For information on using Spotlight applications See

Spotlight Basics

Spotlight Alarms

Spotlight alerts you to problems with your system by issuing an alarm. You can configure Spotlight in the level of severity that constitutes an alarm, to disable an alarm, and the actions Spotlight takes on raising the alarm.

When an alarm is raised Spotlight performs one or more of the following actions:

Changes the color or intensity of relevant components.
Gives audible warnings.
Sends email notifications.

Actions you can take on an alarm being raised include:

View details of the statistics that caused the alarm in a Spotlight drilldown page. Spotlight Drilldowns
View the Spotlight online help.
View details of the alarm in the Spotlight Alarm Log drilldown.
Snooze the alarm.
Save the alarm details.
Filter the list of alarms.

Following are the alarms specific to Spotlight.
