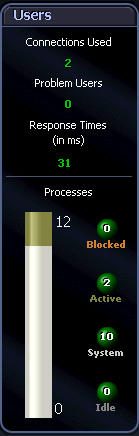

Users Panel
|
|
The Users panel displays the following information: |
Host Panel
|
|
This value displays the percentage of time the Adaptive Server's host CPU was performing tasks. Clicking this component will drill down to the associated Spotlight on Windows or Spotlight on UNIX plugins. These plugins will provide additional information concerning the host's CPU usage. |
Network Packets Sent/Received
|
|
This section of the Home Page displays the number of network packets sent by the ASE and received by the ASE. |

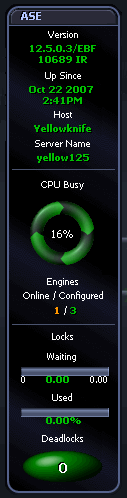

ASE Panel
|
|
The ASE panel displays information about the following:
|
