Quest VROOM 1.3 - User Guide

Repositories table

The Repositories table shows a list of central locations in which backup snapshot data captured from your monitored Veeam environment is stored and managed.


Table 8. Description of the Repositories table
Data displayed
•
Repository Name. Shows the display name of repository.

•
Backup Server. Shows the Backup Server in which the repository is stored and managed.

•
Capacity. Shows the total capacity on the storage.

•
Free. Shows the free capacity on the storage.





Veeam Infrastructure Tab

The Veeam Infrastructure view of the Protection dashboard shows the infrastructure of the service scoped Veeam Backup servers. The Veeam Infrastructure view includes the following two tables:

•
Backup Servers: For more information, see Backup Servers table.
•
Veeam Protected VMs: For more information, see Veeam Protected VMs table.

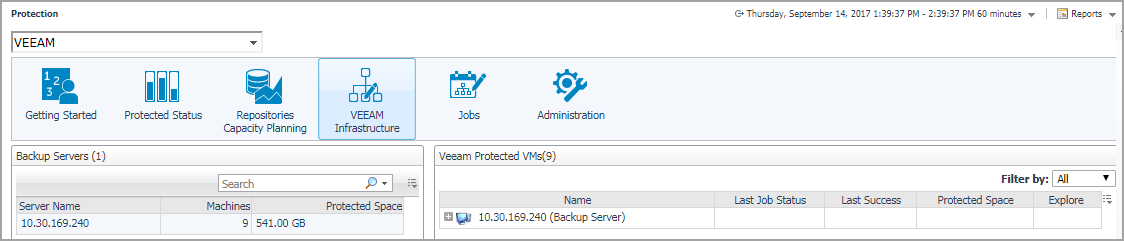

Figure 12. Veeam Infrastructure view

To access the Veeam Infrastructure view:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Protection.
The Protection dashboard opens.
4
Use the Group selector located at the top of the dashboard to select the protection environment that you want to monitor.
5
On the menu bar, click the Veeam Infrastructure tab.
The Veeam Infrastructure view appears at the bottom of the Protection dashboard.

Backup Servers table

The Backup Servers table shows a list of core servers that exist in the monitored Veeam environment.

Table 9. Description of the Backup Servers table
Data displayed
•
Server Name. Shows the name of Veeam Backup Server.

•
Machines. Shows the amount of machines in this Veeam Backup Server.

•
Protected Spaces. Indicates the amount of storage space protected by this Veeam Backup Server.

Veeam Protected VMs table

The Veeam Protected VMs table shows a list of agents that exist in the monitored Veeam environment.



Table 10. Description of the Veeam Protected VMs table
Data displayed
•
Name. Shows the name of Veeam Backup Server or cluster.

•
Last Job Status. Indicates whether the last job is Success, Warning, or Failed

•
Last Success. Indicates the time of last success job.

•
Protected Space. Indicates the amount of protected storage space.
Where to go next

Drill down on:


•
Explore. Click to navigate to the VMware Explorer dashboard. For more information, refer to the Foglight for VMware User and Reference Guide.
