NetVault 12.1 - Administration Guide

Introduction Getting started Configuring clients Managing catalog search Configuring storage devices Backing up data Managing policies Restoring data Managing NetVault Backup dashboard Managing jobs Monitoring logs Managing storage devices
Monitoring device activity Managing disk-based storage devices in list view Managing disk-based storage devices in tree view Managing the Snapshot Array Manager Managing tape libraries in list view Managing tape libraries in tree view Managing tape drives in list view Managing tape drives in tree view Adding shared devices
Managing storage media Managing user and group accounts Monitoring events and configuring notifications Reporting in NetVault Backup Working with client clusters Configuring default settings for NetVault Backup
About configuring default settings Configuring encryption settings Configuring plug-in options Configuring default settings for post-scripts Configuring default settings for Verify Plug-in Configuring Deployment Manager Settings Configuring Job Manager settings Configuring Logging Daemon settings Configuring Media Manager settings Configuring Network Manager settings Configuring Process Manager settings Configuring RAS device settings Configuring Schedule Manager settings Configuring Web Service settings Configuring Auditor Daemon settings Configuring firewall settings Configuring general settings Configuring security settings Synchronizing NetVault Time Configuring default settings for global notification methods Configuring the reporting utility Configuring NetVault Backup WebUI default settings Configuring NetVault Backup to use a specific VSS provider Configuring default settings using Txtconfig
Diagnostic tracing Managing diagnostic data Using the deviceconfig utility NetVault Backup processes Environment variables Network ports used by NetVault Backup Troubleshooting

Creating restore jobs

You can use the restore job wizard to create and submit restore jobs. The wizard can be accessed from the Create Restore Job link in the Navigation pane.

To create a restore job:
1
In the Navigation pane, click Create Restore Job.
On the Create Restore Job — Choose Saveset page, the saveset table provides a list of available savesets.

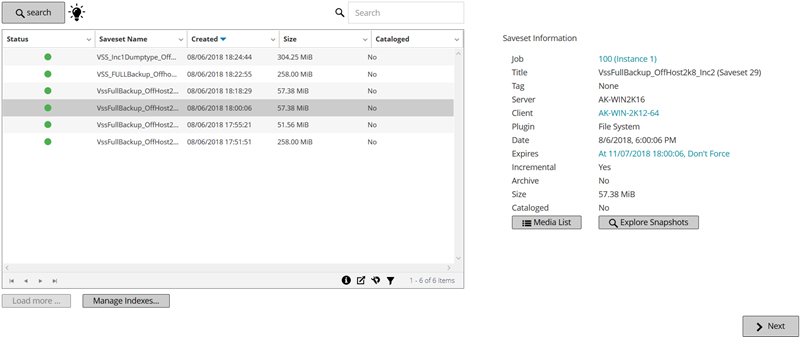

Figure 19. Create Restore Job — Choose Saveset page

The table shows the saveset status, saveset name (Job Title and Saveset ID), creation date and time, saveset size, and cataloged status.
The saveset status is indicated using the following icons.

Table 56. Saveset status icons
Icon
Description

Saveset is online (all segments are online).

Saveset is partially online (some segments are online).

Saveset is offline (all segments are offline).

The saveset list is sorted by creation date (newest to oldest). You can sort the list by one or more columns, as required. The arrowhead next to the column name indicates the sort order. For more information, see Sorting records in NetVault Backup WebUI.
2
The Create Restore Job — Choose Saveset page loads a maximum of 5000 records initially. The total number of records fetched is displayed at the lower-right corner of the table.
You can click Load more to load the next set of records, if available. Each load action fetches a maximum of 5000 records. This button is disabled if there are no more records to load.
To set the filter options (For more information on table filter options for Create Restore Job — Choose Saveset page, see Table 13), view the page size setting, sorting order in the table, export the records, or edit table settings, click the icons at the lower- right corner of the table. For more information, see Customizing tables in NetVault Backup WebUI.
You can use the Search option to filter the table data and quickly find entries that contain the specified string in any column values. You can also include wildcards (“?” or “*”) in the search filter string.
To manage the selected snapshot, click Explore Snapshots. Explore snapshot allows you to mount, unmount, and set expiry for a snapshot. For more information, see, Managing Snapshots
3
Select the saveset that you want to use, and click Next.

*
NOTE: If the online backup index is unavailable for the selected saveset, the Confirm load dialog box is displayed. To load the index from the backup media, click OK, and then in the Load Index dialog box, type or select the number of days you want to store the index in the NetVault Database.
When you select a saveset, the following details are displayed in the Saveset Information area: job ID number, job title, tag, server name, client name, plug-in name, saveset date and time, retirement setting, Incremental Backup or not, archive or not, saveset size, and cataloged status.
4
On the Create Selection Set page, select the items that you want to restore.
The data items that are available for selection depend on the plug-in in use. For more information about selecting data for restores, see the relevant plug‑in user's guide.
5
Click Edit Plugin Options, and configure the options that you want to use.
The restore options that are available to a job depend on the plug-in in use. For more information about these options, see the relevant plug-in user's guide.
Click Next.
6
On the Create Restore Job page, specify a name for the job. Assign a descriptive name that allows you to easily identify the job for monitoring its progress.
The job name can contain alphanumeric and non-alphanumeric characters, but it cannot contain non-Latin characters. There is no length restriction. However, a maximum of 40 characters is recommended on all platforms.
7
In the Target Client list, select the restore target. To restore data to the same client (from which data was backed up), use the default setting.
To restore data to an alternate client, select the target client in the list. Alternatively, click Choose. In the Choose the Target Client dialog box, select the client, and click OK.
8
In the Schedule list, select an existing Schedule Set, or click Create New, and configure the schedule type and schedule method. For more information. For more information, see Creating Schedule Sets.
The predefined set “Immediate” is selected by default. To run the job as soon as it is submitted, use this set.
9
In the Source Options list, select an existing Source Set, or click Create New, and configure the source device options. For more information, see Creating Source Sets for restore jobs.
The predefined set “Any Device” is selected by default. To select any available device for the job, use this set.
10
In the Advanced Options list, select an existing Restore Advanced Options Set, or click Create New, and configure the options that you want to use. For more information, see Creating Restore Advanced Options Sets.
The predefined set “Restore from selected backup” is selected by default.

*
NOTE: To create a restore job, you can understand more about the sets by previewing the set information. To preview the set summary, move the pointer over the fields on Create Restore Job page.
11
Click Submit to submit the job for scheduling.
You can monitor the job progress from the Job Status page and view the logs from the View Logs page. For more information, see Viewing job activity and Viewing log messages.

Restoring data using an existing Restore Selection Set

You can use the following procedure to restore data using an existing Restore Selection Set. This procedure is useful if a user role is not granted the “Jobs — Administer backup/restore sets” privilege, which is required to create or edit a Restore Selection Set.

To restore data using an existing Restore Selection Set:
1
In the Navigation pane, click Manage Sets.
2
In the Set Type list, select Restore Selection.
3
In the list of available sets, select the set that you want to use, and click Edit.
4
On the Edit Selection Set page, click Next.
-OR-
On the Edit Selection Set page, modify the data selections, set name, or plug-in option.
Click Next. In the Confirm overwrite dialog box, click OK to overwrite the existing set.

*
NOTE: To preview the selection set summary and plug-in options set summary, move the pointer over the information icons on Edit Selection Set page.
5
Complete Step 6 through Step 11 in the section Creating restore jobs.

Searching for files in savesets

The Search option on the Create Restore Job — Choose Saveset page allows you to find specific files or data items without opening any savesets or browsing through their contents. You can use filenames or regular expressions to find the data items that you want to restore.

To configure or enable the catalog search, click the bulb icon shown near Search button on the Create Restore Job — Choose Saveset page.

To search for data items in savesets:
1
On the Create Restore Job — Choose Saveset page, click Search.
2
In the Search for files in savesets dialog box, configure the following options:
•
Search String: Type the search string.
•
Regular expression search: To use POSIX (Portable Operating System Interface for Unix) regular expressions in the Search String box, select this check box.
The catalog search supports the regular expression syntax used by Elasticsearch. For more information see https://www.elastic.co/guide/en/elasticsearch/reference/current/query-dsl-regexp-query.html
•
Use legacy search method: This check box is displayed if both cataloged and non-cataloged savesets are included in the search.
If only non-cataloged savesets are included in the search (or if “Use legacy search method” option is selected), the legacy search is used.
If only cataloged savesets are included in the search (or if “Use legacy search method” option is not selected), the catalog search is used.
3
To search the data items in one or more specific savesets, select the desired saveset (s) and click Search. If you do not select any saveset, then all savesets are included in the search. On the Search Results page, you can view the specified files or data items. The following search results page is displayed when catalog search is configured and enabled on your NetVault Backup system.

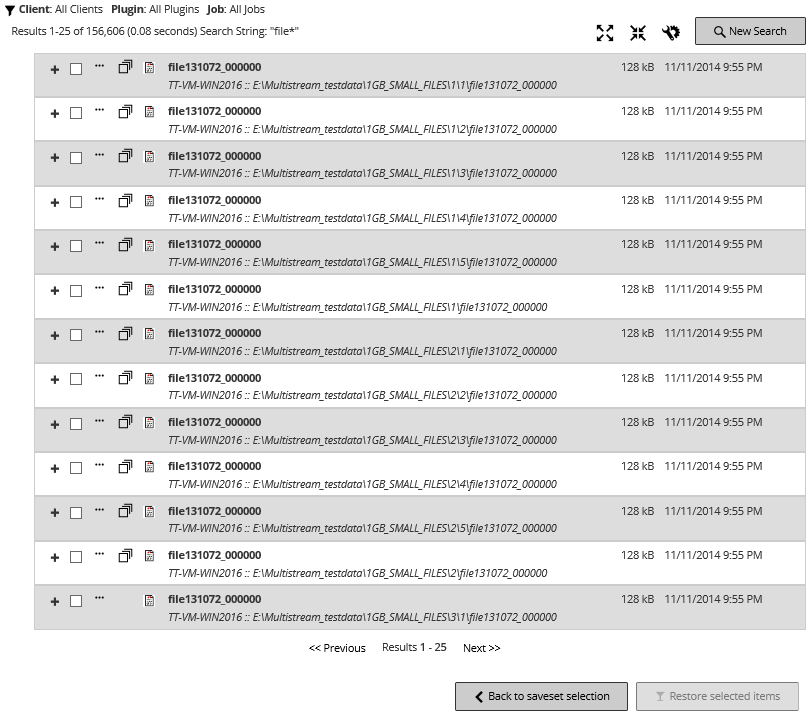

Figure 20. Search Results with catalog search enabled
The following information about the search results is displayed:
•
Filter icon: To filter the records displayed in the search results table, click this icon. For more information on filter options, see Table 14.
•
‘Search filters’ drawer is displayed on the right- side of the page. Set the following filter options and click Apply.
•
To clear the filter settings, click Clear.
•
To edit the applied filters, clear the filter settings, and then apply new filter settings.
•
To close the ‘Search filters’ drawer without editing or setting the filter options, click Cancel.
•
The total number of search results and number of records shown on the page may not be equal because, the search results shows the number of occurrences however, the rows shows the number of non-identical items found. If copies of an item are found, then the row displays the copy icon. To view the copies of the files and select for restore, click the copy icon. Copies are defined as items with identical machine, path, name, size, and modified time.
•
Expand icon: To expand all result items, click the expand icon shown on top of the results table.
•
Collapse icon: To collapse all result items, click the collapse icon shown on top of the results table.
•
Settings icon: To set the number of search results per page, click the settings icon. ‘Settings’ drawer is displayed on the right- side of the page. Type or select the value and click OK. By default, the page displays 25 records. You can view a minimum 10 and maximum 100 records on the Search Results page.
•
New Search button: To search the data items in the selected saveset, click New Search. In the Search for files in savesets dialog box, configure the following options and click Search:
•
Search String: Type the search string.
•
Regular expression search: To use POSIX (Portable Operating System Interface for Unix) regular expressions in the Search String box, select this check box.
•
To expand an item and view the file metadata, such as plug-in, job name, job ID, saveset ID, and backup date and time, click the corresponding plus icon.
•
To view the media information for a saveset, click the corresponding context- menu icon and then click ‘show media list for the saveset’. Status (online or offline) of the storage media and other information is displayed in the dialog box. To close the dialog box, click Close.
•
Copy icon is displayed if the corresponding result is present in multiple savesets.
•
Filename
•
Filepath
•
Filesize
•
Last modified date and time
4
Select the items you want to restore. You can only restore items from one saveset. Click Restore selected items.
5
Complete Step 4 through Step 11 in the section Creating restore jobs.

Viewing media list

The Media List option on the Create Restore Job — Choose Saveset page lets you view information about the media items used to store a backup. You can view details about the data segments and index segments for a backup.

To view the media details for a saveset:
1
On the Create Restore Job — Choose Saveset page, select the applicable saveset.
2
In the Saveset Information area, click Media List.
3
In the dialog box that appears, you can view the following details:
•
Backup size: This area shows the total size of the saveset in number of bytes
•
Data segment table: This table shows information about the media items that contain the data segments. You can view the following details: media label, media group label, stream ID, starting byte number, ending byte number, and media location
•
Index segment table: This table shows information about the media items that contain the index segments. You can view the media label and media location.
4
Click Close to close the dialog box.
