Foglight Transaction Recorder 5.6.13 - Recorder User Guide

Overview of Foglight synthetic monitoring Use the Foglight Transaction Recorder Create and upload Foglight Transaction Recorder scripts View Foglight Transaction Recorder results Settings How Do I... Appendix: Best practices Appendix: Troubleshoot the Foglight Transaction Recorder Appendix: API for FTR Timer Usage

Results

The Results tab shows the status and results of each instruction during the execution of the script.

Figure 33. Results window - Results tab

The following provides a description of individual columns:

•
Name—instruction name.
•
Status—indicator of whether an instruction is running, waiting to run, or completed.
•
Errors—sum of errors encountered during the execution of the instruction.
•
Files­—number of files run.
•
Bytes—sum of total network activity that occurred during the execution of the instruction.
•
Response Time—time required by the instruction to execute from a monitoring perspective.
•
Elapsed Time—time required by the instruction to execute, including overhead. This is typically greater than the response time.

Error

The Errors Tab displays error, warning, and informational messages encountered during the execution of a script.

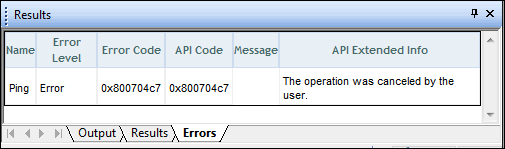

Figure 34. Results window - Error tab

The following provides a description of individual columns.

•
Name—name of the instruction that generated the error.
•
Error Level—level of the error being generated.
•
Error Code—Error code in hexadecimal.
•
API Code—Application Programming Interface code in hexadecimal.
•
Message—Message generated when error occurred.
•
API Extended Info—An extended explanation of the error.

Favorites window

The Favorites Window mirrors the bookmarks created in Internet Explorer. These bookmarks can be used instead of typing the URL during the recording process. The Add and Organize buttons work exactly as they would in Internet Explorer. The Refresh button synchronizes the Favorites list with your current favorites in Internet Explorer. This is done automatically each time you launch the Recorder.

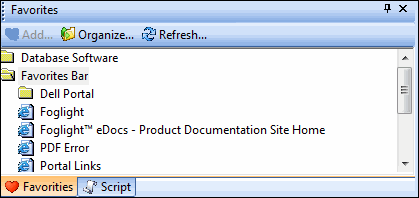

Figure 35. Favorites window

Create, publish scripts, and publish to Foglight

Create, publish scripts, and publish to Foglight

During the recording process, each click or action you make in the Main Window creates an instruction. Instructions are grouped into a script, assigned a name, and saved with an .ftr extension. Scripts are then published to a Foglight server and subsequently downloaded by Transaction Player agents where they are used for monitoring business processes.

Creating scripts with the Foglight Transaction Recorder and uploading them to the Foglight Management Server consist of the following steps:

1
Record scripts
2
Configure scripts (Insert transactions and validations)
3
Script playback
4
Analyze script results
5
Publish scripts to Foglight
