Locating SAN Topology Objects in Foglight for Storage Management



NOTE: You require the Foglight for Storage Management role Administrator to access the Configuration > Data menu.

You can explore directly the metrics and data captured for monitored storage devices and their components. Data is displayed as a hierarchy of objects.

To locate storage topology objects:

1	On the navigation panel, under Dashboards, click Configuration > Data.

2	Expand the Storage & SAN branch.

3	Select a device type and then a device.

4	Select a metric to view details in the Property Viewer.

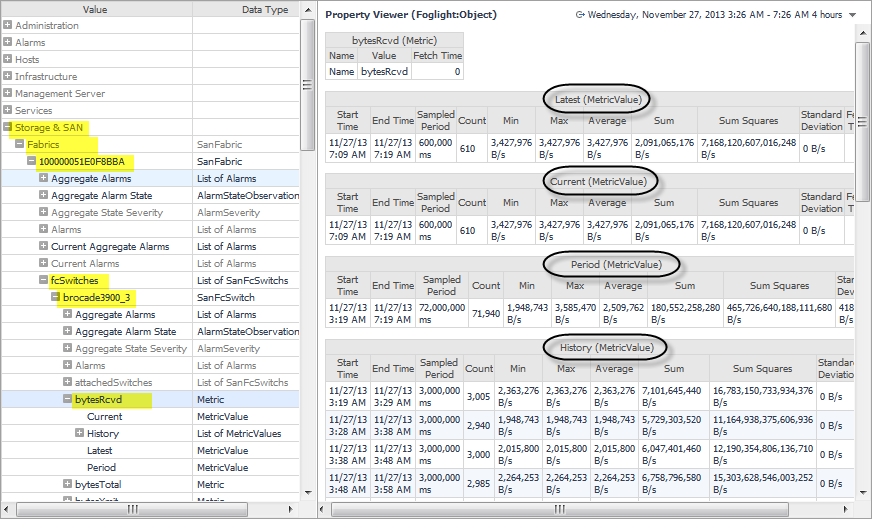

For example, the following image shows a selected FC Switch (brocade3900_3). The Data Rate metric, which is called bytesRcvd, is selected and displayed in the Property Viewer. The Property Viewer contains tables showing all collected values for the selected metric. For more information, see Understanding Metric Data in Charts and Tables.

Figure 20. Property Viewer



Appendix: Collection Target Support Matrix

Appendix: Collection Target Support Matrix

The following configurations of FC Switches, Filers, and Storage Arrays are supported on the Foglight for Storage Management:

Table 29. Support matrix

		Supported platforms	Supported latest GA
FC Switches	Brocade	Brocade Network Advisor (BNA)	BNA 14.0.1
	Cisco	MDS 9000 up to MDS 9700 Series	N/A
		Nexus 5000 Series	N/A
Filers	NetApp	NetApp Filer 7-Mode	DATA ONTAP 7.X up to 8.1.1
		NetApp Filer Cluster Mode (C-Mode) NOTE: Metro Cluster is not supported.	DATA ONTAP 8.X up to 9.6
Storage Arrays	Dell Compellent	Dell Enterprise Manager (EM)	EM 2015 R3 (Build 15.3.1.300)
		Dell Storage Manager (DSM)	DSM 2018 R1
	Dell EqualLogic	PS Series group NOTE: FS7600 series NAS appliance is not supported.	Firmware 6.0
	EMC CLARiiON/VNX CLI	EMC NaviSphere Command Line Interface (CLI)	NaviSphere CLI 7.33.9.1
	EMC CLARiiON/VNX/VMAX SMIS	EMC SMI-S Provider NOTE: VNXe series is not supported.
		CLARiiON CX4 CLARiiON AX4 CLARiiON AX150 VNX ALL	• Supported latest solutions Enabler GA: 7.6.2 • Supported latest SMI-S GA: 4.6.2
		Symmetrix VMAX 10K Symmetrix VMAX 20K Symmetrix VMAX 40K	• Supported latest solutions Enabler GA: 8.3.0 • Supported latest SMI-S GA: 8.3
	EMC Isilon	EMC Isilon OneFS	Isilon OneFS version 7.2.1 Isilon OneFS version 8.0
	EMC VPLEX	EMC VPLEX Local and Metro	GeoSynchrony 6.0 and higher
	HDS AMS/USP/VSP	Hitachi Command Suite NOTE: HUS array is not supported.	HCS V8.5.1
	HP EVA	HP StorageWorks Command View	HP StorageWorks Command View EVA v9.04
	HP 3PAR	HP 3PAR InServ F400 HP 3PAR StoreServ 8000 HP 3PAR StoreServ 8400	N/A
Generic SMI-S Array	Dot Hill	Dothill Assured SAN 5720 (Seagate)	N/A
	EMC Unity	Unity 300/300F	N/A
		Unity 400/400F	N/A
		Unity 500/500F	N/A
		Unity 600/600F	N/A
		UnityVSA	N/A
	Fujitsu	Fujitsu ETERNUS DX200S3 and DX80S2	N/A
	HP	HP P2000 MSA and P2040 MSA	N/A
	Huawei	OceanStor V3 Series	V3R6 and later
		OceanStor V5 Series	V5R7 and later
		OceanStor Dorado	V3, V3R1, and V6 Series
	PureStorage	FA-420	N/A
	IBM	StoreWize v3700	N/A
	Lenovo	Lenovo DS4200	N/A



Online-Only Topics

Storage Environment Dashboard

Use this dashboard to identify poorly-performing devices, investigate alarms, and begin investigating the issues that are contributing to problems.

Getting started

•	Introducing the Storage Environment Dashboard

•	Reviewing the Status of All Devices

•	Assessing Storage Alarms

•	Understanding Status, Alarms, and Rules in Foglight for Storage Management

Topics by tab

•	Monitoring. Summary and Resource Information for each Collected Target:

•	Insights. Asking Questions About the Monitored Storage Environment, Starting a Troubleshooting Investigation, and Creating Storage Reports (displayed when users have the General Access role)

•	Storage Capacity. Monitoring Storage Capacity

•	Administration. Managing Data Collection, Rules, and Alarms (displayed when users have the Storage Administrator role)

•	Custom Rules. Managing Alarm Settings

•	Getting Started. For purchasing licenses only (displayed when users have the Storage Administrator role)

Monitoring tab topics by tile /quick view

•	Fabrics. Monitoring Fabrics

•	Storage Arrays. Monitoring Storage Arrays

•	Filers. Monitoring Filers

•	Virtualization. Investigating VPLEX Storage

Related topics

•	Assessing Connectivity and I/O Performance

Storage Environment Dashboard

Online-Only Topics

Use this dashboard to identify poorly-performing devices, investigate alarms, and begin investigating the issues that are contributing to problems.

Getting started

•	Introducing the Storage Environment Dashboard

•	Reviewing the Status of All Devices

•	Assessing Storage Alarms

•	Understanding Status, Alarms, and Rules in Foglight for Storage Management

Topics by tab

•	Monitoring. Summary and Resource Information for each Collected Target:

•	Insights. Asking Questions About the Monitored Storage Environment, Starting a Troubleshooting Investigation, and Creating Storage Reports (displayed when users have the General Access role)

•	Storage Capacity. Monitoring Storage Capacity

•	Administration. Managing Data Collection, Rules, and Alarms (displayed when users have the Storage Administrator role)

•	Custom Rules. Managing Alarm Settings

•	Getting Started. For purchasing licenses only (displayed when users have the Storage Administrator role)

Monitoring tab topics by tile /quick view

•	Fabrics. Monitoring Fabrics

•	Storage Arrays. Monitoring Storage Arrays

•	Filers. Monitoring Filers

•	Virtualization. Investigating VPLEX Storage

Related topics

•	Assessing Connectivity and I/O Performance
