Migrating Agents

The SQL Performance Investigator extension is only supported on Windows 64-bit. As a result, you may need to migrate SQL Server agents from an Agent Manager running on Linux to a Windows Agent Manager.

In addition, the migration tool allows you to perform resource balancing between the agent managers running SQL Server agents with and without the SQL PI extension installed.

1
Open the migration wizard by navigating to Dashboards > Databases > Support Dashboard > Databases Technical Support > Database Agents Migration > SQL Server.
6
Click Next to migrate the agents.
7
When migration has completed, click Finish to exit the Wizard.

About Monitoring Extensions

During the installation process you can choose to install and configure one or more of the monitoring extensions. The monitoring extensions provide a more in-depth analysis of the monitored instance and the environment it is running on, creating a whole and unified status.

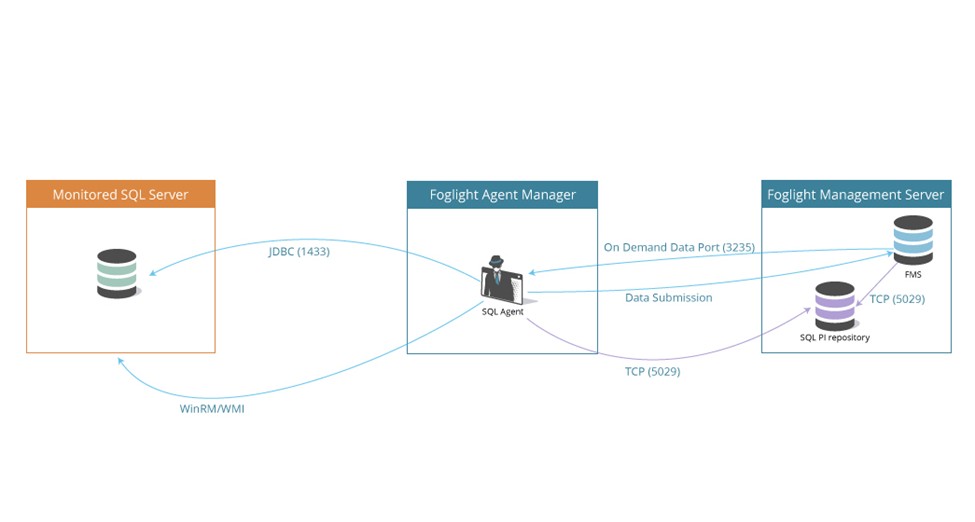

The communication architecture of Foglight for SQL Server is presented below.

SQL Performance Investigator allows you to rapidly identify bottlenecks, anomalies, and application trends by focusing on top resource consumers and providing multi-dimensional SQL domain drilldowns. SQL PI allows you to:

Monitoring the operating system allows you to identify resource consumption and provides a full view of the server health. An Infrastructure agent, which is created automatically as part of the monitoring process, monitors the operating system.

Monitoring the VMware system allows you to identify resource consumption and provides a full view of the data center and ESX health when the server is part of a VMware environment.

Installing and Monitoring a Single SQL Server Instance

Enabling the Foglight Management Server to monitor SQL Server instances requires the creation of the Foglight agents that monitor these instances and ensuring that these agents communicate properly with the Foglight Management Server.

Foglight for SQL Server provides a graphic, intuitive method for creating and configuring multiple agents, which can be used instead of Foglight’s default method for creating agents and editing their properties using the Agent Administration dashboard (see About the Foglight for SQL Server Agent in the Foglight for SQL Server Reference Guide). Foglight for SQL Server allows running a wizard that provides a common entry point for adding and discovering all database instances within a user-specified range, and then configuring these instances for monitoring.

1
2
Click the SQL Server tab in the middle of the Databases View, and then click Monitor.
a
Click the Agent Manager Host link located in the bottom left corner of the dialog box.
Port — Optional. This field can be left empty, unless the TCP/IP connection port is not the default port: 1443.
7
In the Configuration section, select the Alarm Template to use for this instance. The Factory Template will be applied by default. Refer to Viewing, Creating, and Managing Alarm Templates in the Foglight User Guide for more information.
8
Optional To enable SQL Performance Investigator, select SQL PI in the Monitoring Extension section.
The SQL PI Repository dialog is displayed. Select the Agent Manager on which the SQL PI
NOTE: To use gMSA authentication for connections to the PI Repository, select Local User in the Authentication drop-down. This requires that your FMS and Agent Manager are configured to run as a Windows Service logged on with the gMSA account. The gMSA account requires access to the SQL instance.
d
If the given SQL PI repository user does not have sufficient privileges, the Insufficient Privileges
dialog will be displayed. Enter an admin user and password, and then click Grant Privileges.
9
Optional — In the Monitoring Extension pane, click the Operating System link.
10
Optional — In the Monitoring Extensions pane, click Collect VM statistics.
11
Click Monitor.

Discovering Multiple Instances to Monitor

You can use the instance installation wizard to discover existing instances. This option allows you to discover instances and monitoring them by entering several methods:

1
Click the SQL Server tab in the middle of the Databases View, and then click Monitor.
2
Click the Use this option to discover multiple SQL-Server instances link. The Select an Agent Manager dialog box appears.
3
Choose an Agent Manager host, click Validate to validate the Agent Manager system resources, and then click Next.
4
Click Add instances and select one of the following methods for adding instances:
7
Click Set credentials to provide the instances' log in credentials and monitoring configuration.
8
Follow the steps described in Installing and Monitoring a Single SQL Server Instance , starting with Step 5 to enter the monitoring credentials and enable the monitoring extensions for this instance.
NOTE: To use stored credentials when enabling the Operating System monitoring extension, click the Operating System > Select from stored credentials link to open the Stored Credentials dialog box. Here you can review the log in credentials and authentication methods used for logging in to Foglight. Foglight stores encrypted credentials in lockboxes, which may be password-protected for added security. Database agents store all user log in credentials in a default lockbox called DB-Agent Lockbox. If credentials have already been entered in another lockbox, use the Lockbox list to select from that lockbox.
9
Click Monitor
If the message is Insufficient database privileges, this issue can be resolved using the Insufficient Database Privileges dialog box that appears. For details, go to Step 10.
For all other messages, the Database Connection Failed dialog box appears. For details, go to Step 11.
10
Click the text Insufficient Database Privileges.
Enter a SYSAdmin user and password, and then click Grant Privileges. Alternatively, click the View script link, to the right of the Grant privileges button, to grant privileges manually with a script.
a
Click Show details to view the error’s description.
b
Click Set credentials to display the dialog box used for entering the credentials, and enter the required changes.
