Domains Environment Summary (All Domains) view

The Domains Environment Summary (All Domains) view displays a domain tile for each domain in your Active Directory® environment. These domain tiles display summary data about the different sites and DCs that reside in each domain, as well as the number of objects in each of the alarm states (fatal, critical and warning).

A domain tile displays the following information:

1
From the Foglight navigation panel, select Dashboards > Active Directory > Active Directory Environment.

Domain Environment Summary view

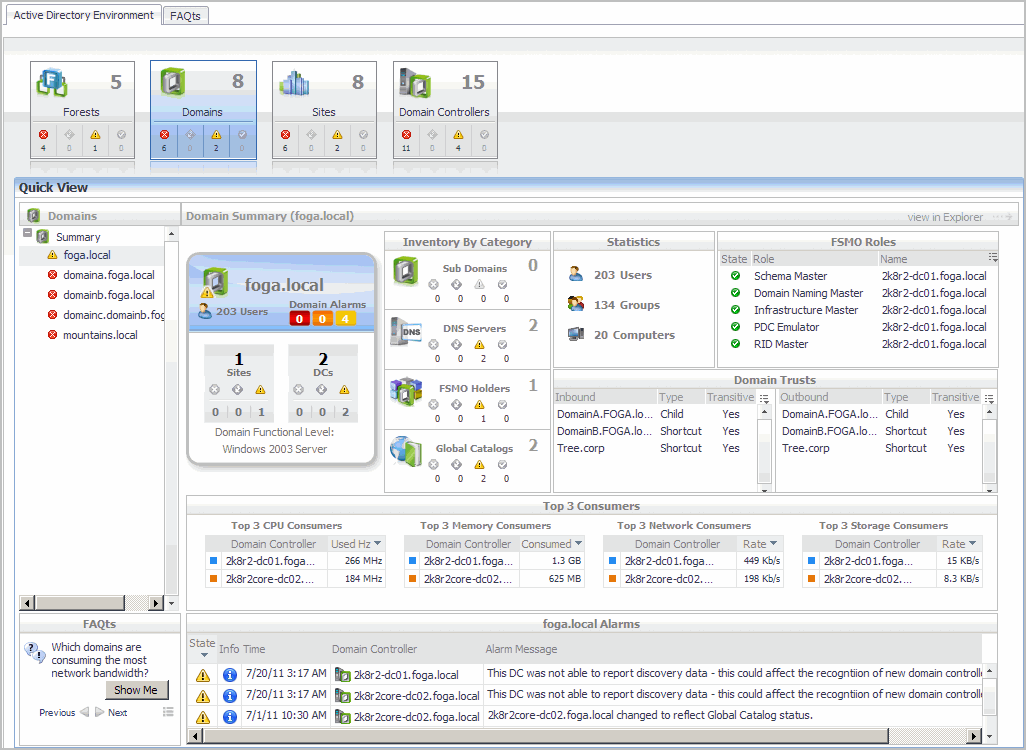

The Domain Environment Summary view displays a domain tile for the selected domain, showing data about the object types within that domain and the number of objects in each of the alarm states. In addition to the domain tile, this view displays more detailed information about the accounts, roles, and trusts in the selected domain. It also shows the top DCs in the domain that are consuming the most computer resources.

1
From the Foglight navigation panel, select Dashboards > Active Directory > Active Directory Environment.

In addition to the domain tile, the following embedded views are displayed in the Domain Summary:

Domains Explorer Summary (All Domains) view

The Domains Explorer Summary (All Domains) view displays detailed resource metrics and information for the DCs in all of the monitored domains in your Active Directory® environment.

1
From the Foglight navigation panel, select Dashboards > Active Directory > Active Directory Explorer.

In addition to the current domain alarms, this view is made up of the following embedded views:

Domain Explorer Summary view

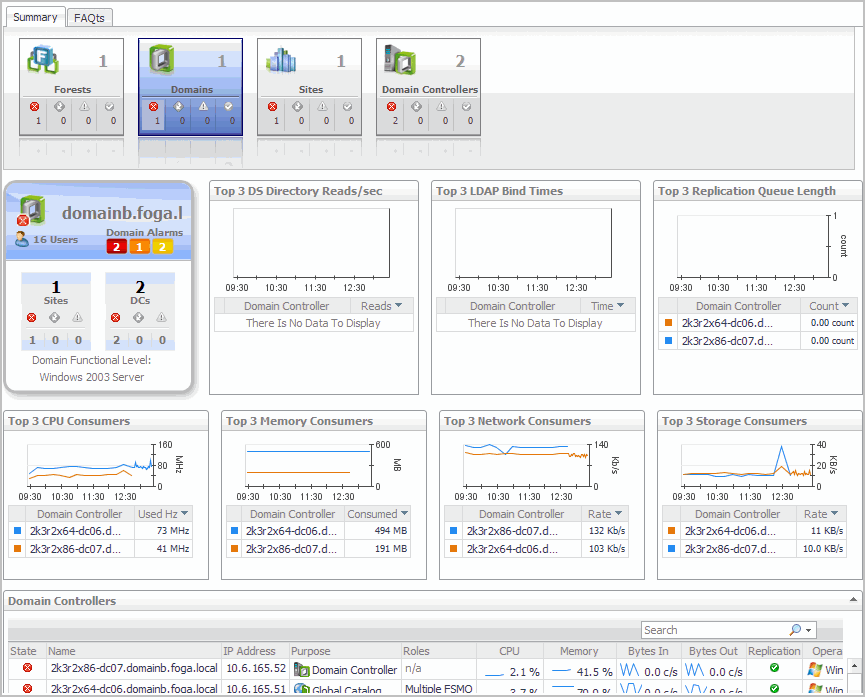

The Domain Explorer Summary view displays detailed resource metrics and information for the DCs in the selected domain.

1
From the Foglight navigation panel, select Dashboards > Active Directory > Active Directory Explorer.
From the Domains tile (at the top of the Summary view), select the Domains icon, title or count. On the Domains Inventory dialog, select an individual Domain object.

In addition to the domain tile and current alarms, this view is made up of the following embedded views:
