Domains Environment Summary (All Domains) view

The Domains Environment Summary (All Domains) view displays a domain tile for each domain in your Active Directory® environment. These domain tiles display summary data about the different sites and DCs that reside in each domain, as well as the number of objects in each of the alarm states (fatal, critical and warning).

Figure 23. Domains Environment Summary (All Domains) view

A domain tile displays the following information:

•
name of the domain
•
number of users in the domain
•
number of domain alarms in each state
•
number of sites in the domain and number of sites in each alarm state
•
number of DCs in the domain and number of DCs in each alarm state
•
Domain Functional Level
How to get here
1
From the Foglight navigation panel, select Dashboards > Active Directory > Active Directory Environment.
2
From the Monitoring tab, select the Domains tile.
3
From the Object Tree view, select Summary.
The Domains Environment Summary (All Domains) view appears in the Object Summary view of the Quick View on the Active Directory Environment dashboard.

Domain Environment Summary view

The Domain Environment Summary view displays a domain tile for the selected domain, showing data about the object types within that domain and the number of objects in each of the alarm states. In addition to the domain tile, this view displays more detailed information about the accounts, roles, and trusts in the selected domain. It also shows the top DCs in the domain that are consuming the most computer resources.

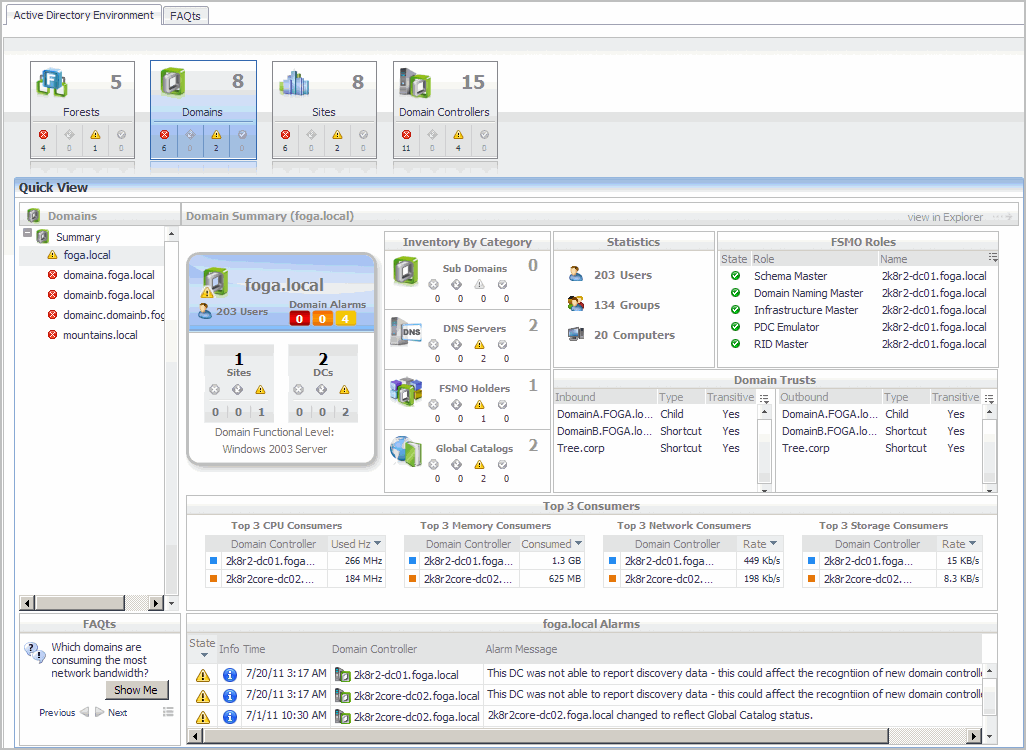

Figure 24. Domain Environment Summary view

How to get here
1
From the Foglight navigation panel, select Dashboards > Active Directory > Active Directory Environment.
2
From the Monitoring tab, select the Domains tile.
3
From the Object Tree view, select an individual Domain object.
The Domain Environment Summary view appears in the Object Summary view of the Quick View on the Active Directory Environment dashboard.

*
NOTE: You can also click a domain tile in the Domains Environment Summary (All Domains) view to display this view.
Embedded views

In addition to the domain tile, the following embedded views are displayed in the Domain Summary:

•
Inventory By Category view
•
Statistics view
•
FSMO Roles view (Domain)
•
Trusts view
•
Top 3 Consumers view

Domains Explorer Summary (All Domains) view

The Domains Explorer Summary (All Domains) view displays detailed resource metrics and information for the DCs in all of the monitored domains in your Active Directory® environment.

Figure 25. Domains Explorer Summary (All Domains) view

How to get here
1
From the Foglight navigation panel, select Dashboards > Active Directory > Active Directory Explorer.
2
From the Active Directory Enterprise view (under Dashboards in the navigation panel), select the Domain object container.
The Domains Explorer Summary (All Domains) view appears in the Primary view on the Active Directory Explorer dashboard.

*
NOTE: You can also click the view in Explorer link on the Domains Environment Summary (All Domains) view.
Embedded views

In addition to the current domain alarms, this view is made up of the following embedded views:

•
Top 3 CPU Consumers view
•
Top 3 Memory Consumers view
•
Top 3 Network Consumers view
•
Top 3 Storage Consumers view
•
Domain Controllers view

Domain Explorer Summary view

The Domain Explorer Summary view displays detailed resource metrics and information for the DCs in the selected domain.

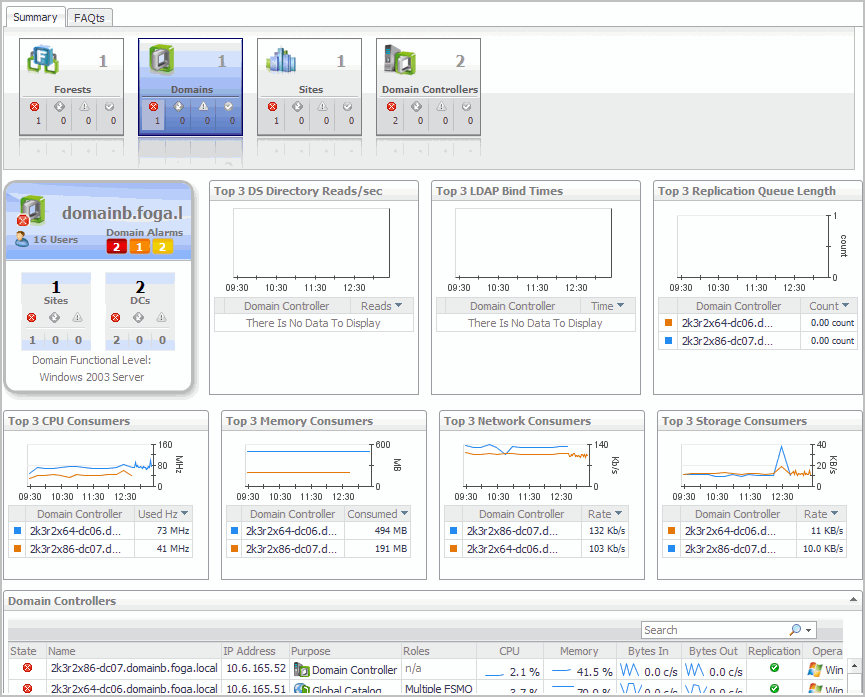

Figure 26. Domain Explorer Summary view

How to get here
1
From the Foglight navigation panel, select Dashboards > Active Directory > Active Directory Explorer.
2
Use one of the following methods to display this view:
•
From the Active Directory Enterprise view (under Dashboards in the navigation panel), select an individual Domain object.
•
From the Domains tile (at the top of the Summary view), select the Domains icon, title or count. On the Domains Inventory dialog, select an individual Domain object.
The Domain Explorer Summary view appears in the Primary view on the Active Directory Explorer dashboard.

*
NOTE: You can also click the view in Explorer link on the Domain Environment Summary view for the selected domain.
Embedded views

In addition to the domain tile and current alarms, this view is made up of the following embedded views:

•
Top 3 DS Directory Reads/sec view
•
Top 3 LDAP Bind Times view
•
Top 3 Replication Queue Length view
•
Top 3 CPU Consumers view
•
Top 3 Memory Consumers view
•
Top 3 Network Consumers view
•
Top 3 Storage Consumers view
•
Domain Controllers view
