Foglight Capacity Director 5.8.3 - User Guide

Using Foglight Capacity Director Getting Started Tab Current Capacity Tab Resource Utilization Tab Scenario Modeler Tab Server Purchase Tab Report Tab Performance Tuning Tab Changes and DRS Rules Tab Infrastructure Organizations Tab

Current Capacity Tab

The Current Capacity view displays information about the current capacity of a selected virtual center or datacenter. It includes the following three panes:

•
Planned Changes pane: Lists all valid planned changes before the deployment date, and provides the capability to create/edit/remove one or more planned changes.
•
VirtualCenter/Hosts Overview pane: Provides details about Current Capacity and Constraint, and allows you to select the Datastore information and Slot Size.
•
Clusters/Hosts pane: Consists of two tabs:
•
Clusters: Provides detailed information about clusters that are available in the selected virtual center or datacenter.
•
Hosts: Provides detailed information about hosts that are available in the selected cluster.
To access the Current Capacity view:
1
On the navigation panel, under Dashboards, click Capacity Director.
The Capacity Director dashboard opens.
2
Use the Group selector located at the top of the dashboard to select the virtual environment that you want to monitor.
3
On the Menu bar, click the Current Capacity tab.
The Current Capacity view appears at the bottom of the Capacity Director dashboard.

*
NOTE: Enabling or disabling the HA policy, which is configured in vCenter®, is only applicable for the Clusters tab in the Current Capacity view. If the HA policy is enabled for a cluster, Foglight Capacity Director calculates the cluster resources and reserve the cluster resources that are required to satisfy the HA policy. A green check mark appears in the HA column when the HA policy is enabled.

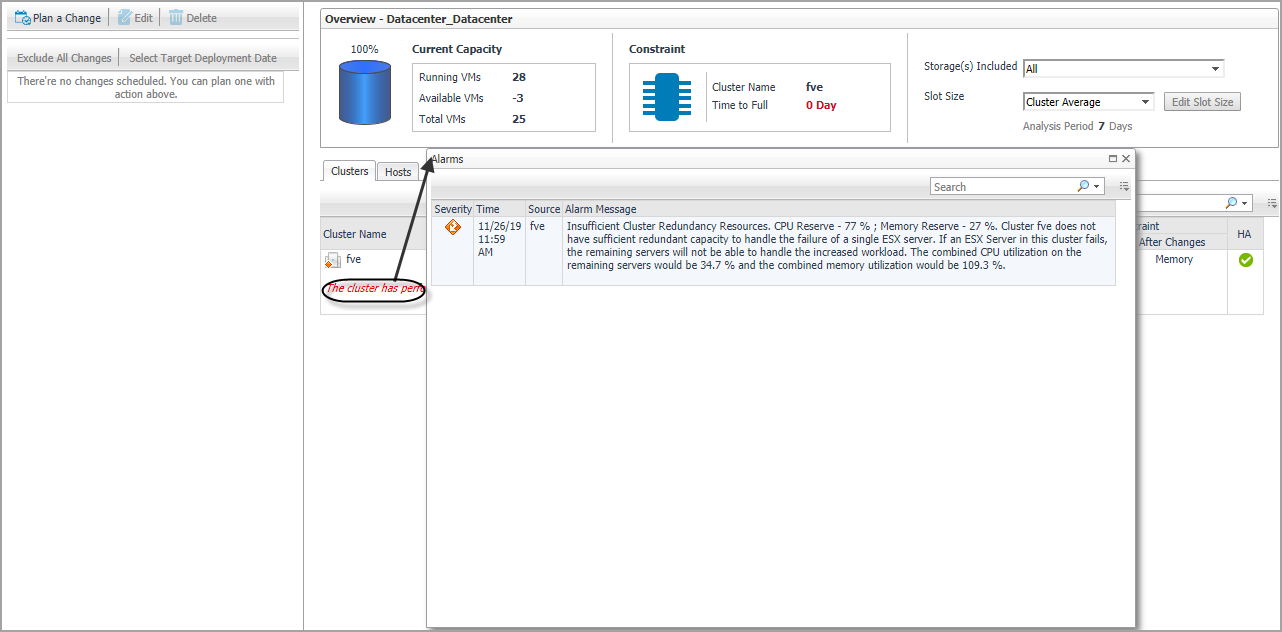

NOTE: When performance issues are prompted, click the message to open the Alarm view and check the detailed information.

Planned Changes pane

The Planned Changes pane on the left bottom of the Capacity Director dashboard offers the following menus:

•
Plan a Change menu: Allows you to add a new planned change. For more information, see Changes and DRS Rules Tab.
•
Edit menu: Allows you to make changes to existing planned changes. For more information, see Changes and DRS Rules Tab.
•
Delete menu: Allows you to delete any existing planned changes if needed. For more information, see Changes and DRS Rules Tab.
•
Exclude All Changes menu: Allows you to clear the selected planned changes in the Planned Changes table at a time.
•
Select Target Deployment Date menu: Allows you to select the deployment date until which the information is displayed in the Planned Changes table.
•
Planned Changes table: Includes a list of valid planned changes sorted chronologically up to the deployment date, which unifies the user interface and enables you to observe the result expected after executing planned changes. If you set the value of Automated to Yes when creating a planned change with the Add/Move/Decommission wizard, an icon appears, indicating that the change is planned to be automatically deployed.
To identify the valid planned changes before a target deployment date:
1
Click Select Target Deployment Date.
2
In the Select a Planned Deployment Date dialog box, click the date icon and select the deployment date as needed.
3
Click Select.
The Select a Planned Deployment Date dialog box closes and the Planned Changes table is updated to indicate all valid changes planned before the selected deployment date (the check box for these changes is selected).
OR
In the Planned Changes table, select the check box in front of a planned change.
The Planned Changes table is updated to indicate all valid changes planned before the deployment date associated with the selected change (the check box for these changes is selected).

For details about how to edit or delete existing change(s), refer to Changes and DRS Rules Tab .

VirtualCenter/Hosts Overview pane

After selecting a virtual center or datacenter by using the Group selector located at the top of the dashboard, Foglight Capacity Director calculates the capacity of the selected center in the background and displays the following information on the VirtualCenter/Hosts Overview pane:

•
Current Capacity: Includes information about the following metrics: Running VMs, Available VMs, and Total VMs.
•
Constraint: Includes information about the following metrics: Cluster Name and Time to Full.
•
Datastore(s) Included: Allows you to select from the drop-down list the datastores that Foglight Capacity Director should use in calculations for future planned changes.
The following options are available: All Datastores (default option) and particular datastores that varies depending on the virtual center/datacenter selected by the group selector.
•
All Datastores: The Slot Size and available slots are calculated based on all available datastores.
•
Particular datastore: The Slot Size and available slots are calculated based on the cluster/host connected to the selected datastore.
*
NOTE: The Clusters/Hosts pane is automatically updated to reflect the selection made.
•
Slot Size: Allows you to select from the drop-down list the size of the virtual machine (the slot size) that Foglight Capacity Director should use in calculations for future planned changes.
The following options are available: Based on VM, Cluster Average (default option), Cluster Maximum, and Custom Size.
For details, see the “Calculating Slot Size Based on VM” and “Calculating Slot Size Using Custom Size” sections.
*
NOTE: The Clusters/Hosts pane is automatically updated to reflect the selection made.

Calculating Slot Size Based on VM

To recalculate the slot size Based on VM:
1

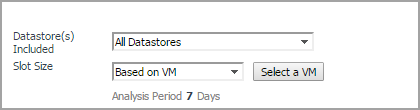

In the VirtualCenter/Hosts Overview pane, select Based on VM from the Slot Size drop-down list.
The Select a VM button appears on the right side of the Slot Size drop-down list.
2
Click Select a VM.
The VM Selection Dialog box appears.
3
Select a virtual machine from the table, or by typing its name in the Search box.
4
Click OK.
The VM Selection Dialog box closes and the Clusters/Hosts pane is updated to reflect this change.
