Moving Virtual Machines

Foglight Capacity Director allows you to create and deploy a new change for moving virtual machines between various destinations.

To schedule a change for moving a virtual machine:
1
In the Planned Changes view, click Add.
The wizard of scheduled planned changes appears.
2
Select Move Virtual Machines, and click Next.
3
In the Move Virtual Machines Wizard dialog box, specify the following fields, as needed:
•
VM Name: Click Browse to select a virtual machine to be moved in the VM Selector dialog box, and click Select.
•
Source: This value is the original destination where the virtual machine is deployed and is automatically filled in after you select a virtual machine.
•
Automated: Specify whether this planned change is deployed automatically or not.
•
Destination: Click Browse to select a destination to which the virtual machine is moved in the VM Movement - Destination Selector dialog box, and click Save.
•
Specific Host (available only if Automated is set to Yes): Click Browse to select a host in the VM Movement - Specific Host Selector dialog box, and click Save.
•
Resource Pool (available only if Automated is set to Yes): Click Browse to select a resource pool in the Resource Pool Selector dialog box, and click Select.
•
Storage: Click Browse to select a storage in the VM Movement - Storage Selector dialog box, and click Save.
•
Move Date: Click the icon and select the movement date.
•
Time: Click the icon to select the accurate time on the selected movement date.
4
Click Finish.
The Planned Changes view is updated to include this new change.

For migrating Hyper-V VMs, please do the following:

1

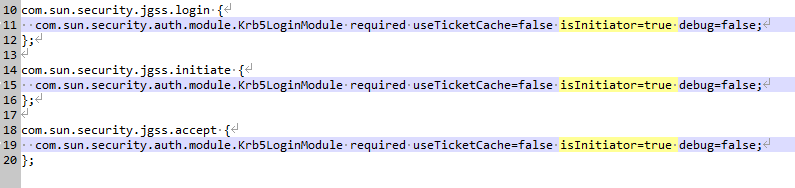

Set all isInitiator=true for module.com.sun.security.jgss.initiate (For AIX, set the com.ibm.security.jgss.initiate) from FGLAM_HOM\state\default\config\auth.login.config.
2

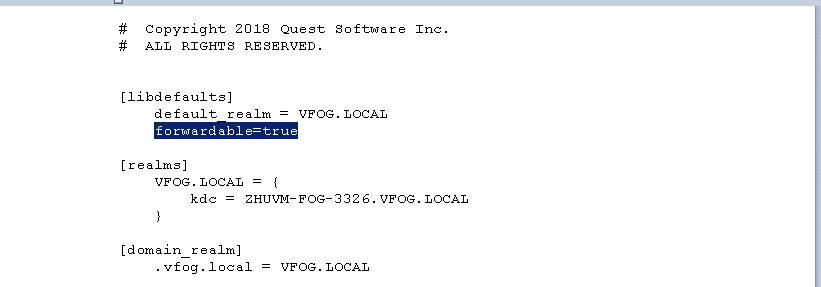

Set forwardable=true in libdefaults from FGLAM_HOM\state\default\config\krb5.config.
3

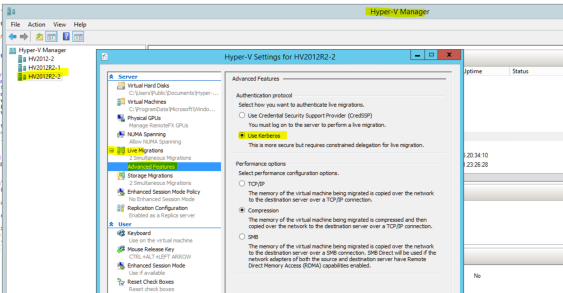

In Hyper-V Manager, select the Hyper-V server and settings. Then, go to Live Migration and Advanced Features. Then, select Use Kerberos under Authentication Protocol.
4

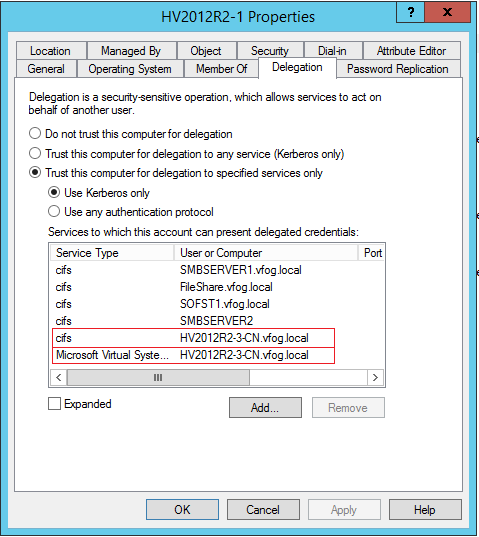

In Active Directory Users and Computers, find the Hyper-V server and go to properties. Then, find Delegation tab and add CIFS and Microsoft Virtual System Migration Service.
5

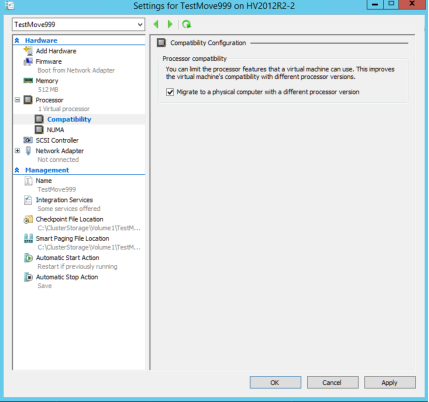

For Live Migration, In Hyper-V Manager, find the VM and go to properties. Then, expand Processor and select Compatibility and check Migrate to physical computer with a different processor version.

Adding a Datastore (Preview)

Foglight Capacity Director allows you to add a datastore without deploying the planned change in the realtime environment.

To schedule a datastore addition:
1
In the Planned Changes view, click Add.
The wizard of scheduled planned changes appears.
2
Select Add a Datastore (Preview), and click Next.
3
In the Model a Datastore Addition Wizard dialog box, specify the following fields, as needed.
•
Datastore Name: Type the name of the datastore.
•
Deploy Date: Click the icon and select the deployment date.
•
Time: Click the icon to select the accurate time on the selected deployment date.
•
Capacity: Type the number of capacity. The unit is one of the following: GB (default option), B, KB, MB, TB, and b.
•
Select Hosts: Select a host from the Select Hosts table.
4
Click Finish.
The Planned Changes view is updated to include this new change.

Modeling a Datastore Decommission (Preview)

Foglight Capacity Director allows you to decommission a datastore without deploying the planned change in the real-time environment.

To schedule a datastore decommission:
1
In the Planned Changes view, click Add.
The wizard of scheduled planned changes appears.
2
Select Model a Datastore Decommission (Preview), and click Next.
3
In the Model a Datastore Decommission Wizard dialog box, specify the following fields, as needed.
•
Datastore Name: Click Browse to select a datastore in the Datastore Selector dialog box, and click Select.
•
Deploy Date: Click the icon and select the deployment date.
•
Time: Click the icon to select the accurate time on the selected deployment date.
4
Click Finish.
The Planned Changes view is updated to include this new change.

Modeling a Datastore Expansion (Preview)

Foglight Capacity Director allows you to expand a datastore without deploying the planned change in the real-time environment.

To schedule a datastore expansion:
1
In the Planned Changes view, click Add.
The wizard of scheduled planned changes appears.
2
Select Model a Datastore Expansion (Preview), and click Next.
3
In the Model a Datastore Expansion Wizard dialog box, specify the following fields, as needed.
•
Datastore Name: Click Browse to select a datastore in the Datastore Selector dialog box, and click Select.
•
Current Utilization: These values are automatically filled in after you select a datastore.
•
Capacity: The capacity of the selected datastore.
•
Allocated: The allocated capacity on the selected datastore and the relevant percent.
•
In Use: The capacity that is being used and the relevant percent.
•
Available Space: The available capacity on the selected datastore.
•
Extent Capacity: Type the number of capacity to be expanded. The unit is one of the following: GB (default option), B, KB, MB, TB, and b.
4
Click Finish.
The Planned Changes view is updated to include this new change.
