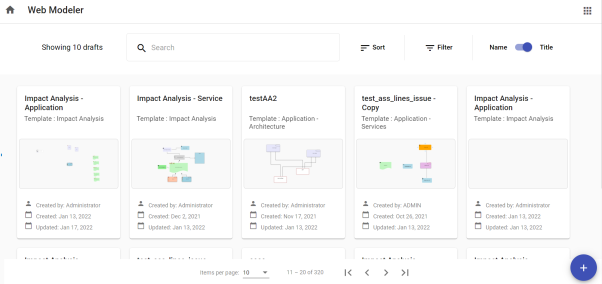

Web Modeler Home Page

Web Modeler Home page also known as Draft Manager [from version 2020.2.0] allows more control over your drafts. Providing significant features such as Search, Sort and Filters.

A new diagram can be created by choosing from the available templates in Web Modeler.

Graphical user interface, application

Description automatically generated

  • Search – You can search for existing diagrams with the keywords in the Search Box.

Graphical user interface

Description automatically generated with low confidence

  • Sort – You can Sort the diagram drafts with several available options.

  • Name or Title of the diagram

  • Who it was last Modified by

  • Who originally Created the draft

  • Sort the list by Ascending and Descending order

Graphical user interface, application

Description automatically generated

  • Filters – Diagrams in the draft manager can be filtered by,

  • Diagram Type

  • Creator of the diagram

  • Modified Date – ‘From Date’ to ‘To Date’

Graphical user interface, application

Description automatically generated

To reset the applied filters, click on Reset.

  • Toggle between Name and Title – List of diagrams will be displayed as per the toggle selection. You can choose to display the diagrams as per the Name or Title of the diagram.

  • Create New Diagram – A new diagram can be created from the scratch by using the existing template.

  • Click on + symbol from the bottom right of the screen.

    Graphical user interface, application

Description automatically generated

  • Enter Name of the new diagram > Select Template > click on Create.

    Graphical user interface, application

Description automatically generated

Parent object and Parent object name

Parent object and Parent object name

The instructions on this page detail how to set a Parent object and object name in erwin Evolve Suite (CW Suite), erwin Evolve Web, and erwin Web Modeler.

To set the Parent object and object name in erwin Evolve Suite:

  1. Start the erwin Evolve Suite.

  2. Click Modeler.

  3. Select the Model and Template that you want use to create a diagram.

    Graphical user interface, text, application

Description automatically generated

  1. Enter the name of the diagram in the Name box and then, click Create.

Graphical user interface, text, application

Description automatically generated

  1. Drag and drop the required shapes from the palette onto the diagram surface.

  2. Double click on the diagram surface or under the Home tab, click Properties.

The Diagram properties dialog box appears.

Graphical user interface, text, application

Description automatically generated

  1. Click the first drop-down list box under Parent object and select the required parent object.

    Graphical user interface, text, application, email

Description automatically generated

  1. Click the second drop-down list box under Parent object and select the required parent object name.

Graphical user interface, text, application, email

Description automatically generated

  1. Click OK.

  2. Click on the Refresh icon.

A picture containing icon

Description automatically generated

You can see the same Parent object and Parent object name on the left pane.

Icon

Description automatically generated

Before setting the Parent object and Parent object name in erwin Evolve Web, first, we need to enable these options (Parent object and Parent object name) in Evolve Designer and publish them on the site.

To enable Parent object and Parent object name in Evolve Designer [Evolve 2022.0.0 and above]:

  1. Start Evolve Designer.

  2. Click on a model. For example: A Foundation – Sample Model.

  3. Click Site.

  4. Expand Site > Object Pages.

Graphical user interface, text, application, email

Description automatically generated

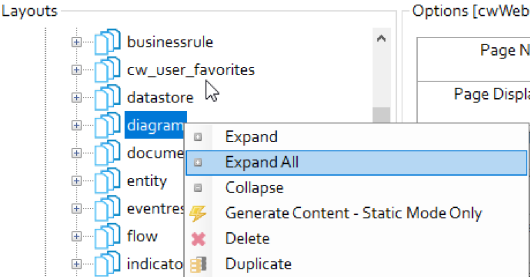

  1. Right-click on diagram and click Expand All.

Graphical user interface, application

Description automatically generated

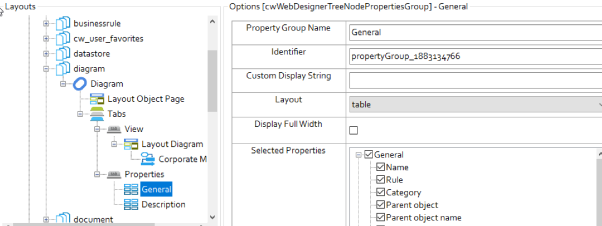

  1. Click General and under Selected Properties, select Parent object and Parent object name.

Graphical user interface, application

Description automatically generated

  1. Click Save and then, click Dynamic Site to generate the site.

A picture containing graphical user interface

Description automatically generated

To set the Parent object and Parent object name in erwin Evolve Web:

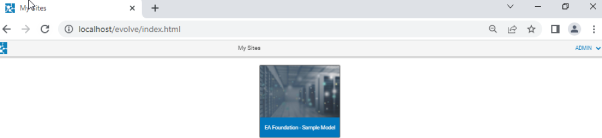

  1. Open the browser and login to erwin Evolve Web.

  2. Click on model. For example: A Foundation – Sample Model.



Graphical user interface, text, application

Description automatically generated

  1. Under my menu, click Diagram List.

Graphical user interface

Description automatically generated with medium confidence

The Diagram List appears.

  1. Enter the diagram name in the Filter the content of this page box.

Text

Description automatically generated

  1. Click on the Icon

Description automatically generated icon.

The diagram opens on your object page.

  1. In the Diagram drop-down list, click Properties.

Graphical user interface, text, application

Description automatically generated

  1. Click the Edit icon to edit the Parent object and Parent object name.

Icon

Description automatically generated

  1. Click the Parent object drop-down list and select the required option.

  2. Click the Parent object name drop-down list and select the required option.

Graphical user interface, text, application, email

Description automatically generated

  1. Click the Save changes icon.

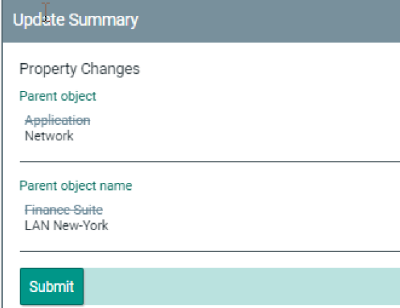

The Update Summary details appear on right pane.

  1. Click Submit.

Graphical user interface, text, application

Description automatically generated

To set Parent object and Parent object name in erwin Web Modeler:

  1. Click View.

  2. Click the Edit Diagram In Web Modeler icon.

Diagram

Description automatically generated

  1. Click Create new draft.

Graphical user interface

Description automatically generated

The erwin Web Modeler editor opens in a new tab with the predefined Shape Palette of the template chosen.

  1. Click on the icon to view diagram properties.

Diagram

Description automatically generated

  1. Click on the A picture containing text

Description automatically generated icon.

Graphical user interface, text, application, chat or text message

Description automatically generated

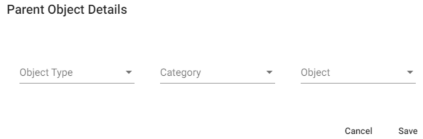

Parent Object Details popup opens.

  1. Click the Object Type drop-down list and select the required option.

  2. Click the Category drop-down list and select the required option.

  3. Click the Object drop-down list and select the required option.

  4. Click Save.

A picture containing table

Description automatically generated

To publish the diagram:

  1. Click the Publish Diagram icon.

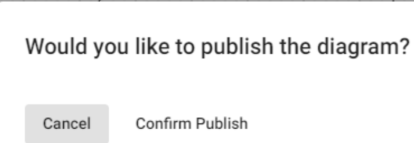

  1. Click Confirm Publish.

Graphical user interface, text, application

Description automatically generated



Once the diagram is published in the erwin Web Modeler, it can be accessed from the Modeler in the erwin Evolve Suite.

Icon

Description automatically generated

Diagram and Palette properties can be modified, if required, from the desktop application.

Linking Parent Object to Child Drafts

To link parent objects to existing child draft diagrams:

  1. Open the browser and login to erwin Evolve Web.

    The list of available models appears.

  1. Click a model. For example, EA Foundation – Sample Model.

  1. Under my menu, click Diagram List

    Company name

Description automatically generated with medium confidence

    The list of diagrams opens.

  1. Enter the diagram name in the Filter the content of this page box.

    Graphical user interface, text

Description automatically generated

  1. Click the Open related object page Logo

Description automatically generated icon.

    The diagram opens on your object page.

  1. Click the Edit Diagram In Web Modeler icon.

    Diagram

Description automatically generated

Icon

Description automatically generated

In the absence of the Edit Diagram In Web Modeler option, ensure that the Web Modeler is enabled with a Diagrammer license for you.



  1. Click Create new draft

    Graphical user interface

Description automatically generated

    Evolve Web Modeler editor opens in a new tab with the predefined Shape Palette of the chosen template.

    Graphical user interface, application, PowerPoint

Description automatically generated

  1. Select an object.

    Options are now enabled.

    Graphical user interface, diagram

Description automatically generated

  1. Click the drop-down arrow on the Explode New Draft button.

    The Link Draft Diagrams option appears.



  1. Click Link Draft Diagrams

    The Add Link to Existing Draft appears.

    Graphical user interface, application

Description automatically generated



  1. Select any child draft diagram to link with an object.

  1. Click Add Link

    Graphical user interface, application

Description automatically generated

    The child draft diagram is now linked to a parent object.

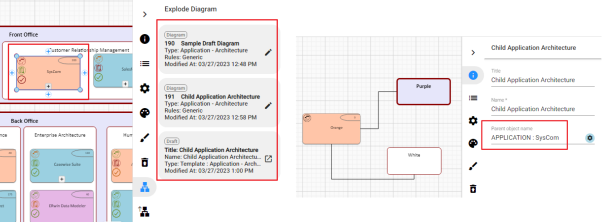

You can now see that parent object has draft child diagram available in the properties. Also, the name of the parent object is included in the child draft diagram.

Using Explode Diagram in erwin Web Modeler

The instructions on this page detail how to use the Explode Diagram feature to:

  • Create links from parent to child diagrams

  • Open existing child diagrams linked via the feature

  • Return to the parent diagram

To use the explode diagram feature in erwin Evolve Suite:

  1. In the diagram, right-click an object.

  1. Hover over Explode New.

  1. Click Diagram.

The New Diagram screen appears.

  • Use Name to specify the name of the diagram.

  • Use Base the diagram on a template to specify template of the diagram.

  • Use Create a blank diagram (based on diagramming rules) to create a new blank diagram without any templates.

  1. Click OK.

The selected object is linked to a new diagram. You can explode the object to view or open the diagram.

To view an exploded diagram:

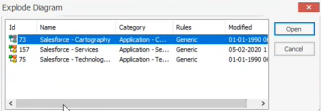

  1. On a linked object that is represented on a diagram, click the indicator inside the shape.

The list of exploded diagrams appears.

  1. Select a diagram from the list.

  2. Click Open.

The exploded diagram opens. You can view the parent object’s details in the properties of the exploded diagram.

To view parent object or diagram of exploded diagram:

  1. Under the Home tab, click Return to Parent.

  1. Select a diagram and click Open.

The Parent diagram appears.

To create an exploded diagram in erwin Web Modeler [Evolve 2022.0 and above]:

  1. Open the browser and login to erwin Evolve Web Platform.

The list of available model appears.

  1. Click on the model, e.g., EA Foundation – Sample Model.

  2. Under my menu, click Diagram List.

The list of diagrams opens.

  1. Click Diagram List available under my menu.

  2. Enter the diagram name in the Filter the content of this page box.

  1. Click the Open related object page icon.

The diagram opens on your object page.

  1. Click the Edit Diagram In Web Modeler icon.

Icon

Description automatically generated

If this icon is not present, please check you have a license for Web Modeler, that Web Modeler is enabled, and you are allocated a Diagrammer license.

  1. Click Create new draft.

    Evolve Web Modeler editor opens in the new tab with the predefined Shape Palette of the template chosen.

  2. Select an object.

  3. Click Image.

The Diagram Types screen appears.

  1. Enter Name and select a Template.

A blank exploded diagram is created. Now, you can drag and drop objects from the shape palette.

  1. To publish the diagram, click the IconDescription automatically generated icon. You will be asked if you wish to publish. Click to confirm.

Once the diagram is published in the Web Modeler, the same diagram can be accessed from the Modeler in the desktop application.
