Quest® Enterprise Reporter 3.5.1Port Requirements
Port Requirements
This document outlines the ports required by Enterprise Reporter.
For the Enterprise Reporter components to communicate, some ports must be open.

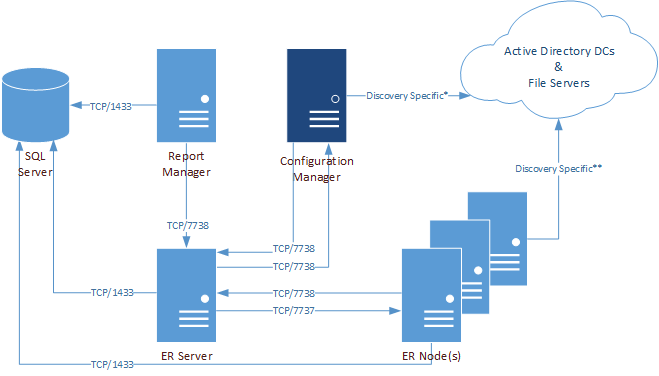

The following figure shows the ports that are used by the various Enterprise Reporter components.
*For more information on ports used when creating a discovery, see Table 1.
**For more information on ports used during data collections, see Table 2.
The following table shows the ports used by all of the Enterprise Reporter components.
The following table outlines the ports used by all of the Enterprise Reporter discoveries.
*Exchange 2013 and higher

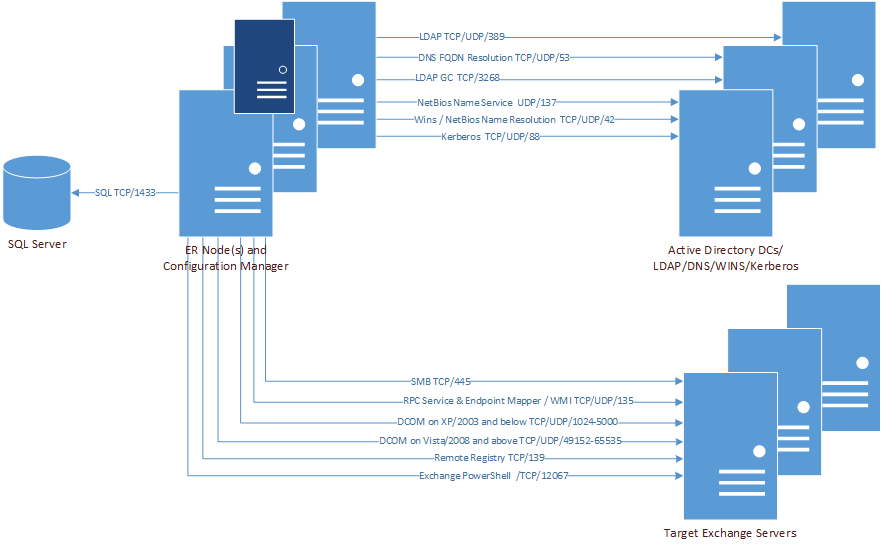

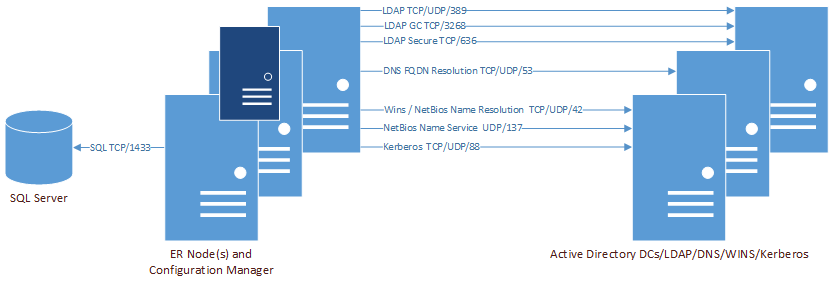

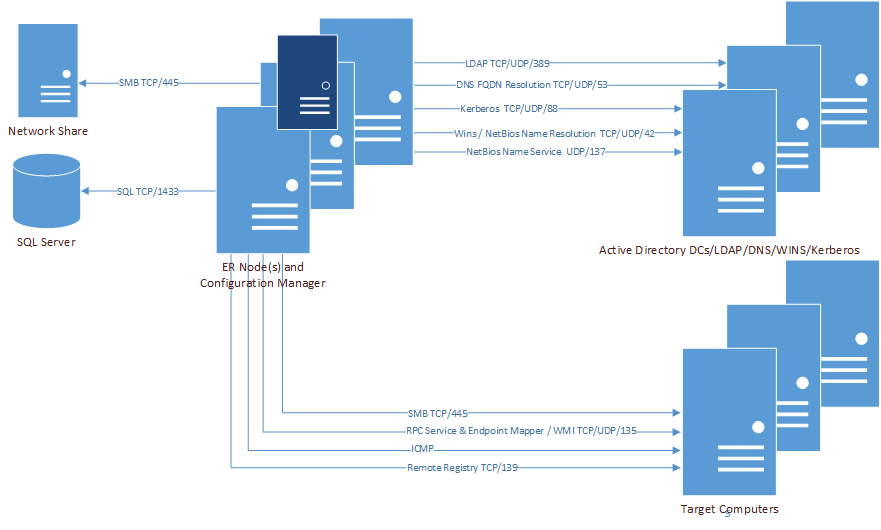

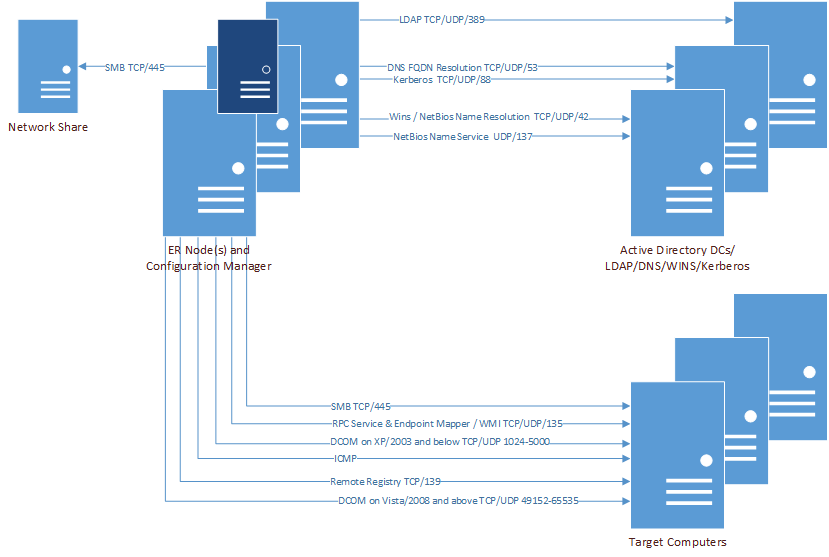

The following figures outline the ports used by the Enterprise Reporter discoveries.

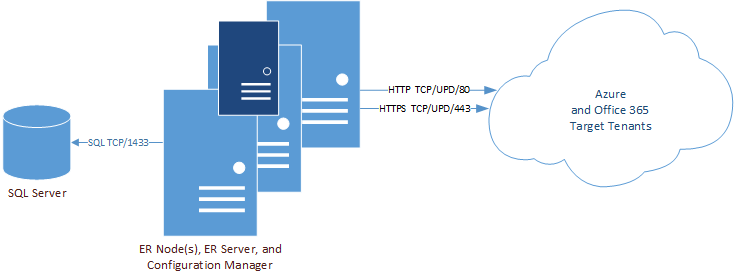

Additional ports for Azure and Microsoft 365 discoveries to be set on the Node:
Additional port for Exchange discovery to be set on the Node:
