This tab was designed to give the administrator fast, reliable and comprehensive information about archived and retrieved files. The number of files, their size as well as space saved on the disc at archiving all these essential data can be sorted by folder, user and time period. Exporting the statistics to chosen folder is also possible.
As a first step, in the Type down-drop box choose whether you want to generate statistics for Archived or Retrieved files.
Then select the statistics specification in the Statistics down-drop box:
|
All |
- |
returns data on saved space and number and size of all archived files |
|
Yearly statistics |
- |
returns data on saved space and number and size of archived files for the chosen sequence of years |
|
Monthly statistics |
- |
returns data on saved space and number and size of archived files for the chosen sequence of months |
|
Daily statistics |
- |
returns data on saved space and number and size of archived files for the chosen sequence of days |
|
Hourly statistics |
- |
returns data on saved space and number and size of archived files for the chosen sequence of hours |
Additional statistics are available for Archived files (Archived is selected in the Type down-drop box):
|
User based statistics |
- |
returns data on saved space and number and size of files archive by the selected user or all users (including jobs) |
|
Folder based statistics |
- |
returns data on saved space and number and size of files archived in the selected folder |
NOTE: All the above mentioned statistics types DO NOT take into consideration versions of archived files. Only data for the current versions of the archived files are collected. In case of archived files it is possible to get statistics also for their versions. To generate the statistics for versions (not including the actual version) select Archived yearly statistics versions, Archived Monthly statistics versions etc.
After specifying your statistics click the Generate button (). Depending on the chosen type of statistics you will be asked to specify the time span for the statistics, user or folder.

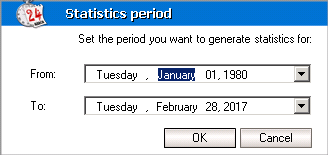

Example: To set the period for which you want to generate the statistics use the down arrows to open the calendar. Then select the date. You can also simply rewrite the values. Then click OK.
Statistics get displayed in the Results pane.
Click Export () should you wish to export the statistics as an .rpt, .html, PDF or .xls file to your location.
With Archive Manager for Files you may archive/retrieve through system context menus. There are several system context menus, depending on where you click with your right mouse button.

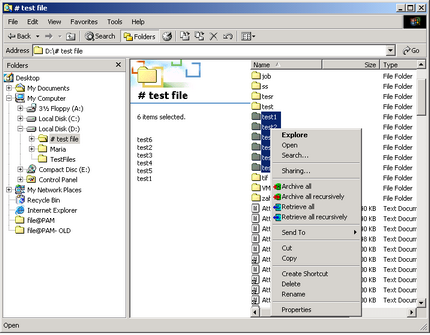

If you select several folders and then click with your right-mouse button, the context menu allows you may choose to archive all, archive all recursively (i.e. subfolders included), retrieve all, or retrieve all recursively.
At archiving, the default retention category is used. If none of the retention categories (under Settings / General tab) is marked as default, system context menu for archiving/retrieving is not accessible.

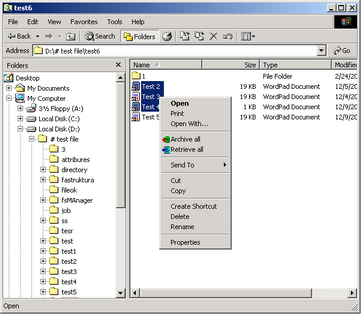

If you select several files and then click with your right-mouse button, the following menu opens. You may choose to archive all, or retrieve all.

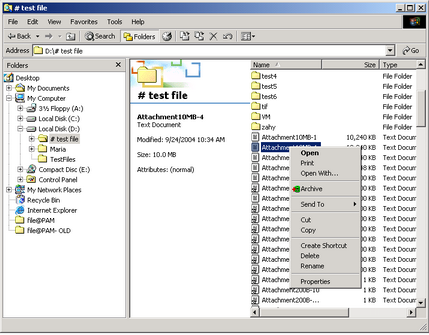

Select one file and then click with your right-mouse button. You may choose to archive the file if it has not been archived yet (see the screenshot below). If you select an archived file, you can retrieve it via the context menu.
Free Space Checking
In order to prevent free space to get too low on a file server, it is possible to allow retrieving of archived files only under certain conditions. The administrator can define the minimal amount of the free space for which retrieving will be allowed. If the amount of the free space left is smaller than the minimal amount, retrieving will fail.
The minimal free space can be defined in figures or percentage for individual disks and UNC paths or it can be set globally as well.
To activate the free space checking functionality, the new key CheckFreeSpace has to be added to registry:
HKEY_LOCAL_MACHINE \ Software \ Metalogix \ fsaPAM \ CheckFreeSpace
Then add a new string value for every disk or UNC path for which you want to check the free space. To check all disks and UNC paths globally, set an asterisk * as a Value name.
Syntax:
Value name |
Data |
---|---|
Disk name with : or UNC path starting with \\ or every path will be checked if asterisk * is set |
Value in - percentage % - bytes B - kilobytes KB - megabytes MB - gigabytes GB - terabytes TB |
Examples:
Value name |
Data |
---|---|
* |
20% |
C: |
30% |
D: |
300 GB |
5% | |
\\fileserver2\data |
100 MB |
To apply the changes, all MAMfsa services have to be restarted in Start / Programs / Administrative tools / Services.
Size Faking Feature
At archiving, Archive Manager for Files transfers an archived file to HSM system, i.e. to the archive. Only a shortcut of few kilobytes remains at the original location of the file and thus Archive Manager saves storage space. However, when using quota management software sometimes it is required that the archived file (i.e. shortcut) be displayed with the size of the original file. This feature has to be set in registry under:
HKEY_LOCAL_MACHINE\SOFTWARE\Metalogix\fsaPAM\SparseGlobal
When the SparceGlobal key value is set to:
1 the shortcut will be displayed with the size of the original file
0 the shortcut will be displayed with its actual size
NOTE: The shortcut will be also displayed with its actual size, if the key is not present in the registry.
To set this feature also for HTML shortcuts, the SparceGlobal key has to be set to value 1 and SparseHTML key has to be set to value 1 as well. As a result also HTML shortcuts will be displayed with the size of the original file.
To apply the changes, all MAMfsa services have to be restarted in Start / Programs / Administrative tools / Services.
NOTE: As compression is not supported on PSFS, the size faking feature is not supported on PSFS.
FIltering for Log Files
It is possible to considerably shorten log files accessible in the Archive Manager for Files on the Scheduler / Reports tab by not including less important information into them, i.e. log entries for Already archived messages will be filtered out.
To activate filtering, a new key LogIsArchived has to be added to the registry under
HKEY_LOCAL_MACHINE\SOFTWARE\Metalogix\fsaPAM
Right-click inside the right pane, choose New > DWORD value and set this new created LogIsArchived key to 0.
To apply the changes, all MAMfsa services have to be restarted in Start / Programs / Administrative tools / Services.
Description of the Archive Manager for Files registry values
These values are defining the basic behavior of our product and can be found in the Windows registry under the path:
HKEY_LOCAL_MACHINE\SOFTWARE\Metalogix\fsaPAM
AllowRemoteDrives |
whether the "Storage" tab is activated in the manager |
DBCommandTimeout |
overrides the default timeout for DB command used in handler service (in seconds); values less than 30 will configure the system to use 30s |
dbconnectionstring |
database connection string |
dbconnectionstringADO |
database connection string used by the Handler service |
dbpassword |
encoded database password, machine dependent |
dbschema |
Archive Manager database schema |
dbtype |
database type |
dbuser |
database user, account used when creating database connections |
dbversion |
Archive Manager database version |
DebugOutputFlags |
set by the FilePamDbg.exe application, used for gathering debug information |
fsaLogDir |
base path of the job log files |
fsaPamGuardTimer |
defines, when the Guard service should restart the other services. Value entered is in minutes after midnight. If set to 0xffffffff, the services wont be restarted in the night. Recommended to set the value to 0xffffffff |
HSMServer |
indicates the HSM server |
LogFilePathName |
the path of the log file used by the Archive Manager core service to store information about current archive and retrieve processes |
LogIsArchived |
flag, by default set to 1. This registry entry is not created automatically. If set to 0, the job logs will not contain information about files, which were not being archived because they were already shortcuts |
MinSizeToShortcutB |
defines the minimum size of a file, which can be replaced with a shortcut after archiving |
NetAppBackupUsers |
defines one domain user for which the screen requests from NetApp will not retrieve the file back to the original location on filer; supported format: <Domain>\<User> |
RunServices |
tells the Guard service, which other Archive Manager services to start. The value is a bitmask: 1 - Handler service, 2 - Remote server service, 4 - Archiver service. If set to 7, all other services will be started |
RemoveExtendedAttribs |
If set to 0, files with extended attributes are archived but the shortcut is not created. If set to1, extended attributes are removed and the original file is archived and replaced by shortcut. |
ScriptPath |
the path to the database scripts |
ShortcutXMLTag |
used in the case of kernel type shortcuts (not HTML, NetApp or Celerra), if set to 1, the information stored in the reparse point is written into the content of the shortcut. Recommended to set the value to 1 |
SparseGlobal |
indicates whether the file size faking feature is turned on (1) or off (0) globally for all shortcut types. Some customers using quota management software might have problems with size faking (see Size faking feature) |
SparseHTML |
The same functionality focused just on HTML shortcuts. If set to 1, the HTML shortcuts will have the same logical size of the shortcut as the original file had (see Size faking feature) |
StartServicesAfter |
tells the Guard service, how long to wait before starting the other Archive Manager services. Value defined in milliseconds |
StartServicesByGuard |
indicates whether the other Archive Manager services should be started by the Guard service |
TempDir |
directory, where the Handler service stores temporary files which are created during the retrieve process. This registry entry is not created automatically, by default the service users temporary directory is used |
WebServicePrefix |
used when generating HTML shortcuts. Defines the basic URL of the FilePamWebService, which is responsible for auto-retrieving HTML shortcuts |
