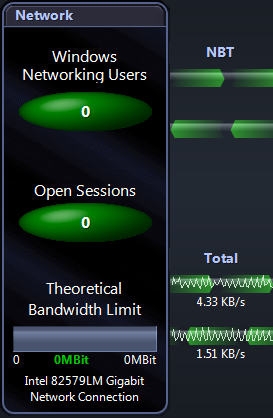

The Network panel shows the total number of connected users, and the rate at which packets are being sent from and received by the system: Windows Networking Users — Shows the number of clients connected to this system.
Open Sessions — The current number of Windows Networking sessions open on this machine.
Theoretical Bandwidth Limit — Shows the level of network traffic graphed against a "theoretical" maximum bandwidth for the network card specified. If there are multiple network cards, use Windows Network Card Display to select the one whose data you want to display.
Selected Network Card — The name of the network interface card (NIC) selected for diagnosis. If there are multiple network cards, use Windows Network Card Display to select the one whose data you want to display.
NBT KB Received — Represents the rate at which NetBios TCP/IP data is being received by the system from Windows Networking clients. NBT KB Sent — Represents the rate at which NetBios TCP/IP data is being sent from the system to Windows Networking clients.
Total KB Received — Represents the rate at which network data is received by the system from other network systems. Total KB Sent — Represents the rate at which network data is being sent from the system to other network systems. |
The flows between the Network panel and the CPU panel represent the rate of data transfer between the Windows host and the connected network.
