About configuring default settings

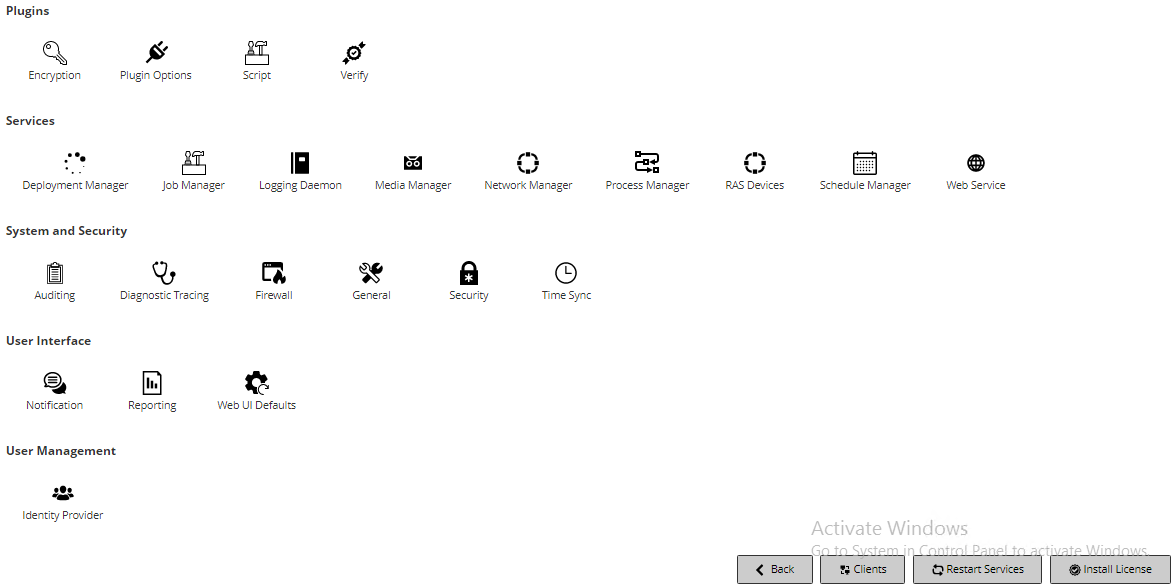

NetVault Backup runs with some default settings that can be customized to suit your environment. You can view and modify these settings from the Change Settings link in the Navigation pane. The default settings are available for the following services and components.

Plugins

Services

System and Security

User Interface

User Management

1
In the Navigation pane, click Manage Clients.
3
On the View Client page, click Configure.

Other configuration utilities

You can also use the Txtconfig utility to customize default settings for the server and client machines.

The Txtconfig utility provides a text-based interface to customize various settings for the server and client machines. This utility is available on all supported operating systems. The Txtconfig utility resides in the bin directory under the NetVault Backup installation directory. You must be logged-in with Administrator privileges on Windows and root user privileges on Linux and UNIX to use the Txtconfig utility. For more information, see Configuring default settings using Txtconfig.

Configuring encryption settings

Before you can start using the Plug-in for Standard Encryption or Plug-in for Advanced Encryption, you must configure the encryption settings, which specify the encryption algorithm and encryption key that you want to use. You can configure these settings from the Change Settings link.

The encryption plug-ins provide support for CAST-128, AES-256, and CAST-256 algorithms to meet regulatory backup security requirements. You can install these plug-ins on the NetVault Backup Server or Clients to perform encrypted backups for that machine. For more information about these plug-ins, see the Quest NetVault Backup Plug-in for Standard Encryption User’s Guide or Quest NetVault Backup Plug-in for Advanced Encryption User’s Guide.

To configure default settings for a NetVault Backup Client, click Clients. In the NetVault Backup Clients table, select the client, and click Next.
3
Under Plugins, click Encryption, and configure the following settings.

Encrypt ALL Backups on this Client

Once the Plug-in for Standard Encryption or Plug-in for Advanced Encryption is installed on a client, you can do either of the following:

To enable encryption for all backups, select this check box. When you enable encryption for all backups, you cannot change the setting on a per-job basis.

For more information about performing job-level encryption, see Specifying additional options.

Encryption Key String

Type the string that serves as the encryption key for the NetVault Backup machine.

Different platforms allow varying characters and password lengths. We recommend that you use passwords of 32 characters or less. You can use characters from the following set: “A–Z”, “a–z”, “0–9”, and “_”. Key strings that do not conform to these specifications may work on one platform, but may be invalid in another environment.

Available Encryption Algorithms

Select the encryption algorithm that you want to use for backups and restores. Depending on the products that you have installed, the list includes the following options: CAST-128, CAST-256, and AES-256.

4
Click Apply to apply the new settings and close the dialog box.

Configuring plug-in options

You can configure default settings for various built-in and licensed plug-ins from the Change Settings or Create Backup Job page. The plug-in configuration procedures are covered in the respective user guides.

This section includes the following topics:
