Add Discovery Results Smart Labels

Using Smart Labels with Discovery Results

Smart Labels can be used to automatically assign labels to Discovery Results that meet specified criteria. This includes DNS, Socket, and SNMP results across a single subnet or multiple subnets.

Add Discovery Results Smart Labels

You can add Smart Labels for Discovery Results to group and manage results.

1.
Log in to the appliance Administrator Console, https://appliance_hostname/admin. Or, if the Show organization menu in admin header option is enabled in the appliance General Settings, select an organization in the drop-down list in the top-right corner of the page next to the login information.
2.
Select Inventory > Discovery Results to display the Discovery Results page.
3.
Click the Smart Label tab above the list on the right to display the Smart Label panel.

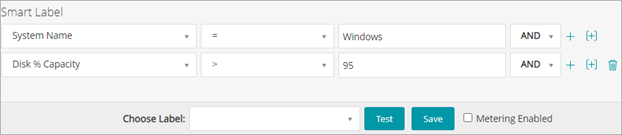

The Smart Label panel contains a number of drop-down lists that you can use to specify criteria.

5.
Click Test to display items that match the search criteria.
7.
In the Choose label drop-down list, do one of the following:
Select an existing label to associate with the Smart Label. Type in the Choose label field to search for existing labels.
Enter a new name for the Smart Label in the Choose label field, then press Enter or Return.
NOTE: Press Enter or Return after you enter a new Smart Label name to move the text from the search field to the label field.
8.
Click Save.

The Smart Label is automatically applied to or removed from Discovery Results that meet the specified criteria. The next time the Discovery Schedule runs, the Smart Label is applied to discovered devices.

Changing the run order of Discovery Results Smart Labels

You can specify the order in which Smart Labels run by changing their order values.

Smart Labels have a default order value of 100, and Smart Labels with lower values run before those with higher values. See Assign the Smart Label run order.

Changing the run order of Discovery Results Smart Labels

Using Smart Labels with Discovery Results

Smart Labels can be used to automatically assign labels to Discovery Results that meet specified criteria. This includes DNS, Socket, and SNMP results across a single subnet or multiple subnets.

Add Discovery Results Smart Labels

You can add Smart Labels for Discovery Results to group and manage results.

1.
Log in to the appliance Administrator Console, https://appliance_hostname/admin. Or, if the Show organization menu in admin header option is enabled in the appliance General Settings, select an organization in the drop-down list in the top-right corner of the page next to the login information.
2.
Select Inventory > Discovery Results to display the Discovery Results page.
3.
Click the Smart Label tab above the list on the right to display the Smart Label panel.

The Smart Label panel contains a number of drop-down lists that you can use to specify criteria.

5.
Click Test to display items that match the search criteria.
7.
In the Choose label drop-down list, do one of the following:
Select an existing label to associate with the Smart Label. Type in the Choose label field to search for existing labels.
Enter a new name for the Smart Label in the Choose label field, then press Enter or Return.
NOTE: Press Enter or Return after you enter a new Smart Label name to move the text from the search field to the label field.
8.
Click Save.

The Smart Label is automatically applied to or removed from Discovery Results that meet the specified criteria. The next time the Discovery Schedule runs, the Smart Label is applied to discovered devices.

Changing the run order of Discovery Results Smart Labels

You can specify the order in which Smart Labels run by changing their order values.

Smart Labels have a default order value of 100, and Smart Labels with lower values run before those with higher values. See Assign the Smart Label run order.

Adding Smart Labels for devices

Adding Smart Labels for devices

You can create Smart Labels to organize devices by type, such as desktop, server, and laptop. After you create Smart Labels for devices, you can schedule patches to be deployed to devices based on their labels.

Add a Smart Label for desktops

You can create a Smart Label to identify devices that require desktop patches.

1.
Go to the Devices list:
a.
Log in to the appliance Administrator Console, https://appliance_hostname/admin. Or, if the Show organization menu in admin header option is enabled in the appliance General Settings, select an organization in the drop-down list in the top-right corner of the page next to the login information.
b.
On the left navigation bar, click Inventory, then click Devices.
2.
Click the Smart Label tab above the list on the right.
The Smart Label panel appears.

The image displays the Smart Label panel with search criteria entered.

b.
Click Add Line, then specify the criteria required to eliminate laptops:

Other useful criteria for identifying desktops include:

BIOS Serial Numbers, or use the Includes partial serial number criteria. This is useful if you have purchased desktops with sequential numbers. For more information, contact your vendor.
4.
Click Test to display items that match the search criteria.
5.
In the Choose label drop-down list, do one of the following:
Select an existing label to associate with the Smart Label. Type in the Choose label field to search for existing labels.
Enter a new name for the Smart Label in the Choose label field, then press Enter or Return.
NOTE: Press Enter or Return after you enter a new Smart Label name to move the text from the search field to the label field.
6.
Click Save to create the Smart Label.
7.
Optional: To confirm that the new label appears on the Labels list, select Home > Labels > Smart Labels or Label Management.
a.
Click Inventory > Devices to display the Devices page.
c.
On the Device Detail page, click Force Inventory.

Force Inventory is available only if the agent messaging protocol connection to an Agent-managed device is active, or for Agentless devices, if the device is reachable.

Add a Smart Label for servers

You can create a Smart Label to identify devices that require server patches.

1.
Go to the Devices list:
a.
Log in to the appliance Administrator Console, https://appliance_hostname/admin. Or, if the Show organization menu in admin header option is enabled in the appliance General Settings, select an organization in the drop-down list in the top-right corner of the page next to the login information.
b.
On the left navigation bar, click Inventory, then click Devices.
2.
Click the Smart Label tab above the list on the right.
The Smart Label panel appears.

The image displays the Smart Label panel with search criteria entered.

b.
Click Add Line, then specify the criteria required to eliminate laptops:

Other useful criteria for identifying servers include:

BIOS Serial Numbers, or use the Includes partial serial number criteria. This is useful if you have purchased servers with sequential numbers. For more information, contact your vendor.
4.
Click Test to display items that match the search criteria.
5.
In the Choose label drop-down list, do one of the following:
Select an existing label to associate with the Smart Label. Type in the Choose label field to search for existing labels.
Enter a new name for the Smart Label in the Choose label field, then press Enter or Return.
NOTE: Press Enter or Return after you enter a new Smart Label name to move the text from the search field to the label field.
6.
Click Save.
7.
Optional: To confirm that the new label appears on the Labels list, select Home > Labels > Smart Labels or Label Management.
a.
Click Inventory > Devices to display the Devices page.
c.
On the Device Detail page, click Force Inventory.

Force Inventory is available only if the agent messaging protocol connection to an Agent-managed device is active, or for Agentless devices, if the device is reachable.

Add a Smart Label for laptops

You can create a Smart Label to identify devices that require laptop patches.

1.
Go to the Devices list:
a.
Log in to the appliance Administrator Console, https://appliance_hostname/admin. Or, if the Show organization menu in admin header option is enabled in the appliance General Settings, select an organization in the drop-down list in the top-right corner of the page next to the login information.
b.
On the left navigation bar, click Inventory, then click Devices.
2.
Click the Smart Label tab above the list on the right.
The Smart Label panel appears.

The image displays the Smart Label panel with search criteria entered.

b.
Click Add Line, then specify the criteria required to identify laptops:

Other useful criteria for identifying laptops include:

BIOS Serial Numbers, or use the Includes partial serial number criteria. This is useful if you have purchased laptops with sequential numbers. For more information, contact your vendor.
4.
Click Test to display items that match the search criteria.
5.
In the Choose label drop-down list, do one of the following:
Select an existing label to associate with the Smart Label. Type in the Choose label field to search for existing labels.
Enter a new name for the Smart Label in the Choose label field, then press Enter or Return.
NOTE: Press Enter or Return after you enter a new Smart Label name to move the text from the search field to the label field.
6.
Click Save to create the Smart Label.
7.
Optional: To confirm that the new label appears on the Labels list, select Home > Labels > Smart Labels or Label Management.
a.
Click Inventory > Devices to display the Devices page.
c.
On the Device Detail page, click Force Inventory.

Force Inventory is available only if the agent messaging protocol connection to an Agent-managed device is active, or for Agentless devices, if the device is reachable.

Add a Smart Label for desktops

Adding Smart Labels for devices

You can create Smart Labels to organize devices by type, such as desktop, server, and laptop. After you create Smart Labels for devices, you can schedule patches to be deployed to devices based on their labels.

Add a Smart Label for desktops

You can create a Smart Label to identify devices that require desktop patches.

1.
Go to the Devices list:
a.
Log in to the appliance Administrator Console, https://appliance_hostname/admin. Or, if the Show organization menu in admin header option is enabled in the appliance General Settings, select an organization in the drop-down list in the top-right corner of the page next to the login information.
b.
On the left navigation bar, click Inventory, then click Devices.
2.
Click the Smart Label tab above the list on the right.
The Smart Label panel appears.

The image displays the Smart Label panel with search criteria entered.

b.
Click Add Line, then specify the criteria required to eliminate laptops:

Other useful criteria for identifying desktops include:

BIOS Serial Numbers, or use the Includes partial serial number criteria. This is useful if you have purchased desktops with sequential numbers. For more information, contact your vendor.
4.
Click Test to display items that match the search criteria.
5.
In the Choose label drop-down list, do one of the following:
Select an existing label to associate with the Smart Label. Type in the Choose label field to search for existing labels.
Enter a new name for the Smart Label in the Choose label field, then press Enter or Return.
NOTE: Press Enter or Return after you enter a new Smart Label name to move the text from the search field to the label field.
6.
Click Save to create the Smart Label.
7.
Optional: To confirm that the new label appears on the Labels list, select Home > Labels > Smart Labels or Label Management.
a.
Click Inventory > Devices to display the Devices page.
c.
On the Device Detail page, click Force Inventory.

Force Inventory is available only if the agent messaging protocol connection to an Agent-managed device is active, or for Agentless devices, if the device is reachable.

Add a Smart Label for servers

You can create a Smart Label to identify devices that require server patches.

1.
Go to the Devices list:
a.
Log in to the appliance Administrator Console, https://appliance_hostname/admin. Or, if the Show organization menu in admin header option is enabled in the appliance General Settings, select an organization in the drop-down list in the top-right corner of the page next to the login information.
b.
On the left navigation bar, click Inventory, then click Devices.
2.
Click the Smart Label tab above the list on the right.
The Smart Label panel appears.

The image displays the Smart Label panel with search criteria entered.

b.
Click Add Line, then specify the criteria required to eliminate laptops:

Other useful criteria for identifying servers include:

BIOS Serial Numbers, or use the Includes partial serial number criteria. This is useful if you have purchased servers with sequential numbers. For more information, contact your vendor.
4.
Click Test to display items that match the search criteria.
5.
In the Choose label drop-down list, do one of the following:
Select an existing label to associate with the Smart Label. Type in the Choose label field to search for existing labels.
Enter a new name for the Smart Label in the Choose label field, then press Enter or Return.
NOTE: Press Enter or Return after you enter a new Smart Label name to move the text from the search field to the label field.
6.
Click Save.
7.
Optional: To confirm that the new label appears on the Labels list, select Home > Labels > Smart Labels or Label Management.
a.
Click Inventory > Devices to display the Devices page.
c.
On the Device Detail page, click Force Inventory.

Force Inventory is available only if the agent messaging protocol connection to an Agent-managed device is active, or for Agentless devices, if the device is reachable.

Add a Smart Label for laptops

You can create a Smart Label to identify devices that require laptop patches.

1.
Go to the Devices list:
a.
Log in to the appliance Administrator Console, https://appliance_hostname/admin. Or, if the Show organization menu in admin header option is enabled in the appliance General Settings, select an organization in the drop-down list in the top-right corner of the page next to the login information.
b.
On the left navigation bar, click Inventory, then click Devices.
2.
Click the Smart Label tab above the list on the right.
The Smart Label panel appears.

The image displays the Smart Label panel with search criteria entered.

b.
Click Add Line, then specify the criteria required to identify laptops:

Other useful criteria for identifying laptops include:

BIOS Serial Numbers, or use the Includes partial serial number criteria. This is useful if you have purchased laptops with sequential numbers. For more information, contact your vendor.
4.
Click Test to display items that match the search criteria.
5.
In the Choose label drop-down list, do one of the following:
Select an existing label to associate with the Smart Label. Type in the Choose label field to search for existing labels.
Enter a new name for the Smart Label in the Choose label field, then press Enter or Return.
NOTE: Press Enter or Return after you enter a new Smart Label name to move the text from the search field to the label field.
6.
Click Save to create the Smart Label.
7.
Optional: To confirm that the new label appears on the Labels list, select Home > Labels > Smart Labels or Label Management.
a.
Click Inventory > Devices to display the Devices page.
c.
On the Device Detail page, click Force Inventory.

Force Inventory is available only if the agent messaging protocol connection to an Agent-managed device is active, or for Agentless devices, if the device is reachable.

Related Documents

The document was helpful.

Select Rating

I easily found the information I needed.

Select Rating
