Role views

Server roles allow administrators to split up the functions of an Exchange server and place each role, or a combination of roles, on different servers. There are five server roles that can be installed in an Exchange organization:

Edge Transport is installed on a stand alone server that is not a member of the Active Directory® domain and routes mail between the Exchange organization and the Internet. It provides protection against spam and viruses.
Hub Transport is the mail routing server responsible for routing mail within the Exchange organization.
Client Access is the server that users connect to using their mail client, mobile device or web browser. The Client Access role is installed in every Exchange organization and every Active Directory site that has the Mailbox server role installed.
Mailbox which holds the Exchange databases where the user mailboxes and public folders reside.
Unified Messaging is responsible for merging your VOIP infrastructure with your Exchange system.

The following views are available to monitor the health and performance of the servers hosting these Exchange roles.

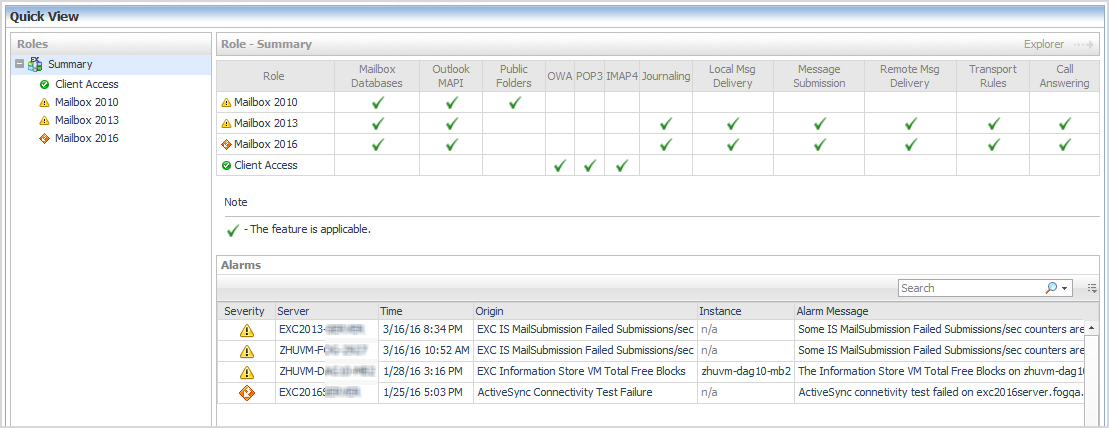

Exchange Roles Environment Summary (All Exchange Roles) view

The Exchange Roles Environment Summary (All Exchange Roles) view displays a summary of all Exchange roles (Client Access, Edge Transport, Hub Transport, Mailbox, and Unified Messaging) installed on your Exchange environment. It also displays the Exchange features enabled in each role and the overall role status per Exchange server.

The following table lists the Exchange features for which additional data is available for each type of Exchange role.

Client Access 2007, 2010

Client Access 2013

Edge Transport

Hub Transport

Mailbox 2007, 2010

Mailbox 2013

Mailbox 2016

Unified Messaging (UM)

1
From the Foglight navigation panel, select Dashboards > Exchange > Exchange Environment.

The following embedded views are displayed:

Client Access Role Environment Summary view

The Client Access Role Environment Summary view displays information about the selected Client Access role, showing the Exchange features and the role status per server. It also provides additional metrics and information that pertains to the selected Exchange role.

1
From the Foglight navigation panel, select Dashboards > Exchange > Exchange Environment.

The following embedded views are displayed:

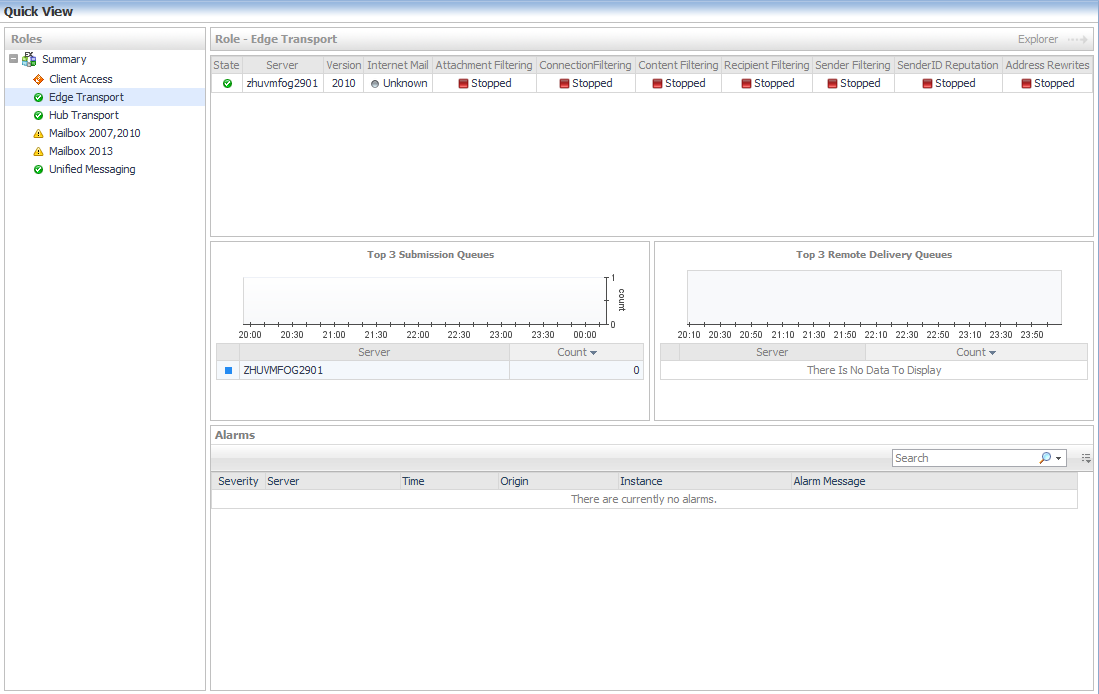

Edge Transport Role Environment Summary view

The Edge Transport Role Environment Summary view displays information about the selected Edge Transport role, showing the Exchange features and the role status per server. It also provides additional metrics and information that pertains to the selected Exchange role.

1
From the Foglight navigation panel, select Dashboards > Exchange > Exchange Environment.

The following embedded views are displayed:
