Exchange Servers Explorer Summary (All Exchange Servers) view

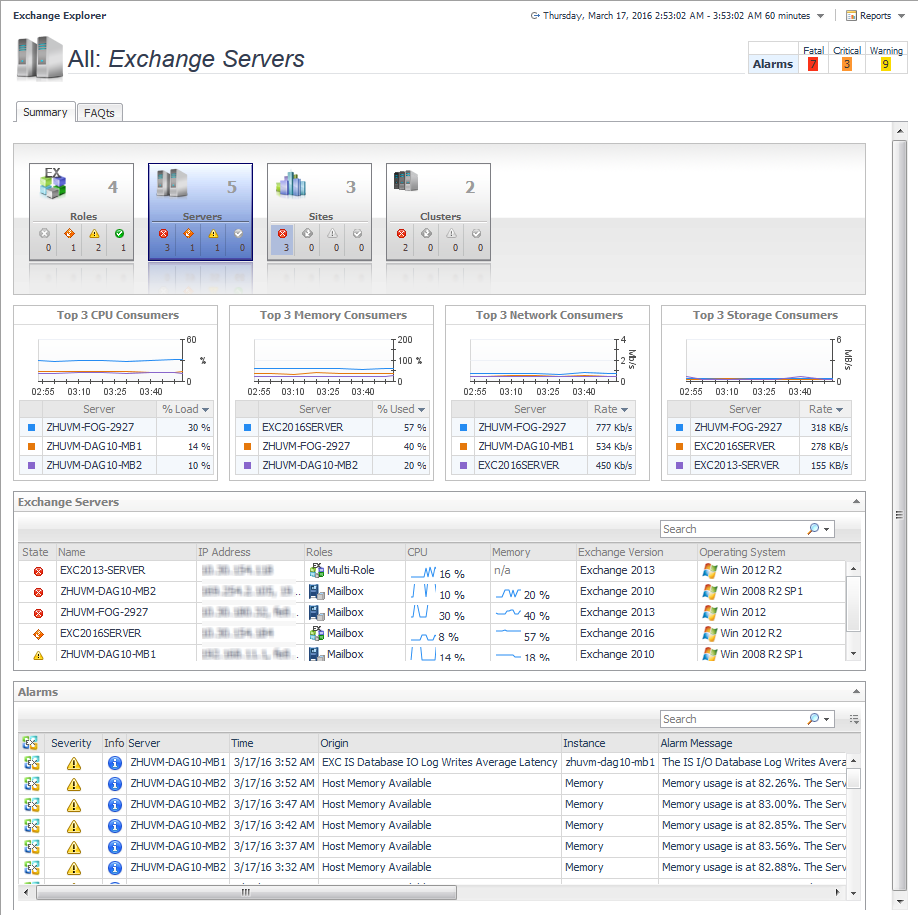

The Exchange Servers Explorer Summary (All Exchange Servers) view displays more detailed resource metrics and information about all of the monitored Exchange servers in your environment.

1
From the Foglight navigation panel, select Dashboards > Exchange > Exchange Explorer.

The following embedded views are displayed:

Exchange Server Explorer Summary view

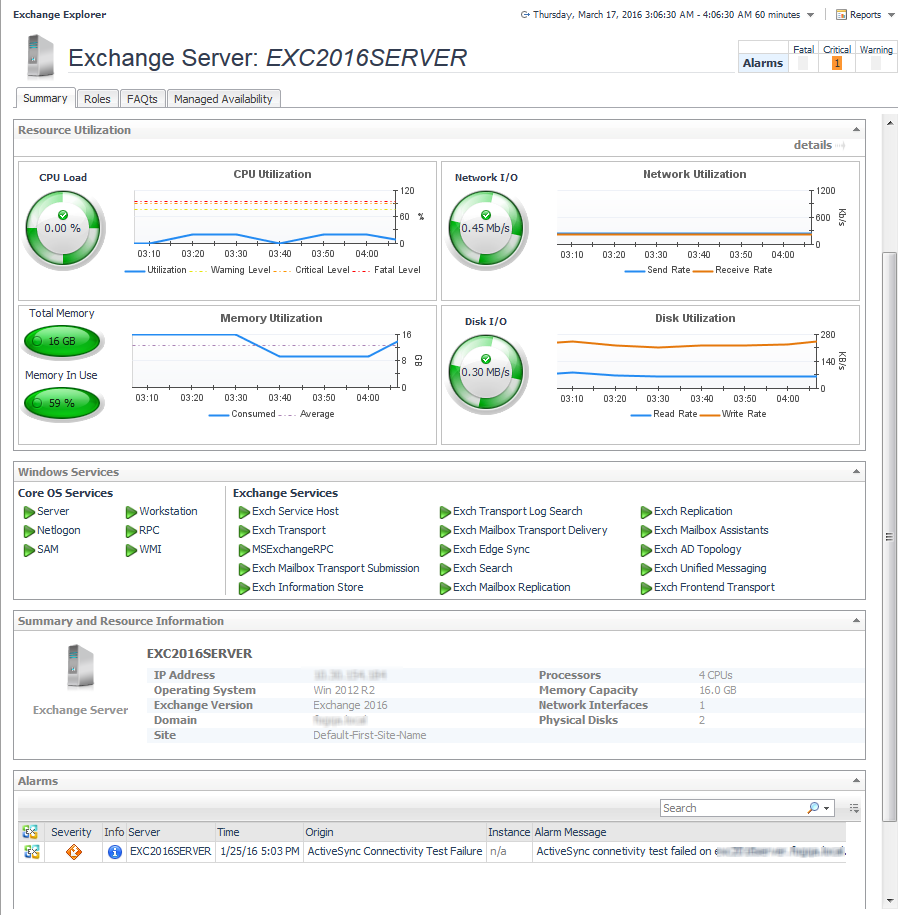

The Exchange Server Explorer Summary view displays more detailed resource metrics and information about the selected Exchange server.

1
From the Foglight navigation panel, select Dashboards > Exchange > Exchange Explorer.
3
Select the Summary navigation tab.
NOTE: You can also click the Explorer link on the Exchange Server Environment Summary view to display this view.

The following embedded views are displayed:

Resource Utilization Details view

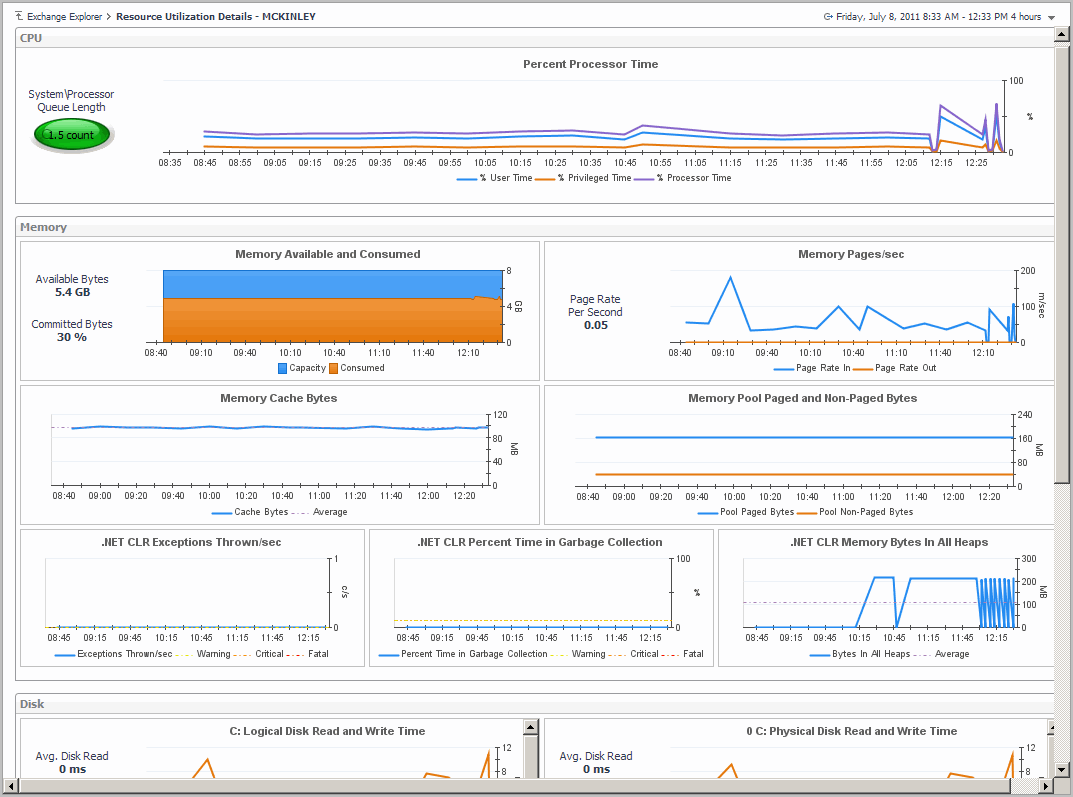

The Resource Utilization Details view displays more detailed information about the selected server’s resources.

1
From the Foglight navigation panel, select Dashboards > Exchange > Exchange Explorer.
3
Select the Summary navigation tab.
4
Click the Resource Utilization title or the Details link in the upper right-hand corner of the Resource Utilization view.

The following embedded views are displayed:

Exchange Server Roles view

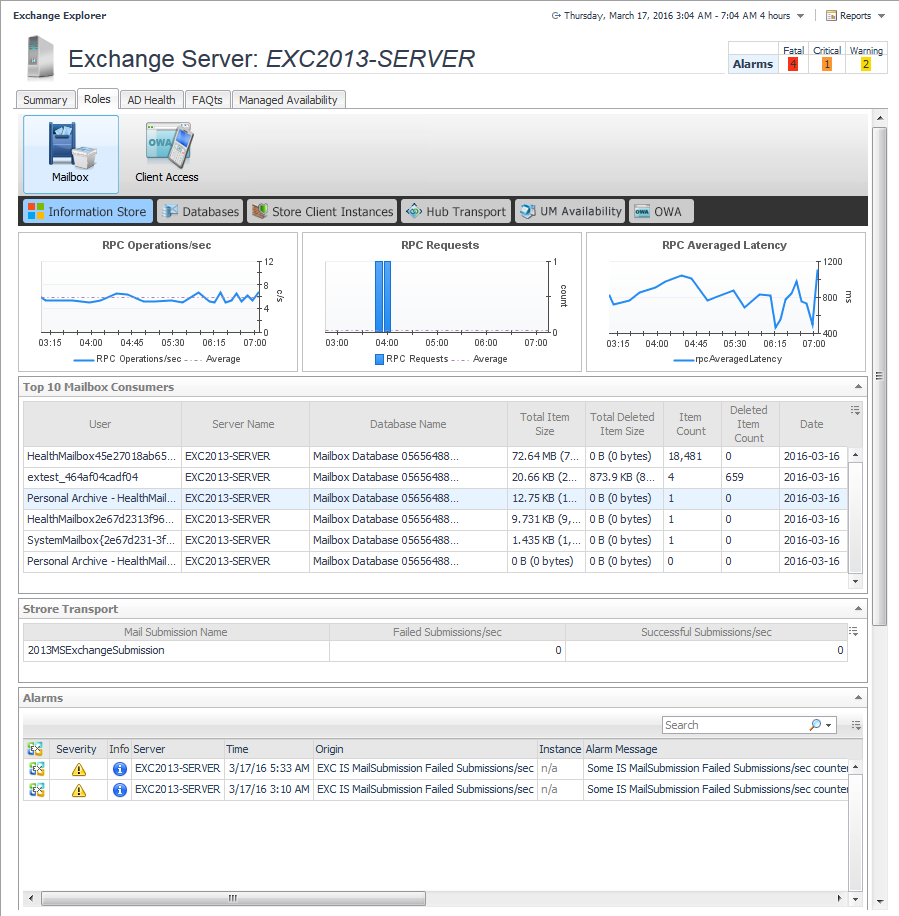

The Exchange Server Roles view displays performance metrics and information for the Exchange roles being performed by the selected Exchange server. The content of this view is based on the Exchange role selected at the top of the view.

1
From the Foglight navigation panel, select Dashboards > Exchange > Exchange Explorer.
3
Select the Roles navigation tab.

The embedded views in this view are dependant upon the Exchange role selected at the top of the Exchange Server Roles view. For detailed information about the embedded views, see Exchange Server Roles view (reference information).

Client Access

OWA1

Edge Transport

Hub Transport

Mailbox

Hub Transport2
UM Availability3
OWA4

Unified Messaging


1

Available only for Exchange 2007, 2010 client access role.


2

Available only for Exchange 2013 and 2016 mailbox role.


3

Available only for Exchange 2013 and 2016 mailbox role.


4

Available only for Exchange 2013 and 2016 mailbox role.
