Agent Manager Clients view

Previous Next

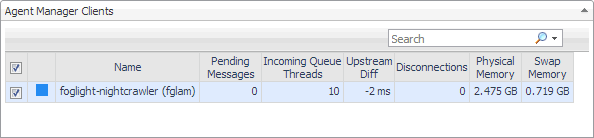

This view, accessible by clicking Expand to Select More Foglight Agent Manager Clients at the top of the Client Details tab, shows a list of the connected Agent Manager instances. For each Agent Manager instance, it shows the instance name, the numbers of pending messages and incoming queue threads, the upstream time difference, the number of disconnections, and the amounts of used physical and swap memory.

Message Processing tab

Previous Next


The Message Processing tab shows tables for the number of pending messages and the number of incoming queue threads for a selected Agent Manager instance.
Figure 9. Message Processing tab

Clock Skew tab

Previous Next


The Clock Skew tab contains a graph that displays the upstream difference per second for a selected Agent Manager instance.
Figure 10. Clock Skew tab

Bandwidth tab

Previous Next


The Bandwidth tab displays metrics for bandwidth usage samples taken at prescribed intervals per second for a selected Agent Manager instance, including the bytes in, bytes out, and real request time for a selected servlet. The bandwidth statistics reflect the bandwidth (bytes per second) used by the Agent Manager instance data over a specific time interval.
Figure 11. Bandwidth tab
