Configuring DNS

Previous Next



Configuring DNS

Depending on your environment, you might have to configure the VA with DNS nameserver information. The steps to change an existing configuration are the same.

To configure DNS:
search <domain1> <domain2> <domain3>
nameserver <IP address>
nameserver <IP address>
5
Restart the VA by typing reboot at the prompt.

Disabling Distributed Resource Scheduler (DRS) for the vRanger VA

Previous Next


Configuring vRanger > Supplemental instructions: additional repository types > Disabling Distributed Resource Scheduler (DRS) for the vRanger VA

Disabling Distributed Resource Scheduler (DRS) for the vRanger VA

If the vRanger appliance is configured on hosts that are part of a DRS-enabled cluster, the VAs might be migrated to a different host due to DRS and high-availability (HA) activity. This change causes replication failures as the VA is no longer in the expected location — as configured in vRanger. To prevent this disruption, it is important to disable DRS for the vRanger VAs.

To disable DRS for the vRanger VA:
3
In the Cluster Settings dialog box, select Virtual Machine Options.

Using vRanger

Previous Next



Using vRanger

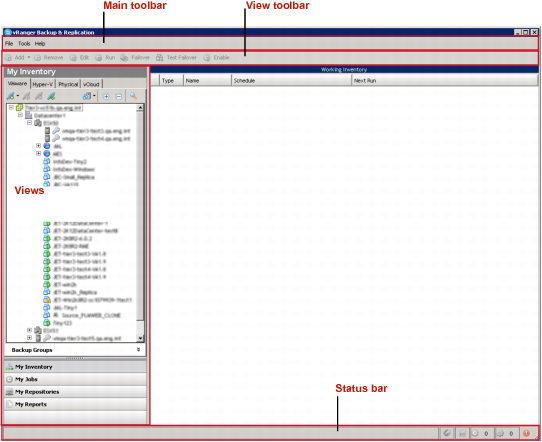

vRanger user interface (UI) overview

The vRanger UI consists of four views: My Inventory, My Repositories, My Jobs, and My Reports. Each view features the Main toolbar and each pane’s toolbar.

In the left pane within these views, data appears nested in a tree structure. In general, the information that appears in the right pane depends on the node that you select in the left pane. Each node has a distinct icon, making navigation easy and hierarchy clear.

For instructions on using the Startup Wizard to configure the software for your environment, see Configuring vRanger through the Startup Wizard.

Main toolbar

Previous Next



Using vRanger

vRanger user interface (UI) overview

The vRanger UI consists of four views: My Inventory, My Repositories, My Jobs, and My Reports. Each view features the Main toolbar and each pane’s toolbar.

In the left pane within these views, data appears nested in a tree structure. In general, the information that appears in the right pane depends on the node that you select in the left pane. Each node has a distinct icon, making navigation easy and hierarchy clear.

For instructions on using the Startup Wizard to configure the software for your environment, see Configuring vRanger through the Startup Wizard.
