Sensitive Content Manager 2.2.4 - Installation Guide

Standalone SCM Installation

For this deployment topology, a single server is used to install all the components of the SCM as shown in the illustration below.

img-0002

In this topic:

·Worksheet for this installation

·Steps to setup the SCM Server

·Steps to verify the standalone installation



Worksheet

The following information will be required through the installation process. Sample values are provided here as a guidance based on the illustration above.

Field

Description

Example

License Key

The license key that you received from Quest. If you don't have a license key, contact your Quest representative.

894K5-3M448-M544E-A594A-7K8Z7 (Sample only. This key is neither an active nor an expired license key)

SCM Administrator

The domain user who will log into the SCM Administration Center

mydomain\scmadmin

SCM Server

The server where the SCM components will be installed.

SCMDEMO

SCM Database Server

The SQL server instance on which the SCM database will be installed.

SCMDEMO

Temporary Folder

Full path of the folder that will contain the files during analysis.

C:\ProgramData\Metalogix\Sensitive Content Manager\Storage

info

NOTE: The root folder ProgramData is a Microsoft recommended folder to be used for application data that is not user specific. It is a hidden and shared folder for all users of the computer.

SSL Certificate friendly name

name of the self-signed certificate that secures all communication with the SCM web server.

scmdemo.mydomain.com

Host Name

The host name of the administration web site for the SCM. Specify a fully qualified domain name.

scmdemo.mydomain.com

Admin Portal Port

The port number for the SCM Administration Center. Specify a unique port number between 1 and 65535. The port number cannot be a duplicate or a reserved port number.

44300

Admin Service Port

The port used by the Admin service to request various admin information. Specify a unique port number between 1 and 65535. The port number cannot be a duplicate or a reserved port number.

44301

Result Service Port

The port used for REST calls to request the results of the file analysis. Specify a unique port number between 1 and 65535. The port number cannot be a duplicate or a reserved port number.

44302

File Upload Service Port

The port used for REST calls to submit files for analysis. Specify a unique port number between 1 and 65535. The port number cannot be a duplicate or a reserved port number.

44303

Profile Service Port

The port used for REST calls to manage profiles. Specify a unique port number between 1 and 65535. The port number cannot be a duplicate or a reserved port number.

44304

Subquestion Service Port

The port used for REST calls to manage search terms associated with the profiles. Specify a unique port number between 1 and 65535. The port number cannot be a duplicate or a reserved port number.

44305

Scan Service Port

The port used for REST calls to submit, cancel or delete scans and get information about running scans and reports. Specify a unique port number between 1 and 65535. The port number cannot be a duplicate or a reserved port number.

44306

Notification Service Port

The port used for REST calls to send system notifications. Specify a unique port number between 1 and 65535. The port number cannot be a duplicate or a reserved port number.

44307

Analytics Service Port

The port used for REST calls for analytics. Specify a unique port number between 1 and 65535. The port number cannot be a duplicate or a reserved port number.

44308

RabbitMQ connection string

Required if a pre-configured instance of RabbitMQ and Erlang exists on another server.

Connection string as required. Contact your Quest Technical Support for further assistance.



Steps to setup the SCM Server

1.Log in to the SCM Server. For example, log in to SCMDEMO using the SCM Administrator credentials (mydomain\scmadmin).

2.Download and unzip the install media files to a local folder.

3.Click the windows installer file Metalogix Sensitive Content Manager.exe. The Prerequisites window opens if the installer determines that one or more prerequisites are required.

img-0010

4.Click Install. When the prerequisites are installed, the Welcome to Metalogix Sensitive Content Manager Setup Wizard window opens. If the appropriate prerequisites are already installed, this is the first window that opens.

img-0012

5.Click Next. The License Agreement window opens.

img-0014

6.Click the check box I accept the terms in the License Agreement to activate the Next button. Click Print to print the License Agreement.

7.Click Next. The Component Selection window opens. Select Typical for a standalone installation.

img-0016A

8.Click Next. The Product Licensing window opens. In the License Key field, enter your license key.

img-0018A

9.There are two options available to activate your license. The online activation steps are described here. See Steps to activate your license offline for more information about offline license activation.

a.Select Activate Online.

b.Click Activate License. If the license activation is successful, a confirmation message opens.

img-0026

c. Click OK. The status License not activated on the Product Licensing window changes to License activated. Verify your license details as they will differ from the license details shown here.

10.Click Next. The Destination Folder window opens. Click Browse to change the destination folder if necessary. If you change the destination folder ensure that the folder exists on this computer and there is no restriction to reading or writing to the new folder.
img-0028

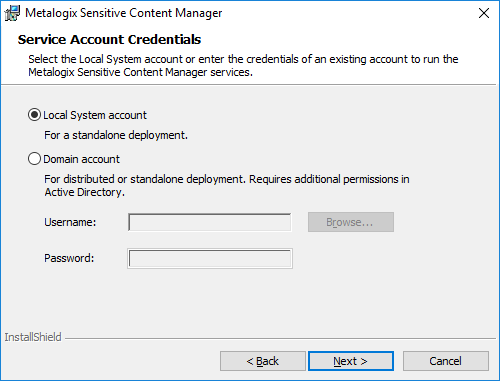

11.Click Next. The Service Account Credentials window opens.
img-0030

12.Choose Local System Account or Domain account. If you choose Domain account, enter the credentials of a domain user that will be used to run the windows service.

info

NOTE: The domain user must have read/write permissions to the Service Connection Point in the active directory. For more information see Steps to grant additional privileges to the SCM Administrator.

13.Click Next. The SQL Server Information window opens.

img-0032A

Enter the values as described below:

a.SQL Server - the name of the SQL Server instance where the SCM database will be installed. For a standalone deployment the SQL Server is the same as the SCM Server.

b.Connection options:

i.Windows authentication - SQL Server validates the account name and password using the Windows principal token in the operating system. The user must have log in rights to the SQL Server instance with security admin and dbcreator roles assigned. This is the recommended authentication option.

ii.SQL authentication - uses the user credentials stored in SQL Server that may not be based on Windows user accounts. The user must have log in rights to the SQL Server instance with security admin and dbcreator roles assigned.

14.Click Next. The Service Bus Installation window opens. SCM uses RabbitMQ as the service bus.

img-0033

Choose from one of the following options:

a.Select I want the installer to install and configure Erlang and RabbitMQ on this machine with the default configuration if you don't have an existing instance of the service bus. The installer will install the necessary files and dependencies at the end of the install process and create a certificate with the necessary credentials to operate RabbitMQ.

b.Select I will provide the connection string for the RabbitMQ installation if you already have a preinstalled instance that you have configured. When you click Next with this option selected, the Service Bus Connection Information window opens. Specify the RabbitMQ connection string.

img-0033A

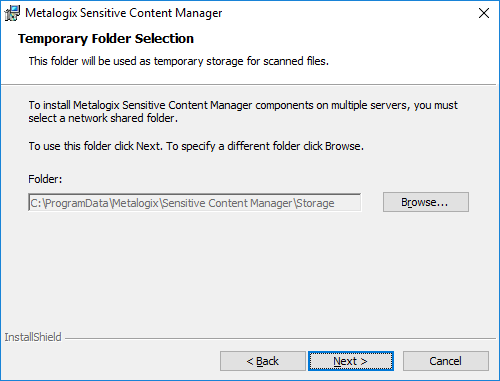

15.Click Next. The Temporary Folder Selection window opens. The default temporary folder is specified. You can use the same folder or click Browse to change to another local folder. If you change the temporary folder, ensure that the folder exists on this computer and there is no restriction to reading or writing to the new folder.

info

NOTE: We recommend selecting a location on SSD or other fast access storage. The location will be heavily used and fast access storage can significantly improve file analysis

img-0034

16.Click Next. The Admin Portal Configuration window opens.

a.Click the drop-down box for the SSL Certificate field and select <Create Self Signed Certificate> option. The SSL Certificate Name window opens. Enter a friendly name and click OK. The IIS Web Site Information window reopens with the specified SSL Certificate name.

img-0036A

b.For the Grant Access to AD Group, click Browse to open the Select Group window. Enter the Active Directory group (for example, SCM Users) in the Enter the object name to select field and click Check Names. When the Active Directory group is verified, click OK to add the group.

img-0037A

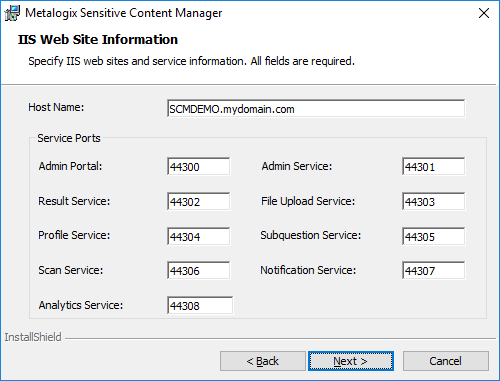

17.Click Next. The IIS Web Site Information window reopens with default port specifications for each IIS service. If you choose to change the default port numbers, ensure that the port numbers are within the range 1 to 65535 and they are unique and available for use.

img-0038

18.Click Next. The Ready To Install window opens.

img-0062

19.Click Install. The Erlang third-party component installer starts. You must allow additional Microsoft redistributable components to be installed if requested by the installer.

img-erlang-10

20.Keep the defaults as indicated and click Next. The Choose Install Location window opens. Click Browse to change the location if necessary.

img-erlang-12

21.Click Next. The Choose Start Menu Folder window opens. Keep the defaults as indicated and select Do not create shortcuts to avoid shortcuts.

img-erlang-14

22.Click Next. The Installation Complete window opens when the installation is successful. You must allow additional Microsoft redistributable components to be installed if requested by the installer.

img-erlang-16

23.Click Close. The RabbitMQ installer starts. Keep the defaults as indicated.

img-rabbit-10

24.Click Next. The Choose Install Location window opens. Click Browse to change the location if necessary.

info

NOTE: Only the code files for RabbitMQ are installed here. When you change the location, the code files will be installed in the new location.

RabbitMQ configuration and data files are installed in the %PROGRAMDATA%\RabbitMQ folder. If the Metalogix Sensitive Content Manager temporary storage folder and the RabbitMQ configuration and data files are installed on the same drive then a heavy demand for resources could cause SCM to pause operations unexpectedly. To avoid this issue, you can manually move the RabbitMQ configuration and data files to an alternate drive after installation is complete. For detailed steps see Relocating the RabbitMQ installation directory.

img-rabbit-12

25.Click Next. The Installation Complete window opens when the installation is successful. Click Show Details to inspect the RabbitMQ installation locations.

img-rabbit-14

26.Click Next. The confirmation window opens.

img-rabbit-16

27.Click Finish. The rest of the SCM components and any prerequisites will be installed. If the installation is successful, the SCM Setup Wizard Completed window opens.

img-0042

28.You can select the check box Show the Windows Installer log which opens the installation log file for reviewing or troubleshooting the installation. Click Finish to exit the wizard.

29.A shortcut is added to the desktop.

img-0049



Steps to verify the standalone installation

1.Log in to the SCM Server (e.g., SCMDEMO)

2.Double-click the desktop shortcut to open the SCM Administration Center. You can also enter the URL directly in a browser. To get the URL for your own installation see Steps to get the URL for the SCM Administration Center.

3.In the Sign in dialog that opens, enter the credentials of the SCM Administrator.

img-0051

4.Click Sign In. The Dashboard page opens.

5.From the navigation pane, expand Activity and then click Services Health.

a.Verify that the software version at the bottom of the navigation pane is the expected upgrade version.

b.Verify that all services indicate Status = Up.

img-0055

6.This completes the verification of the standalone SCM Server deployment.
