Replicator 7.4 - Product and Concepts Guide

Metalogix Replicator Reference Architecture

The following diagrams illustrate the Metalogix Replicator Reference Architecture used to explain how Replicator operates as well as provide a concrete example that is referenced in the Metalogix documentation and training courses.

info

NOTE: The diagrams below are used for reference only.  They are not intended to represent best practices from a SharePoint deployment and configuration perspective.  For example, the DNS, Active Directory and SQL Server, servers should be installed on their own - both physical and virtual servers.  The File Server, used for Replicator's export, import and cache folders, should use high reliability storage (RAID 1 mirrored drives or higher).

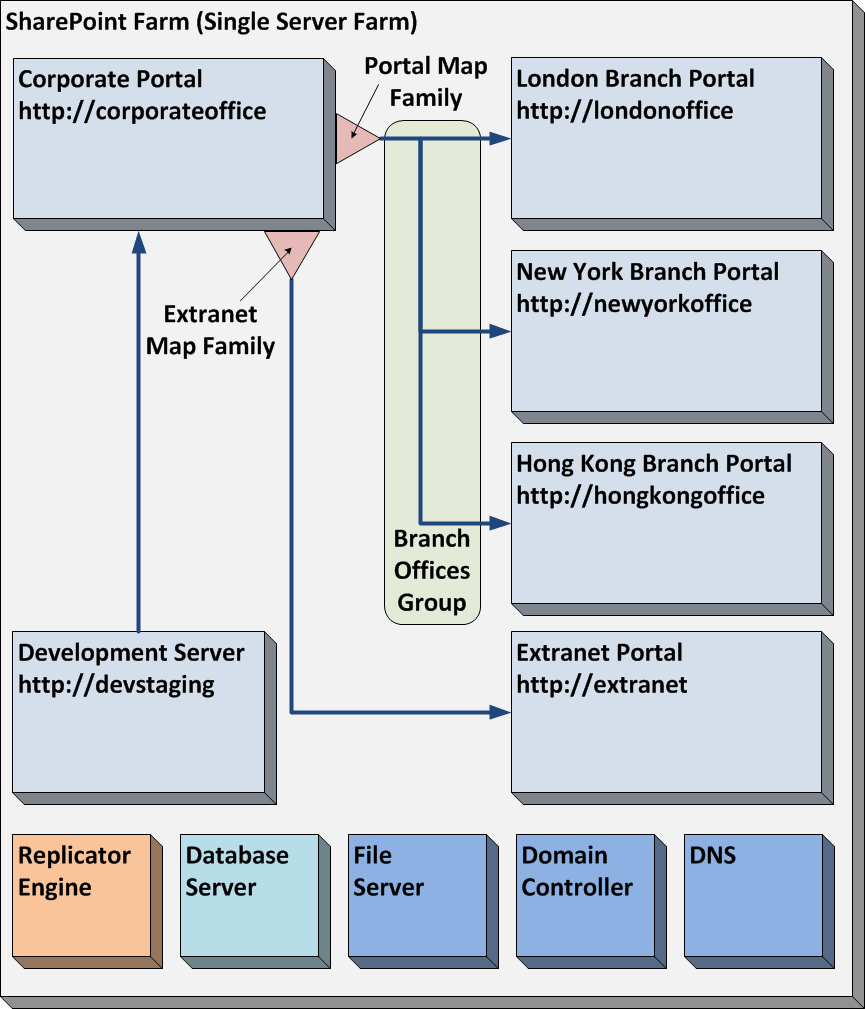

Metalogix Replicator Logical System Architecture

The following diagram depicts the Metalogix Replicator Logical System Architecture.
METALO~2_img7

Metalogix Replicator Physical System Architecture

The following physical system architecture is useful for configuring evaluation lab and training course environments.

METALO~2_img8s
