Dashboard location and UI elements

After installing Quest Protect Dashboard, the Protection entry appears under Homes.

To access the Protection dashboard:

1

Log in to the Foglight browser interface.

2

Ensure that the navigation panel is open.

To open the navigation panel, click the right-facing arrow

3

On the navigation panel, under Homes, click Protection.

The Protection dashboard opens.

The Protection dashboard consists of the following UI elements:

•

•

•

Group selector

The Group selector is located at the top of the dashboard and allows you to select the Protection environment that you monitored.

Figure 1. Group Selector

Menu bar

The Menu bar contains the following tabs:

•

Rapid Recovery: Getting Started Tab - Rapid Recovery, Protected Status Tab - Rapid Recovery, Repositories Capacity Planning Tab - Rapid Recovery, Rapid Recovery Infrastructure Tab, Events Tab - Rapid Recovery, and Administration Tab

•

Veeam: Getting Started Tab - Veeam, Protected Status Tab - Veeam, Repositories Capacity Planning Tab - Veeam, Veeam Infrastructure Tab, Jobs Tab - Veeam, and Administration Tab.

Figure 2. Menu bar

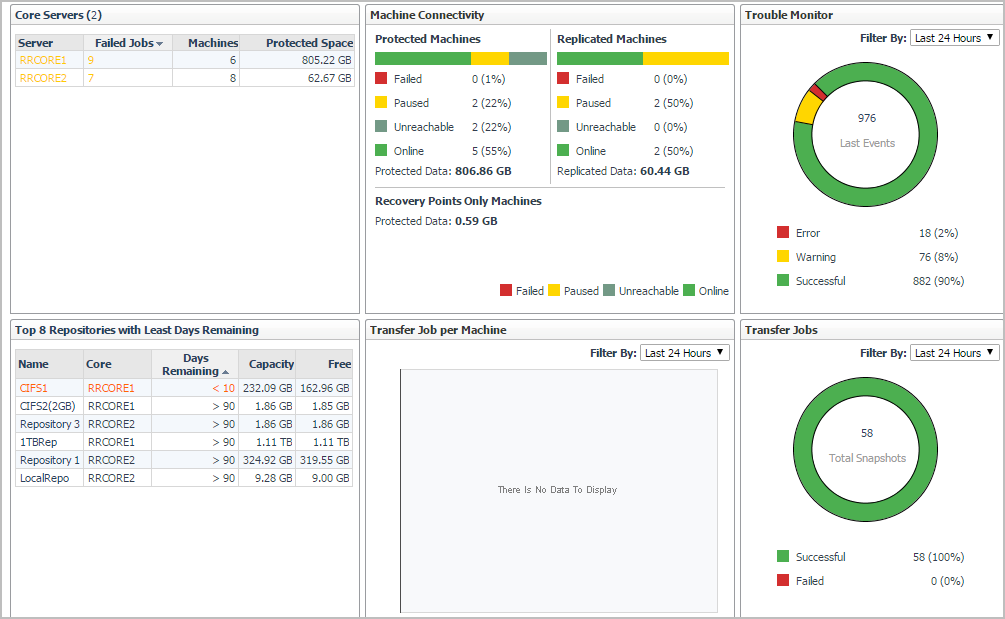

Quick view

The quick view is located on the lower part of the Protection dashboard, which is updated based on the tab selected on the menu bar.

Figure 3. Quick view
