Nova Current - User Guide

Creating a custom chart widget

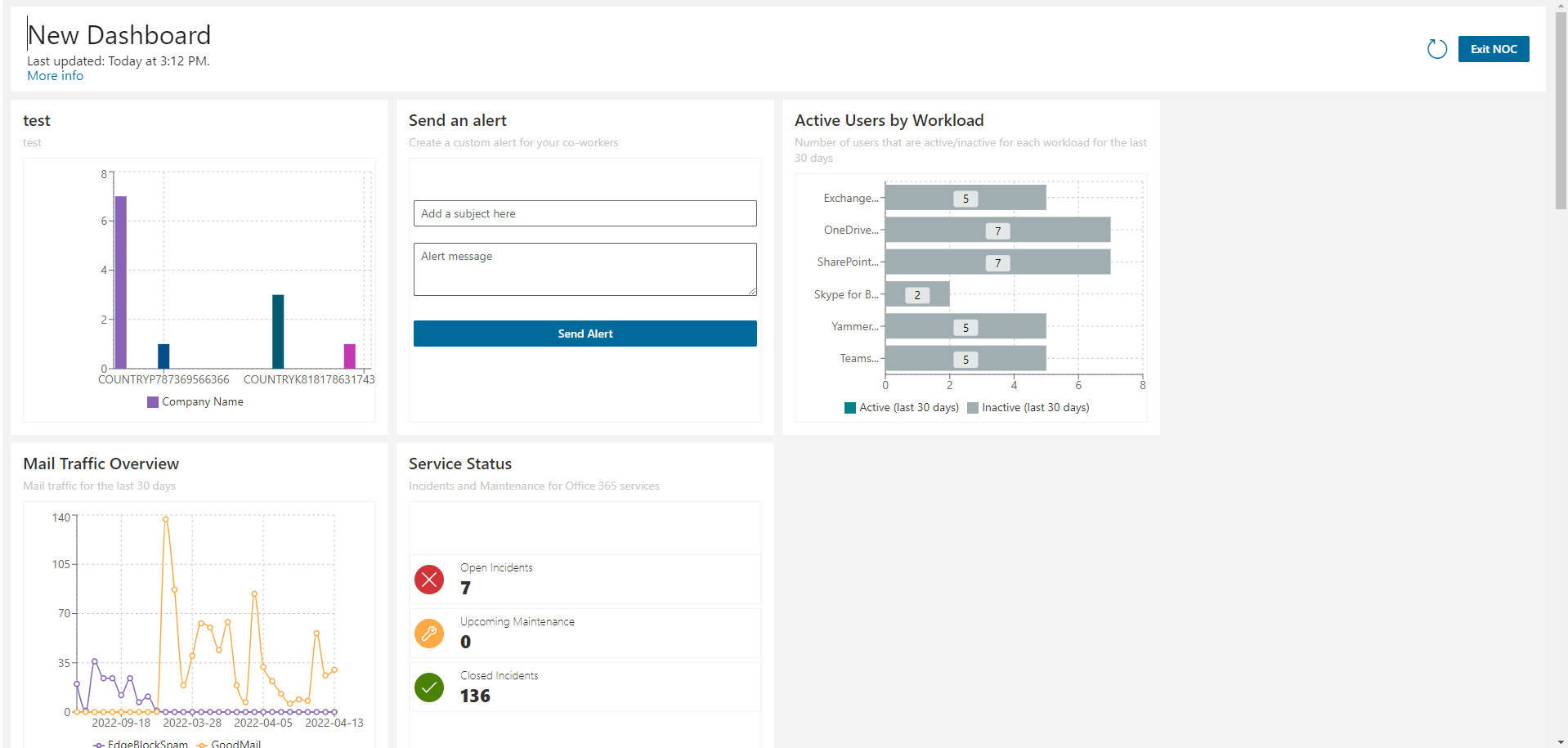

Adding a custom chart widget to your dashboard follows similar steps as creating a section of a chart and pivot report, which will be covered later. This section will appear on your dashboard, which you can customize to your needs. To do that:

1.On the dashboard, click Edit in the top right hand of the screen.

2.Click Add widgets, then Configurable Chart Widget.

3.Enter a Widget title and a Widget sub-title if appropriate. Optionally, you can link your widget out to a report from within the Report Center.

4.Select a data source from the drop down list.

5.Select an organization and organization group, if applicable to your environment. These help to narrow down the scope of your reports.

6.Select a chart type. You can read more about chart types in the Quest Nova Reporting Guide.

7.Once you have selected your chart, choose an Operator. Operators are:

a.Average: This is calculated by dividing the total of all of the values by the number of values.

b.Count: The quantity of values in a data set.

c.Sum: The result of adding together the values in a data set.

d.Min: The smallest value.

e.Max: The largest value.

8.Select an Applied to data field. This is your Y axis. You can use the search boxes to find the exact data field you need, or filter by data type or data source.

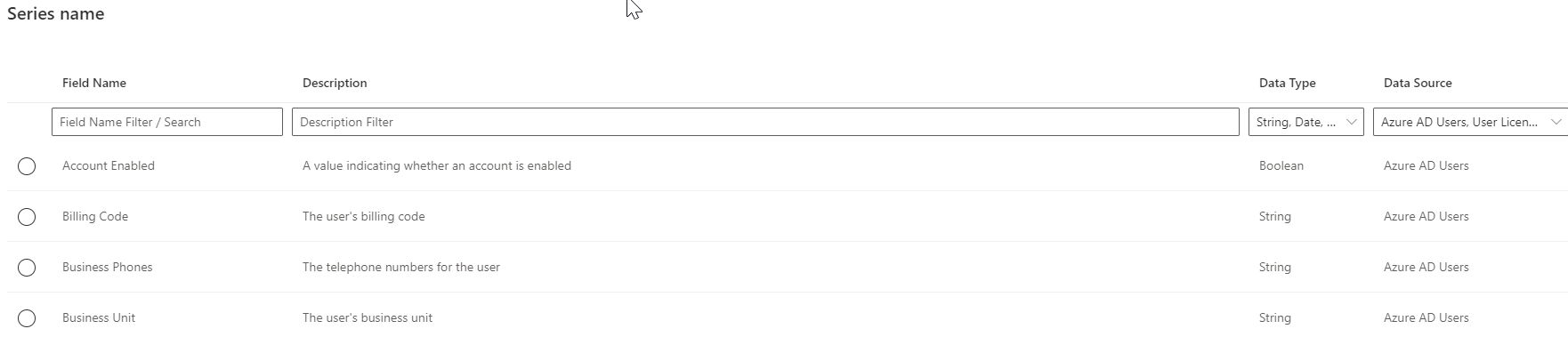

9.Choose a Series name data field. This is your X axis. You can search for this the same way as the step above.

10.Optionally, choose a category. You can search for this the same way as step 8.

11. Add a filter group, if desired. Filtering allows you to narrow down the scope of your report. For example, you may only want to view users within a certain department or geographical location.

12.You can sort your data, if needed. Similar to step 8, you can search for a data field you would like to sort by ascending or descending order.

13.Set an offset. This is the starting record of your widget.

14.Set a limit. This is the maximum number of records returned within your widget.

15. Select or deselect Overflow. This gathers data outside your limit into one section of a chart.

16.Choose your drill down fields.

17.Click OK, and your widget should appear in the dashboard. Click Save in the top right hand corner to finish the section.

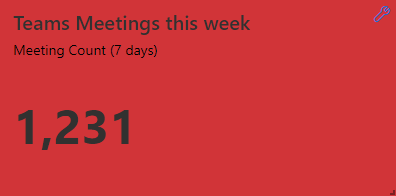

Adding a card widget

If you would like to see a card presented on your dashboard, follow these steps:

1.From the dashboard, click Edit in the top right hand of your screen.

2.Click Add Widgets and select Card Widget.

3.Name your widget, and give it a title if necessary.

4.Create your card as you would with the steps above, and click OK.

Your card should now appear within the dashboard. If you have set analytics on your card, your card should display the color affiliated with the analytic you inserted.

Nova Report Center

Microsoft has several different interfaces for tools used to perform Microsoft 365 management, reporting, and auditing tasks. In contrast, Nova users perform that work in a single user interface.

To achieve this, Nova gathers reporting and auditing data from Microsoft 365. Reporting data is collected about every 24 hours and auditing data is received from Microsoft when it becomes available. This data is stored in Nova for as long as the organization remains a subscriber, which is much longer than Microsoft typically stores this data in Microsoft 365.

The flexibility and power of the Nova Report Center is ideal for organizations with custom reporting needs that can not be fulfilled by the standard reports available in Nova. To create a report with the Report Center, you specify:

1.How you want the report to look. You decide what sections the report contains. Will it have charts, graphs, maps, or tables that will display the information?

2.The types of data the report will display. These are called data sources.

3.Any filters you want to apply against the data sources. For example, your data source might be a list of Microsoft Entra ID users. You might want to filter that list, so your report only shows users in North America or a certain department.

Just like other Nova reports, the reports created using Report Center can be saved, scheduled, and shared. If you do not want to build an entirely new report, you could even clone an existing report and customize it to meet your new needs.

Here is more about the steps to set up a custom report:

Step 1: How will the report look?

Give a custom report structure by adding sections to control how it looks.

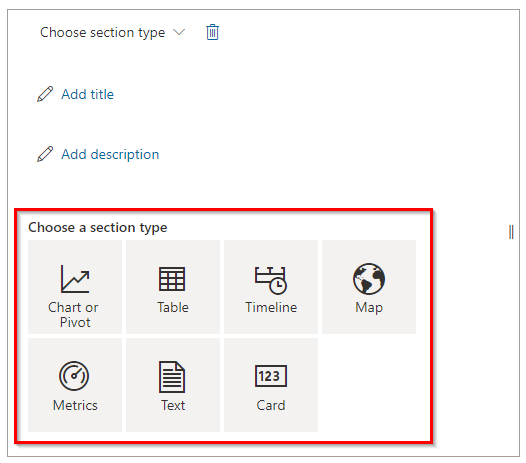

Here is where you select what section you will add to your report:

As sections are added to a report, you are asked to define the data source information you want to display in that section. The sections control how a custom report looks and the data sources give the report substance.

You can make sections display larger or smaller on the report, or you might drag and drop a section to another location on the report.

Step 2: What is the data source?

Reports created using Report Center are just templates, or shells. The service needs data for the shell to become a useful report. Nova gathers data from a variety of services, as described earlier in this section. Then, that data is collated, filtered, and displayed in the report.

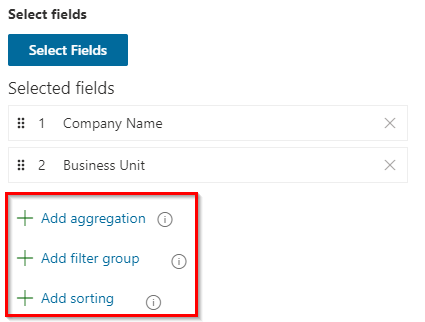

After a data source is selected, you are asked to choose which fields related to the data source will display in the report. The report's data sources control what fields display and how they interact with other data sources on the report. Here is an example of a screen where you select the fields that display in a section:

For more about data sources, go to this section.

Step 3: Do you want to filter or sort information displayed in a section?

You might add a filter to a section to show only a subset of data source information. For example, you could add a filter based on geography, so only users from a certain location display. You could add a filter that results in displaying a list of users from a specific department. Or, you could add a filter based on dates, so records older than X are filtered off the report. These are just a few examples. An organization can customize these to their specific needs.

You can also apply a sort order to a section. This is especially useful for table sections that show a list of information. For example, you can sort a list of users last name in ascending order, or you can sort that same list of users by who they report to.

These filters and sorts are saved as part of the report definition, so you will only have to configure them once.

To filter by date, check out this section.

Report Center terminology

If you are just getting started with the Nova Report Center, you may be unsure of some of the words and phrases that you encounter. Below are some common words and phrases related to Nova Report Center, along with descriptions.

It is important to differentiate what is meant between a section of a report and the report itself.

·A Section of a report are the individual charts, graphs and tables themselves. You can have one or multiple sections in a report.

·A Report is where individual data sections can be created, modified and stored.

Data sources

Data sources drive reports. They are the sets of information used to build reports. Choose a data source that is representative of the type of data you want to display. If you can not decide on a data source, you can clone one of the system reports to get started. To see more on data sources, click here.

Organization

You can narrow the scope of your report to a specific organization within your tenant.

Organization Group

Select an organization group to further narrow the scope within your report.

Add Aggregation

For table reports, you can aggregate fields to get a specific count for that field. For example, let us say you want to quickly see how many Microsoft Entra ID users have been assigned to each department within your organization. You can do this by selecting Department as your table field, then select Add aggregation, then choose Display Name with Count as your operator. The amount of users within each department displays. This is useful if you need to know the number of objects within a data field.

Add Filter and Add Sorting

Filters and sorting are explained above. Note that you can use up to 5 filters within each section of your report. To learn more about filtering, click here.

Offset

Set the starting record by applying an offset.

Limit

This is the highest number of results shown within the report. For example, if you have a limit of 20, then 20 entries display. Note that if you choose to download your report, the limit will be ignored and all data is shown.

Enable Paging

Useful for large data sets, paging allows you to see a select number of results per page before you need to move to the next page for more results. If this is disabled, all data displays in one table without having to page through results. If the report is downloaded, it will not be organized into pages.

Overflow

It is likely that your pie/bar chart will have a lot of data to show, resulting in a complex report that's not easy to analyze. Overflow aggregates calculations outside of your limit into one specific bar or pie wedge. For example, if you have a limit of 6 wedges or bars, any data from outside of your 6 biggest wedges or bars will be calculated and formed into one bar or wedge.
