Viewing job activity

You can monitor the progress and status of your jobs from the Job Status page. You can also use this page to manage your jobs and perform various job-related tasks.

2
On the Job Status page, you can view the following information.

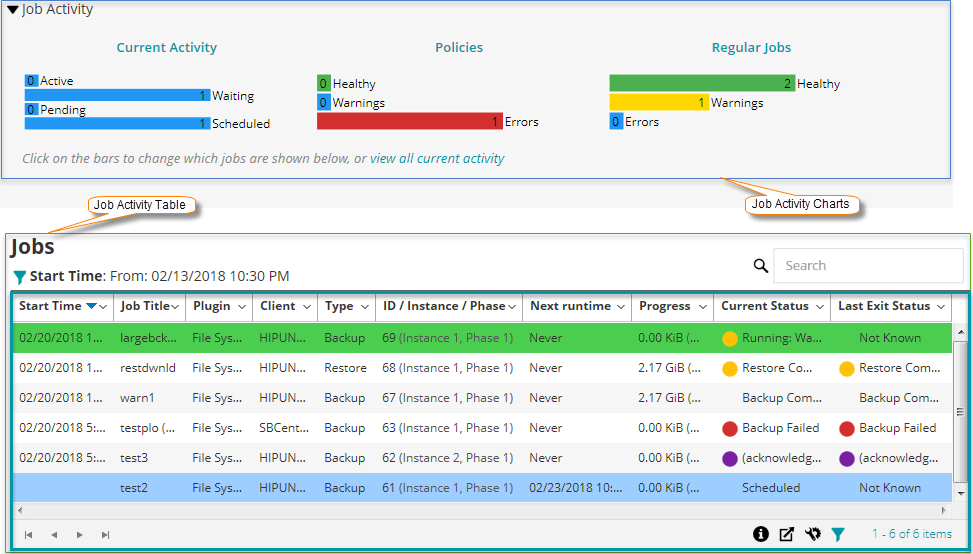

Figure 21. Job Status page

Table 65. Job Status page

Job activity charts

This area shows the summary for current jobs, policy jobs, and regular jobs in the form of bar charts:

Current Activity: The individual bars represent the number of jobs that are in active, waiting, pending, and scheduled states.
Policies: The individual bars represent the number of policy jobs that have completed successfully, completed with warnings, and failed. The Healthy count of policies shows the number of policy jobs that have completed successfully when all the jobs in the policy are successful. It shows 0 count if one or more jobs in the policy have warnings or errors.
Regular Jobs: The individual bars represent the number of regular jobs that have completed successfully, completed with warnings, and failed.

You can click a job activity to display the job details for that category in the job activity table. For example, you can click Policies in the Job Activity area to display the policy jobs in the job activity table.

You can click a bar in the activity chart area to display the job details for that category in the activity table. For example, you can click the Active bar in the Current Activity area to display the jobs that are in progress.

To return to the default view type for the activity table, click the View all current activity link.

To hide the job activity statistics on Job Status page, follow these steps:

In the header pane of NetVault WebUI, click the Settings icon and select Application Settings. Application Settings drawer is displayed on the right- side of the page.
In the Hide Job Statistics option, select Hide the Job Activity Statistics check box.

Job activity table

By default, the table lists all current job activities (All activity category).

For the All Activity category, you can view the following information: Start Time (also shows start date), Job Title, Plugin, Client, Type, ID/Instance/Phase (shows the instance and phase), Next runtime (date and time when the next instance is scheduled to run), Progress (current or average transfer rate), Current Status (current status of a job instance), and Last Exit Status (exist status of latest completed job instance).

You can also add or remove following additional columns using the column menu: Policy Name, ID (shows only the job ID), Instance (shows only the job instance), Phase (shows only the job phase), Selection Set, Plugin Options Set, Schedule Set, Source Set, Target Set, Advanced Options Set, Duration (Displays the time in hours: minutes: seconds to complete the operation for backup/restore/reporting). For more information, see Sorting records in NetVault WebUI.

The following job status light icons are displayed in the current status and last exit status columns based on the exit status:

Red light: Aborted, Died, Failed, Did not run
Yellow light: Warnings, Stopped, and Waiting for media
Violet: Acknowledged

The following row background colors are displayed for a job based on current status:

Green: Running
Blue: Scheduled

You can change the view type and also filter the records displayed in the table:

Change the view type: To view the job details for a different job category, click the corresponding bar in the activity chart area. For example, to view the jobs that have completed with warnings, click the Warnings bar in the Regular Jobs area.

To set the filter options (For more information on table filter options for Job Status page, see Table 7), view the page size setting, column sort order, applied filters in the table, export the records, or edit table settings, click the icons at the lower- right corner of the table.
4
You can use the Search option to filter the table data and quickly find entries that contain the specified string in any column values. You can also include wildcards (“?” or “*”) in the search filter string.

Viewing job calendar

You can view your jobs for a month, a week, or a day on a calendar. It can be helpful to view your jobs in the calendar format to ensure that there are no scheduling conflicts. You may want to verify the calendar before you create a job. You can monitor the progress and status of your jobs from the Job Calendar page. You can also use this page to manage your jobs and perform various job-related tasks.

2
On the Job Calendar page, you can view the following information.

Settings icon

Click this icon to display the job calendar settings. ‘Calendar settings’ drawer is displayed on the right- side of the page showing the following options:

Filter By Status: This area shows the following filter options based on the job status:
Scheduled: To display the scheduled jobs, click this button.
Active: To display the in-progress jobs, click this button.
Success: To display the jobs that have completed successfully, click this button.
Warnings: To display the jobs that have completed with warnings, click this button.
Errors: To display the jobs that have failed, click this button.
Timeslot Size: For Weekly and Daily view, you can set the time granularity for the jobs on calendar using Timeslot Size field.

Job Calendar

This area displays the jobs on the calendar based on Filter By Status and Timeslot Size settings.

You can view your jobs for a month, a week, or a day on calendar. By default, weekly view of the Job Calendar is displayed. To display monthly view, click ‘month’ or to display the daily view, click ‘day’.

Monthly view: Displays the jobs for the month. The height of the job is fixed in this view.

Weekly view: Displays the jobs for a week. The height of the job is corresponding to the time taken to run the job.

Daily view: Displays the jobs for a day. The height of the job is corresponding to the time taken to run the job.

The Red color line on the Job Calendar shows the current time.

Move the pointer over a job to see the job summary such as job title, start time, end time, and so on.

Managing jobs

This section includes the following topics:

Running a job immediately

You can use the Run Now method run an existing job immediately.

1
In the Navigation pane, click Job Status or Manage Job Definitions.

If a backup job includes Phase 2 jobs, selecting Phase 1 runs both Phase 1 and Phase 2 jobs. Phase 1 runs immediately, and when it completes successfully, Phase 2 is scheduled to run as per the job definition.
