VaultOS component
The Plug-in Offline Client includes a component known as VaultOS. VaultOS is a minimal OS that is used to boot a target DR client system to prepare it for backup or restore, depending on the plug-in in use. This minimal OS starts the target client, loads all applicable device drivers, and leaves its hard drive in a state suitable for either backup or restore.
There are two versions of the VaultOS, one that uses a Linux boot loader and one that uses a Windows Preinstallation Environment (Windows PE). The version that you choose to use also affects which Plug-in Offline Client features are available to use.
|
• |
Each version of the Plug-in Offline Client and Plug-in Live Client offers a specific form of the VaultOS; for example, the Plug-in Live Client for Linux system uses its own form of VaultOS. Details on the setup and use of this component are covered in the relevant topic of this guide. |
|
• |
NetVault Bare Metal Recovery deployment scenarios
This topic details deployment scenarios for the following NetVault Bare Metal Recovery products.
|
• |
|
• |
Plug-in Offline Client only x86/x86-64 clients with Windows-based NetVault Backup Server deployment
Plug-in Offline Client only x86/x86-64 clients with Windows-based NetVault Backup Server deployment
The Plug-in Server for Windows component is installed on the Windows-based NetVault Backup Server, and the Plug-in Offline Client is used to perform the backup and recovery of the Intel x86 Clients.

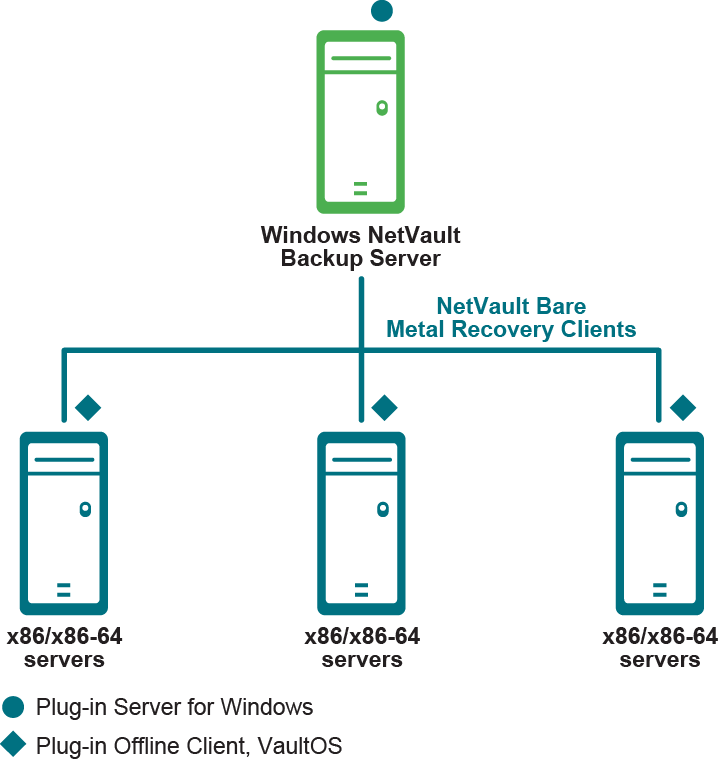

Figure 1. NetVault Bare Metal Recovery for offline only x86/x86-64 clients with Windows-based server
For more information, see Using the Plug-in Offline Client.

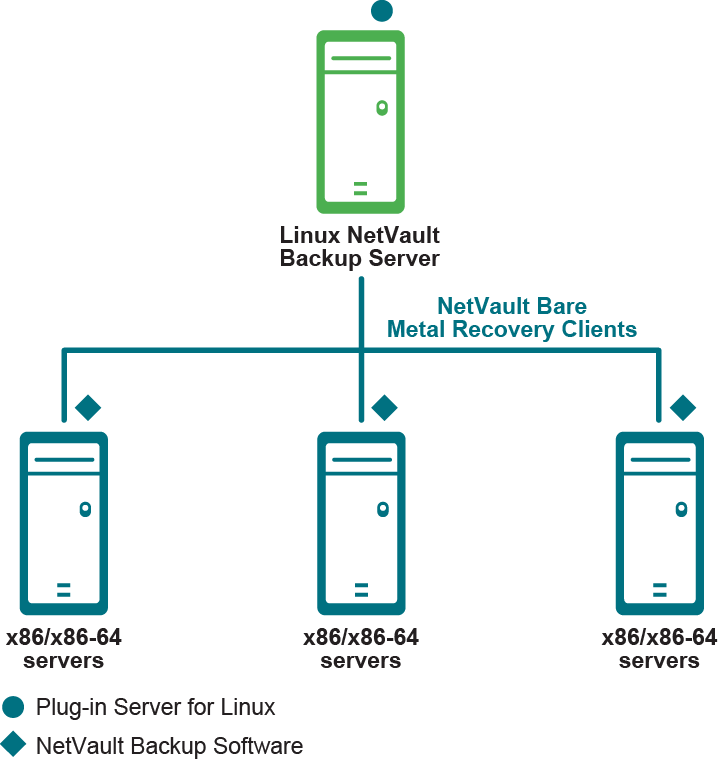

Plug-in Offline Client only x86/x86-64 Clients with Linux-based NetVault Backup Server deployment
Plug-in Offline Client only x86/x86-64 Clients with Linux-based NetVault Backup Server deployment
The Plug-in Server for Linux component is installed on the Linux NetVault Backup Server, and the Plug-in Offline Client is used to perform the backup and recovery of the Intel x86 Clients.
