HTML Element instructions

HTML Element instructions consist of the following:

•

Set Value: = (Checkbox)

•

Click Input(0) (Click Instruction)

•

**| Set Value: =*** (Input Password)

•

ab| Set Value: = (Input Text)

•

•

Set Value: = (Radio Button)

•

Set Value: = (Select)

Set Value: = (Checkbox)

A Set Value (checkbox) instruction sets the value of a checkbox element specified by the HTML Element Properties to the value specified in the Checked instruction property field.

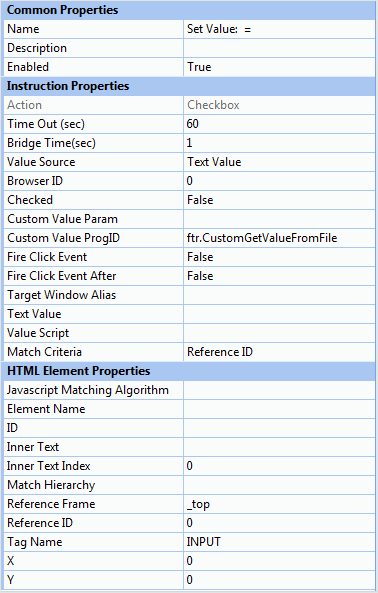

Figure 12. Set Value (checkbox) instruction

Refer to the following for additional information about property descriptions and values:

•

Common Properties

•

Instruction Properties

•

HTML Element Properties

Click Input(0) (Click Instruction)

A Click instruction causes the element specified by the HTML Element Properties to be clicked.

Figure 13. Click instruction

Refer to the following for additional information about property descriptions and values:

•

Common Properties

•

Instruction Properties

•

HTML Element Properties

| Set Value: =* (Input Password)

| Set Value: =*** (Input Password)

An Input Password instruction sets the value of a password input field element specified by the HTML Element Properties to the value specified in the Text Value instruction property field.

Figure 14. Input Password instruction

Refer to the following for additional information about property descriptions and values:

•

Common Properties

•

Instruction Properties

•

HTML Element Properties
