General settings

General Settings provides the following dialogs:

•

•

General

General settings allows you to set startup script, autosave, application theme, and browser tab positions.

Table 7. General Settings descriptions

Field or Button

Reload last project upon startup

Loads the last open script when starting the Foglight Transaction Recorder. True equals on and false equals off. The default setting is true.

AutoSave Transaction Properties

Automatically saves transaction properties after editing. The default setting is false.

Application Theme

Allows you to select the theme for the Foglight Transaction Recorder graphical user interface, including (Native XP, Office 2000, Office XP, and Office 2003.) The default setting is Windows Office 2003.

Browser Tab Position

Allows you to move the position of the Main Window tab. The default setting is top.

Allows you to choose between the following options:

•

Latest. Foglight Transaction Recorder uses the latest version of the Internet Explorer® browser mode (default).

•

Compatibility. Foglight Transaction Recorder uses the Internet Explorer browser mode, determined by the HTML server or the Internet Explorer browser.

NOTE: This operation takes effect after restarting the program or the agent.

Clears Foglight Transaction Recorder logs.

Displays Foglight Transaction Recorder cache, cookies, and logs.

Restores the currently displayed settings to the default settings.

Defaults

The Default dialog provides Expected Time Wizard and Instruction settings.

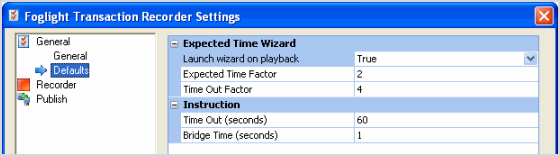

Figure 44. Defaults settings

Table 8. Default Settings descriptions
Section	Field	Description
Expected Time Wizard	Launch wizard on playback	Launches the Expected Time Wizard on playback of a script. True on. False off. Default setting True.
	Expected Time Factor	The wait time, in seconds, before a transaction is canceled. The default value is two.
	Time Out Factor	The time waited, in seconds, until the transaction times out. The default value is 60.
Instruction	Time Out (seconds)	The time, in seconds, the Foglight Transaction Recorder waits for something to happen. If the transaction time exceeds this value, the server is considered down and a critical error is flagged. The default setting is 60.
Instruction	Bridge Time (seconds)	The time, in seconds, the browser waits on a page to ensure that navigation to another page is not triggered. The default setting is one second.

Recorder settings

Recorder Settings provides the following dialogs:

•

•

•
