Foglight Hybrid Cloud Manager 7.3.0 - User Guide (for AWS environments)

If Monitor All is selected: By monitoring all virtual machines any virtual machine that is running in the monitored cloud will be monitored 24x7 consuming a monitored virtual machine license. Every virtual machine that is monitored will count against the purchased license pool. Any Monitored Virtual Machine that is above the purchased license limit will require an additional Foglight Hybrid Cloud Manager per Monitored Virtual Machine license.

•

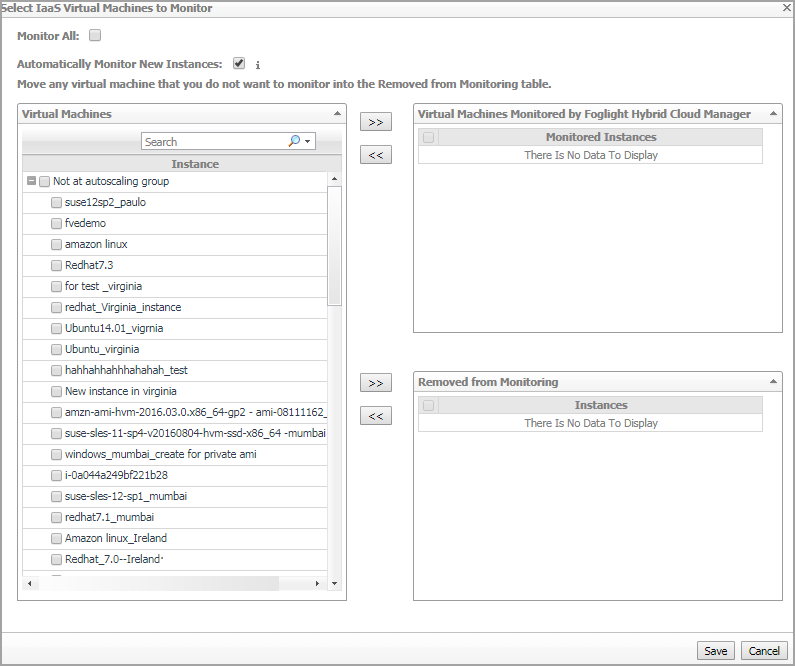

If Monitor All is not selected: The following view appears on the bottom of the Selected IaaS Virtual Machines to Monitor dialog box.

•

If Automatically Monitor New Instances is selected, select instances that you do not want to monitor, and then click >> to move selected instances to the Removed from Monitoring table.

•

If Automatically Monitor New Instances is not selected, select instances that you want to monitor, and then click >> to move selected instances to the Virtual Machines Monitored by Foglight Hybrid Cloud Manager table.

•

If the Removed from Monitoring and Virtual Machines Monitored by Foglight Hybrid Cloud Manager tables are empty, and Automatically Monitor New Instances is not selected, the AWS agent will not collect any instance data.

•

Configure Account Cost to Monitor:

Configure the Cost Metrics collection. Collections will start only after the AWS Cost and Usage Report are created on the AWS Console. See To create an AWS Cost and Usage Report.

•

Collect Cost Metrics: Select the check box to enable and configure the cost metrics collection. Collections will start only after the AWS Cost and Usage Report are created on the AWS Console. See To create an AWS Cost and Usage Report.

•

Configure Monitor Account: Click Configure to select the accounts for which costs should be monitored.

By default, Collect All Account Cost is selected. This will collect consolidated billing information for all accounts in a single organization. To manually select accounts for cost collection, clear Collect All Account Cost.

•

Select Account: When Collect All Account Cost is cleared, a list of AWS accounts in your organization will be displayed. Note that accounts will only be displayed after a successful data collection. In the AWS Account table, select the accounts to monitor and click

to add the accounts to the Target AWS account table.

Adding accounts: If the desired accounts do not appear in the accounts listed in the AWS Account table, you can manually add the account by clicking Add and supplying the Account ID (See To get Account ID (12-digit number) to get this value) and Account Name.

Note: Accounts added to the AWS Account table will not be saved unless they are moved to the Target AWS table.

•

Import/Export accounts: In addition to manually adding accounts, they can be imported (from a CSV file) to either the AWS Account or Target AWS Account table. Accounts can also be exported from the Target AWS Account table.

The CSV file should contain two columns :Account ID(12-bit Numbers) and Account Alias Name. See To get Account ID (12-digit number) for more information.

Note: Accounts imported to the AWS Account table will not be saved unless they are moved to the Target AWS table.

•

Click Save to save changes.

•

S3 Bucket for Cost and Usage Report: Enter the name of your S3 bucket according to the AWS Cost and Usage Report setting. See To create an AWS Cost and Usage Report to get this value.

•

S3 Bucket Region for Cost and Usage Report: Select the region of your S3 bucket according to the AWS Cost and Usage Report setting. See To create an AWS Cost and Usage Report to get this value.

•

Cost and Usage Report Name: Enter the name of your AWS Cost and Usage report. See To create an AWS Cost and Usage Report to get this value.

•

Cost and Usage Report Path: Enter the Report path prefix according to your Report setting. The value of Cost and Usage Report Path will be blank, if you don't set the Report path prefix in AWS. See To create an AWS Cost and Usage Report to get this value.

•

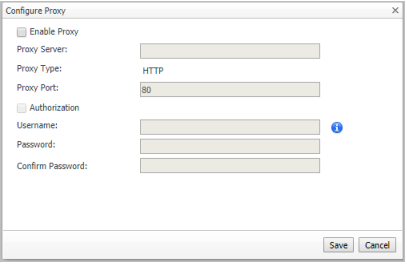

Configure Proxy (Optional):

Configure the proxy setting when the Agent Host requires a proxy connection to the Internet.

Select the Enable Proxy check box to enable the proxy settings.

Input the host name or IP address for the Proxy Server and input the Proxy Port number.

If the proxy requires an authorization, select the Authorization check box, and input the Username and Password.


	NOTE: In FIPS-compliant mode, if proxy settings are configured, you need to import the proxy server application root certificate into FMS KeyStore and FgLAM. For more information, see Managing certificates.

Click Save. The Edit Properties dialog box closes and the list of agent instances automatically refreshes in the display area.

Managing certificates

Syntax Conventions

In order to successfully make use of the Foglight commands in your monitoring environment, review the syntax conventions before getting started. The syntax conventions are as follows:

•

Generic examples follow the UNIX path structure that uses forward slashes '/' to separate directories.

•

Platform-specific examples follow standard platform conventions. For example, UNIX-specific examples use forward slashes ‘/’ as directory delimiters, while Windows examples use backslashes ‘\’.

•

<foglight_home> is a placeholder that represents the path to the Foglight Management Server installation.

•

<foglight_agent_mgr_home> is a placeholder that represents the path to the Foglight Agent Manager installation. This can be the location of the Foglight Agent Manager installation on a monitored host, or the home directory of the Foglight Agent Manager that comes embedded with the Foglight Management Server. For example:

Path to the Foglight Agent Manager installation on a monitored host (Windows):

C:\Quest\Foglight_Agent_Manager

Path to the embedded Foglight Agent Manager installation (Windows):

C:\Quest\Foglight\fglam

•

Unless otherwise specified, Foglight commands are case-sensitive.
