Configuring Generic SMI-S Array Agent to Monitor Storage Devices

During this procedure, you configure the agent to use SMI-S to collect from the Array Management Host that monitors the arrays.

To configure an agent to monitor the storage device:
1
On the navigation panel, under Dashboards, click the Administration > Agents > Agent Satus tab.
2
Click Deploy Agent Package.
The Storage Device Setup Wizard opens. Each of the following steps corresponds to one page in the wizard. Use the Next and Back buttons to navigate between pages.
a
On the Select Host Selector page, select the Host to host this agent.
b
On the Select Agent Packages page, select SMISStorageAgent.
c
On the Agent Configuration Summary page, review the agent configuration. You can go back and make corrections, if necessary.
d
Click Finish.
3
Click Create Agent.
The Storage Device Setup Wizard opens. Each of the following steps corresponds to one page in the wizard. Use the Next and Back buttons to navigate between pages.
a
On the Select Host Selector page, select the Host to host this agent.
b
On the Select Agent Type and Instance page, select SMISStorageAgent.
c
On the Agent Configuration Summary page, review the agent configuration. You can go back and make corrections, if necessary.
d
Click Finish.
4
Select the Agent to configure, click Edit Properties.
5
Modify the private properties for this agent.
6
Edit the following user-defined Properties, as needed:
•
Host: ip of the SMI-S,default 127.0.0.1
•
Port: port of the SMI-S, default 5989
•
Username: the user of the SMI-S
•
Password: the password of the SMI-S
7
Click Save.
8
Select the Agent that you want to activate, and then click Activate.



Managing Agents

After you create agents, you can check their status and alarms. Over time, you may need to edit configured agents. You complete these tasks on the Storage Environment dashboard under the Administration tab.

This section covers the following tasks:

•
Reviewing the Status of Configured Storage Collector Agents
•
Reviewing Agent Alarms
•
Editing Configured Agents
•
Deploying Storage Agents after an Upgrade

Reviewing the Status of Configured Storage Collector Agents

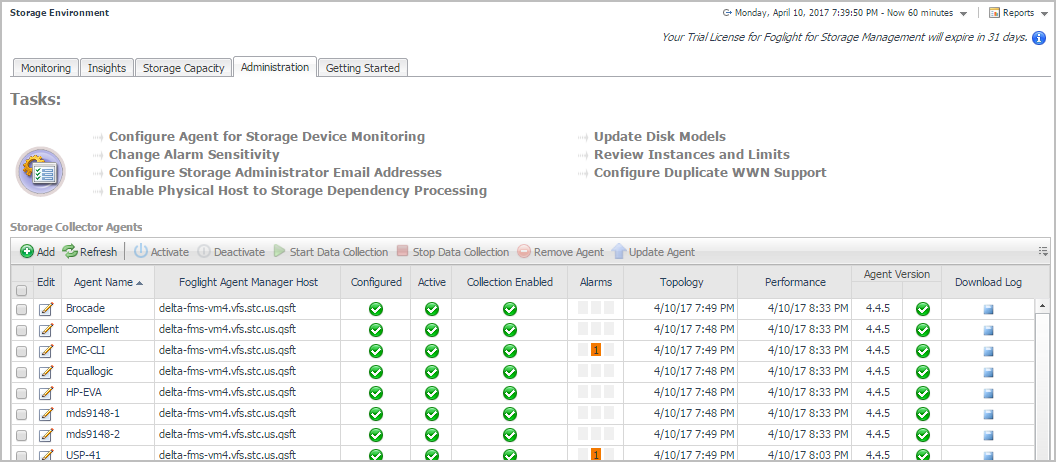

The Storage Collector Agents view displays all Storage Collector agents, their status, and current alarms on that agent.

If the Configured box is not checked, some aspect of the configuration is incorrect. The agent has not validated successfully and is unable to collect data. To correct the configuration, see Editing Configured Agents.

Figure 2. Storage Collector Agents view

Reviewing Agent Alarms

The Agent Alarms view shows the alarms that have been triggered, but not cleared for the Storage Collector agents. Failure to fix a chronic problem may cause the agent to stop collecting data. Note the following:

•
A Storage Collector agent alarm typically indicates a collection failure, and provides the reason for the failure.
•
A typical failure cause is that a password has been changed for a storage device, but the password in the associated credential has not been changed, leading to an authentication failure.
•
If you frequently get an alarm indicating a collection has timed-out, consider changing the agent schedule to collect less frequently. The Status panel on the Edit Agent Properties dialog box displays the duration of the last collection.

From this table you can select an alarm to view the alarm details.

To view alarm details or administer alarms:
1
Click on the required alarm.
The alarm message box opens.
2
After performing the required task, click Cancel.
The alarm message box closes.
