Foglight for SQL Server 5.7.1 - System Requirements

Agent Manager

It is recommended to increase the max-disk-space="102400" for following settings in large environments: upstream, upstream-verified, downstream.
Network throughput measured from the Agent Manager to the Monitored host average is 0.36Mbps per SQL agent.
.
*
NOTE: Edit the Agent Manager JVM settings in the baseline.jvmargs.config file located under Dell\Foglight Agent Manager\state\default\config\
Table 2. SQL Agents without SQL PI enabled.
# of SQL Agents
Memory
Foglight JVM settings (MB)
CPUs (2.4 GHz)
1-5
Xms|Xmx=256
1 core
6-10
Xms|Xmx=500
1 core
11-50
Xms|Xmx=1536
2 cores
51-100
Xms|Xmx=2048
2 cores
A single Agent Manager can host up to 100 SQL Agents.
Table 3. SQL Agents with SQL PI monitoring enabled


Machine
# of SQL Agents
Memory
Foglight JVM settings (MB)
Memory
CPUs (2.4 GHz)
1-5
Xms|Xmx=2048
4 GB
2 cores
6-10
Xms|Xmx=3072
6 GB
2 cores
11-50
Xms|Xmx=4096
8 GB
4 cores
A single Agent Manager can host up to 50 SQL PI-enabled Agents.
Concentrator Agent Manager

Table 4. Number of SQL agents supported through a Concentrator Agent Manager.
# of Agents
Memory
CPUs (2.4 GHz)
1-100
Xms|Xmx=2048
2 cores
101-200
Xms|Xmx=4096
2 cores

SQL PI Repository

Table 5. Store SQL PI associated data of SQL Agents with SQL PI enabled.
# of SQL Agents
Memory
CPUs (2.4 GHz)
1-5
2 GB
1 core
6-10
2 GB
2 cores
11-50
8 GB
4 cores
51-100
14GB
4 cores
101-200
2 SQL PI repositories
SQL PI Repository size is 1GB on the average and up to 2GB per agent. A single SQI PI repository can store SQL PI data of up to 100 agents with SQL PI enabled.
Machine Prerequisites
•
Operating system version - Windows Server 2008 and above
•
Operating system architecture - x64
•
Agent Manager available
It is recommended that you install the SQL PI repository on a dedicated machine.

Deployment Use Cases

All in One
•
All monitoring elements reside on a single machine.
•
Recommended architecture for up to 5 SQL agents (with SQL PI). Can be considered for more as long as the sizing requirements are met.

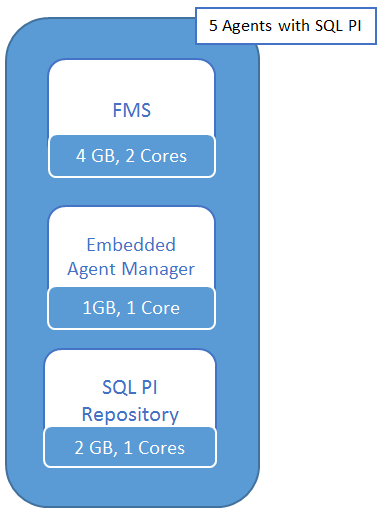

The following diagram describes 5 SQL agents with SQL PI monitoring.

Distributed
•
Monitoring elements are distributed amongst different machines. Architecture can be fully or partially distributed.
•
Recommended architecture for growing environments.

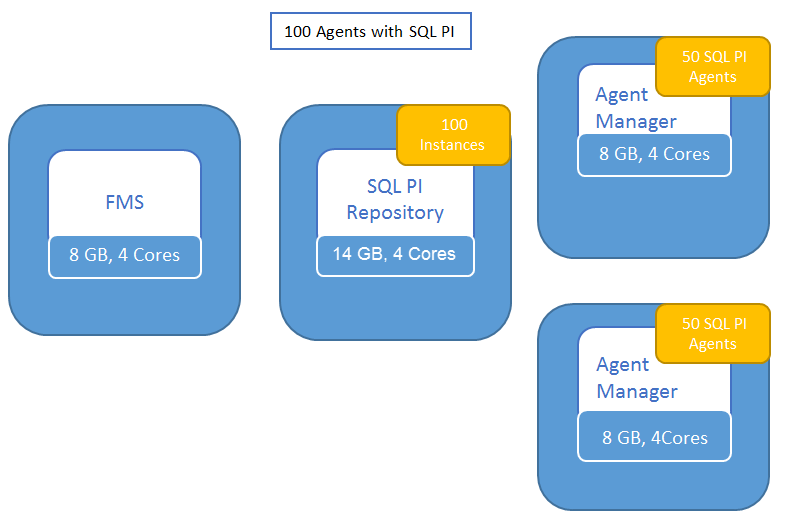

The following diagram describes 100 SQL agents with the SQL PI monitoring in the most distributed architecture (preferable in large or growing environments).
