Advisories Dashboard

The Advisories dashboard is provided to continually analyze application performance to identify performance inefficiencies, to guide you through problem resolution strategies, and to deliver a step-by-step action plan for maxmizing database performance.

The upper section of the Advisories dashboard includes general information on the monitored instance:

The lower section of the Advisories dashboard contains the following two elements:

Action Plan: Summarizes available advisories that present opportunities to increase the overall performance of your database.
Advisories: Lists advisories, action types, and the relevant descriptions. Click each advisory to view detailed analysis results, a complete description of the recommended action to be taken, and the background information of this tuning area.

Monitoring Data Replication

If the monitored SQL Server environment contains one or more instances that are configured as distributors (distributing instances) in a replication operation, Foglight for SQL Server now provides a replication monitoring module.

The Replication Available flag indicates if an instance is configured as a distributor in these ways:

Upon the configuration as a distributor for monitored instances. Instances detected as distributors appear with the button Go to the Replication Home Page () next to the Show quick view button on the Name column of the Databases table.

The replication home page can be accessed using one of the following methods:

Click the button Go to the Replication Home Page.

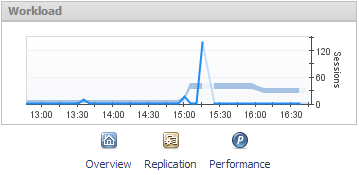

Click the Replication button on the QuickView panel.

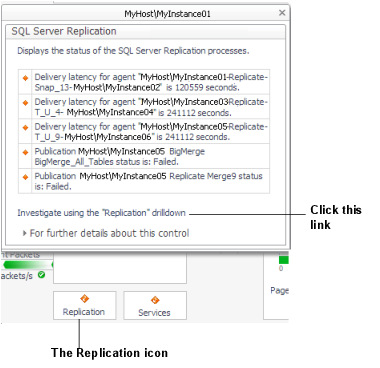

Click the link Investigate via Replication dashboard in the SQL Server Replication pop-up, which appears when you click the Replication icon under the Background Processes section of the instance's home page.

Viewing the Replication Home Page

The table identifies the main elements of the Foglight for SQL Server Replication Home page window, and provides a link to display more information, corresponding to the logical dataflow within the Replication Home page.

Replication-related alarms

Monitoring Alarms

Publications drilldown

Monitoring the Replication Publications

Agents drilldown

Monitoring the Replication Agents

Subscriptions drilldown

Monitoring the Replication Subscriptions

Publishing pane

Reviewing the Publishing Process

Distributor Agents pane

Reviewing the Distributor Agents

Subscription pane

Reviewing the Subscription Process

Data flow indicators

Reviewing Data Flow Indicators

The following provides a description of panes of icons and gauges in the main activity areas:

Reviewing the Publishing Process

The Publishing pane provides data regarding the following components of the publishing process:

Clicking this row displays a pop-up containing a table of all publication databases. This table is identical to the one shown when clicking the Publishing server row, except for the filtering by server, which is carried out by clicking the Server column.
IMPORTANT: Clicking each publication database’s row opens the Replication Publications drilldown, which only displays publications stored on the selected publication database. To view the entire list of publications from all publication databases, click the Publications toolbar button.
Clicking this row opens the Replication Publications drilldown, which allows reviewing publications by their type. For details, see Monitoring the Replication Publications .
