Foglight for SNMP 5.8.5.7 - User and Reference Guide

Running Processes tab

This tab displays name, path, CPU, and memory consumption for all the processes running on a device.
The Running Processes tab displays only when a host is monitored by an SNMP agent. If a host is not monitored by an SNMP agent then the Running Processes tab does not display.

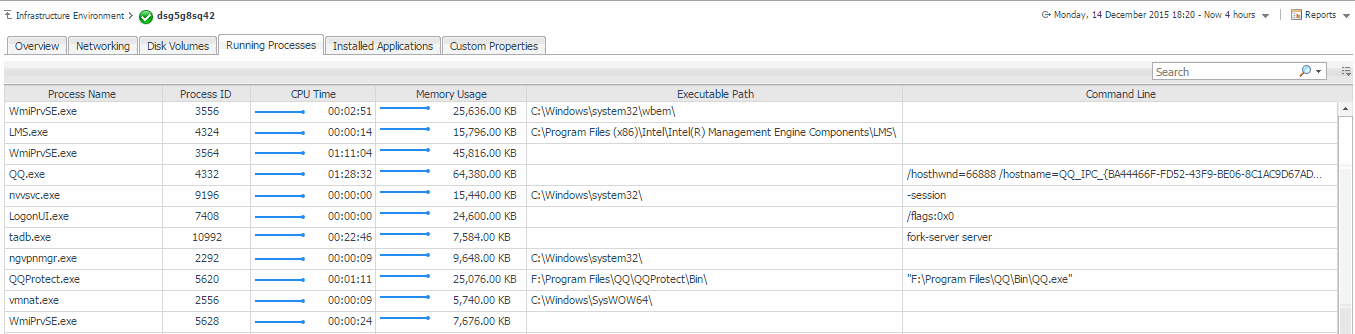

Figure 16. Running Processes view
The table is comprised of the following fields:
•
Process Name — The name of the process.
•
Process ID — The processes’ index ID found in the SNMP table.
•
CPU Time — The total CPU time used for the process.
•
Memory Usage — The memory resources in MB that the process is using.
•
Executable Path — The location on long-term storage from which this software was loaded.
•
Command Line — The parameters for the process.
To look for a specific running process, you can filter the list using the Search box.
Figure 17. The Search box.
How to get here
1
On the Infrastructure Environment dashboard, select a host monitored by an SNMP agent.
2
Click Explore.

Installed Applications tab

This tab displays a list of software applications installed on the selected host.
The Installed Applications tab displays only when a host is monitored by an SNMP agent. If a host is not monitored by an SNMP agent then the Installed Applications tab does not display.

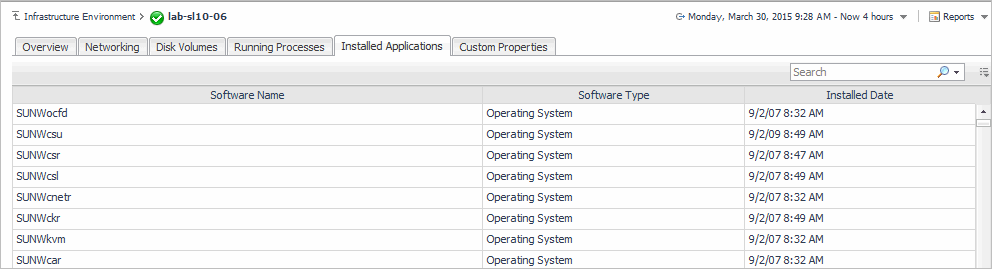

Figure 18. Installed Applications view
The table is comprised of the following fields:
•
Software Name — The name of the installed software.
•
Software Type — The type of this software.
•
Installed Date — The last-modification date of this application as it would appear in a directory listing.
To look for a specific installed application, use the Search box.
How to get here
1
On the Infrastructure Environment dashboard, select a host monitored by an SNMP agent.
2
Click Explore.

Custom Properties tab

This tab displays a list of custom properties on the selected host.
The Custom Properties tab displays only when a host is monitored by an SNMP agent. If a host is not monitored by an SNMP agent then the Custom Properties tab does not display.

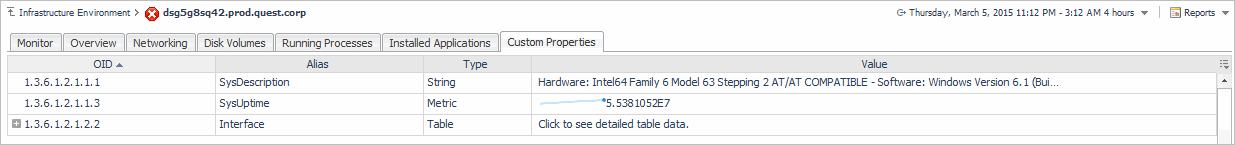

Figure 19. Custom Properties view
The table is comprised of the following fields:
•
OID — The vendor specific object identifier that is used to represent a particular device type.
•
Alias — The OID’s alias.
•
Type — The OID type. Supports string, metric, and tables.
•
Value — The OID value collected from the device.

*
NOTE: For more information on a specific column or table, click one of the following links, located in the Value column:
•
Click to see detailed table data.
•
Click to see detailed table column data.
How to get here
1
On the Infrastructure Environment dashboard, select a host monitored by an SNMP agent.
2
Click Explore.
