Foglight for Java EE Technologies 5.9.13 - Administration and Configuration Guide

Persistent scripts

The following table outlines some of the helper functions that can be used in Groovy scripts:

appserverAction_getFxVBaseURLforRequest(RequestType requestType)

String

Returns the FxV Server console URL of the request type.

appserverAction_getFxVBaseURLforTrace(RequestTraceValue trace)

String

Returns the FxV Server console URL of the trace

appserverAction_getFxVBaseURLforTrace(RequestTraceValue trace)

String

Returns the FxV Server console URL of the trace

appserverAction_isHTTPRequest(String requestTypeName)

Boolean

Returns true if the request name is an HTTP request

appserverAction_getTraceParametersByName(ArrayList parameters, String parameterName)

ArrayList

Returns one or more parameters of the specified name from the list

appserverAction_containsTraceParameter(ArrayList parameters, String parameterName)

Boolean

Returns true if the list of parameters contains the specified name

appserverAction_getTraceParameterType(String parameter)

String

Returns the type of the parameter

appserverAction_getTraceParameterName(String parameter)

String

Return the name of the parameter

appserverAction_getTraceParameterValue(String parameter)

String

Return the value of the parameter

Managing Request Integration with Foglight Experience Viewer

Foglight Experience Viewer (FxV) is a network appliance that passively monitors real-time network traffic to measure the performance of web-based applications and how that performance impacts the user experience.

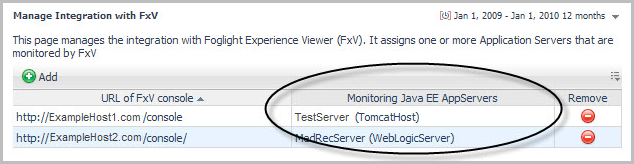

The Manage Integration with FxV dashboard allows you to configure the integration of Foglight Experience Viewer with Foglight for Java EE Technologies and Foglight for Microsoft .NET.

Integrating with Foglight Experience Viewer allows you to associate requests or single trace data to corresponding hits or session data available in FxV.

1
On the navigation panel, under Dashboards, click Application Servers > Nexus > Administration > Manage Integration with FxV.
3

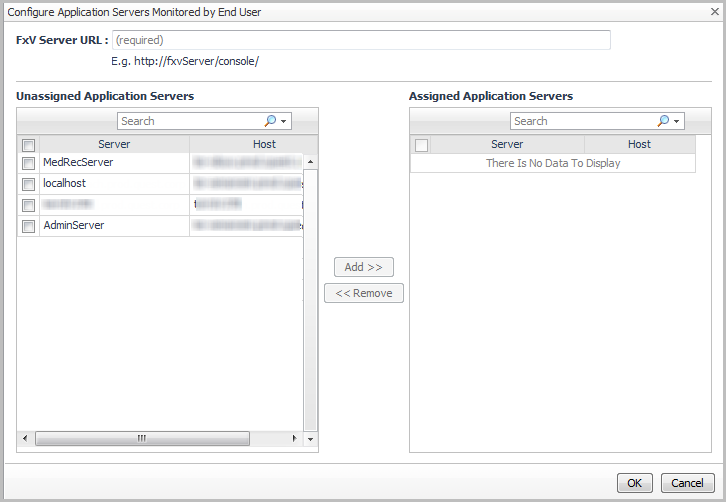

In the FxV Server URL box, type the URL for the FxV server.
For example: http://fxvServer/console/
5
Click OK.
4
1

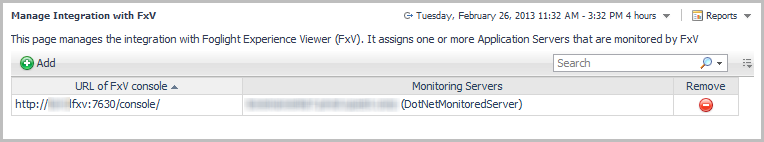

In the Manage Integration with FxV table, under the Remove column, click Remove for the server you want to remove.
2
Click OK.

Viewing request data in FxV

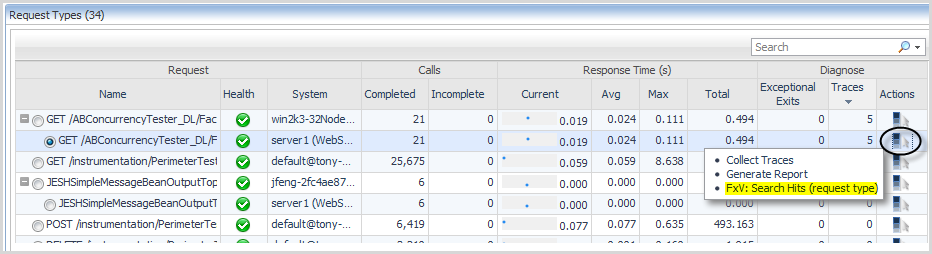

After the Integration with FxV has been set up, you can run FxV-related actions in the Application Servers Monitor dashboard Requests tab.

1
2
Click the Requests tile.
5

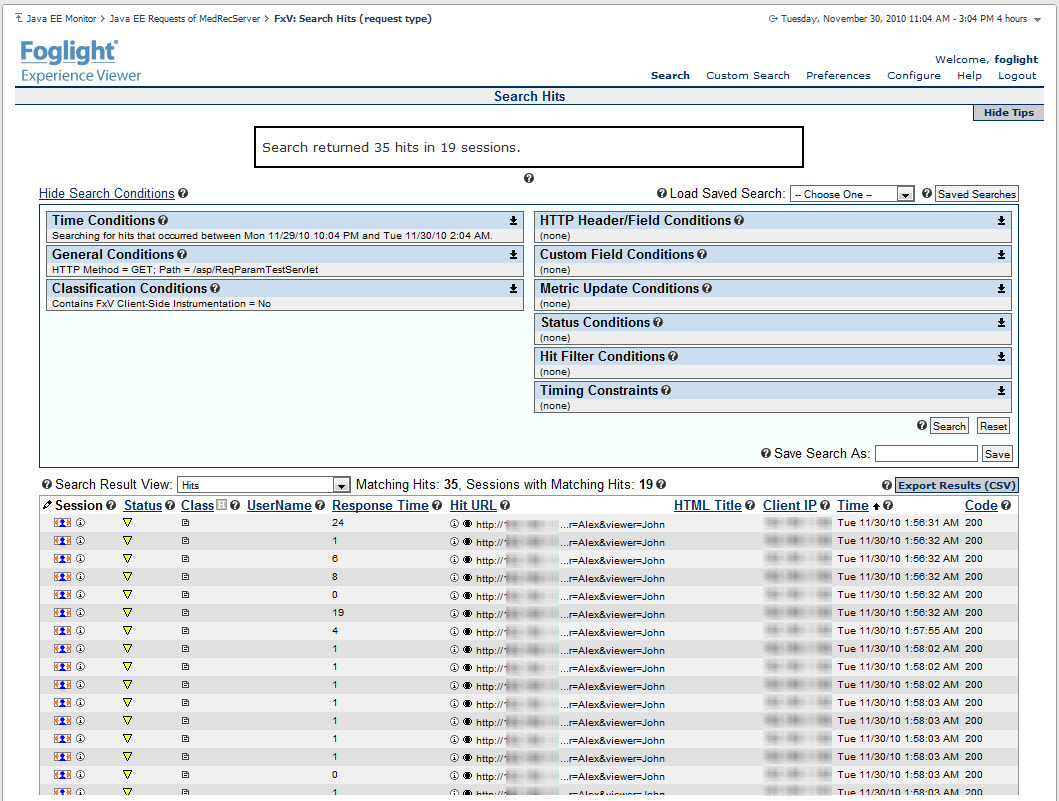

Select FxV: Search Hits (request type). The hits results display.

Viewing sessions of single traces in FxV

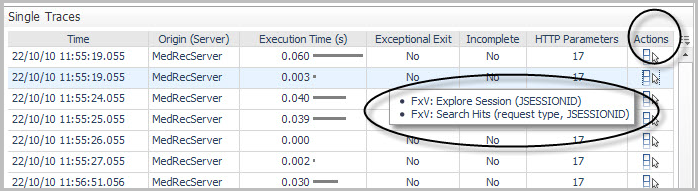

From the Application Servers Monitor dashboard, you can run an FxV action on a single trace to find the corresponding session in the FxV Session Explorer view.

1
On the Application Servers > Monitor > Requests view, click a trace to view the single trace details.
2
In the Single Traces table, click an entry in the Action column.
3
Click FxV: Explore Session (JSESSIONID).
