Foglight for Infrastructure 6.3.0 - Foglight for Web Monitor User and Reference Guide

Monitoring Web transactions Exploring your collection of monitored Web sites Investigating the performance of Web transactions and monitoring locations Exploring Web Monitor services Generating reports Configuring Web Monitor agent properties View reference
Web Monitor Performance Browser views Web Monitor Transaction Management views Web Monitor Service Operation Console and Foglight for APM Transactions views

To move multiple transactions in a single operation:

1
On the Transaction Management dashboard, filter the transactions by location.
2
On the Transaction Management dashboard, filter the transactions by agent.
3
Select the transactions you wish to move.
The Move Transactions button is enabled.
4
Click Move Transactions.

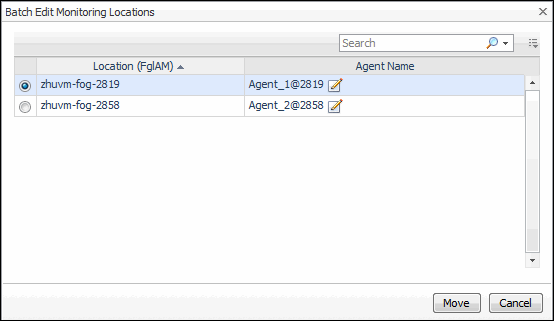

The Batch Edit Monitoring Locations dialog box is displayed.
5
Select an agent on another Foglight Agent Manager.
6
Click Move.
The Operation(s) Complete message box appears once the selected transactions have been redeployed from the original agent to the new selected agent.

Removing stale transactions from the Performance Browser dashboard

Occasionally, the list of transactions in the Performance Browser dashboard Quick View may contain a stale transaction that does not appear on the Transaction Management dashboard. You may remove stale transactions from the Performance Browser dashboard Quick View via the Foglight Data Management dashboard.

To delete a transaction from the Performance Browser Quick View:

1
Stop the Foglight Agent Manager that is installed on the host where the Web Monitor agent is running
*
NOTE: If you do not stop the Foglight Agent Manager first, the Web Monitor agent instance will still reside on the host. For details on stopping the Foglight Agent Manager, refer to the Agent Manager Guide.
2
On the navigation panel, under Dashboards, click Management Server > Servers > Data Management.
3
Click All Services > Services > WebMonitor Pivot Service > Definition.
4
Select the Transaction you wish to delete, click Delete.
The Delete Topology Objects message box appears.
5
Click Delete to confirm the removal.
The Delete TopologyObjects Progress message box appears.
6
Click OK.
7
Restart the Foglight Agent Manager installed on the host.

Viewing and editing individual Web transaction details

Every monitored Web site is associated with a number of transaction-related settings. You can view and edit these settings using the Transaction Detail dashboard.

Figure 2. Transaction Detail dashboard

To access the Transaction Detail dashboard, click on a transaction name on the Transaction Management dashboard.

Figure 3. Transaction Name on Transaction Management Dashboard

For more information about the Transaction Management dashboard, see Exploring your collection of monitored Web sites. For complete details about the data appearing on this dashboard, see Transaction Detail view.

You can make changes to any transaction details that appear on this dashboard by clicking the appropriate Edit button and making the required changes.

Any changes you make to transaction alarm thresholds results in creating topology-scoped values of the registry variables that control these thresholds, and the other way around. The topology type used to contain Web transaction definitions is Internal Synthetic Transaction (Webmonitor), and the Internal Synthetic Transaction (Webmonitor) topology object names are the configured transactions names.

Figure 4. Synthetic_Transaction_MET_Warning Registry Variable


*
NOTE: Access to Foglight registry variables, requires the Administrator role.

For more information about the Foglight registry, see the Administration and Configuration Help.
