Foglight for Container Management 1.2 - User Guide

Docker Swarm Cluster Summary view

The Docker Swarm Cluster Summary view appears on the right when you select a docker swarm cluster in the Swarm Clusters tree view.

The Docker Swarm Cluster Summary view displays the following data:

Related Items: Shows the related Docker components grouped by type as well as the associated alarms.
Resource Utilizations: Shows CPU Utilization, Memory Utilization, Network Transfer Rate, Disk Transfer Rate metrics of the containers running in this docker swarm cluster in descending order.

Monitoring Docker Swarm Services

This view consists of the following two panes:

The Swarm Services tree view, which appears on the left of Swarm Services Quick View, lists the docker swarm services existing in the monitored Docker environment.
The Docker Swarm Service Summary view, which appears on the right after you select an individual docker swarm service in the Swarm Services tree view.

Docker Swarm Service Summary view

The Docker Service Summary view appears on the right when you select a docker swarm service in the Docker Services tree view.

Figure 26. Docker Service Summary view

The Docker Service Summary view displays the following data:

Related Items: Shows the related Docker components grouped by type as well as the associated alarms.
Resource Utilizations: Shows CPU Utilization, Memory Utilization, Network Transfer Rate, Disk Transfer Rate metrics of the containers running in this docker swarm service in descending order.
Summary and Resource Information: Shows the summary information of the docker swarm service, including Labels, Image, Mount Volumes, Ports, Container Status and so on.

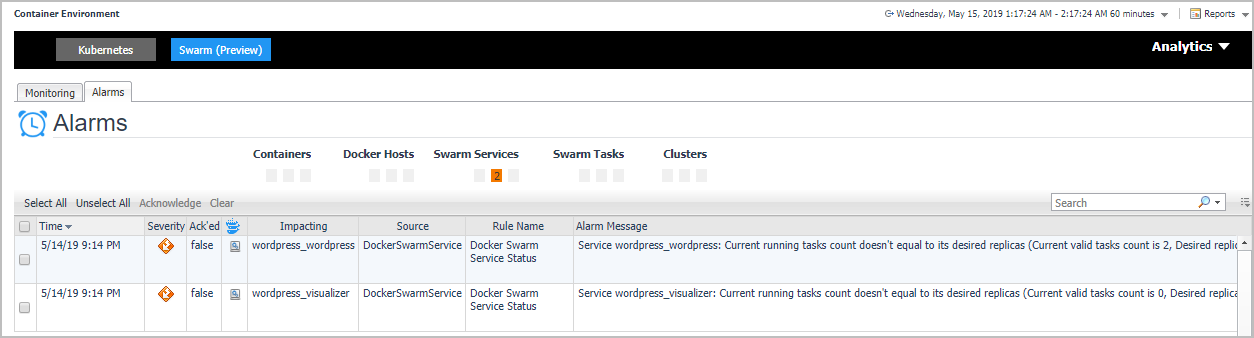

Alarms

The Alarms dashboard displays a list of alarms generated against the monitored Docker environment. Use this view to quickly identify any potential problems related to a specific Docker component.
