USN Records view

To display this view, enable the USN Records Group in the FRS section of the Metrics Management dashboard. When this collection group is enabled, this view is added to the FRS navigation tab for the selected DC in the Active Directory Explorer dashboard.

This view displays metrics related to Update Sequence Number (USN) records on the selected DC which are gathered when the USN Records collection group is enabled.

USN Records. This graph charts the following metrics over the specified time interval:

USN Reads. Shows the number of times FRS has initiated a read on the NTFRS change log.
USN Records Examined. Shows the number of times the NTFRS change log records have been examined by FRS.
USN Records Rejected. Shows the number of times the NTFS change log records have been skipped by FRS.

Drill down on:



Foglight for Active Directory rules

Foglight for Active Directory includes a number of predefined rules to monitor all critical components of Active Directory® on a continuous basis to ensure that the directory is functioning properly. The rules included in this cartridge alert you to key conditions that may affect the health of Active Directory. Foglight allows you to modify these predefined rules or create your own rules to ensure you are monitoring statistics and alerting on conditions specific to your Active Directory environment.

Foglight for Active Directory provides an additional dashboard that can be used to manage the cartridge’s rules. That is, Foglight for Active Directory rules can be managed using one of the following dashboards:

Rules dashboard (Dashboards > Administration > Rules >All)
Active Directory Rule Management dashboard (Dashboards > Active Directory > Rule Management)

This section describes the Active Directory Rule Management dashboard and explains the tasks that can be performed from this dashboard:

Rules dashboard

The Rules dashboard lists all rules that exist in your environment and allows you to drill down to rule definitions. From this dashboard you can copy, edit, and remove Foglight rules.

1
In the navigation panel, under Homes, click Administration.
2
In the Administration dashboard, click Rules > All.

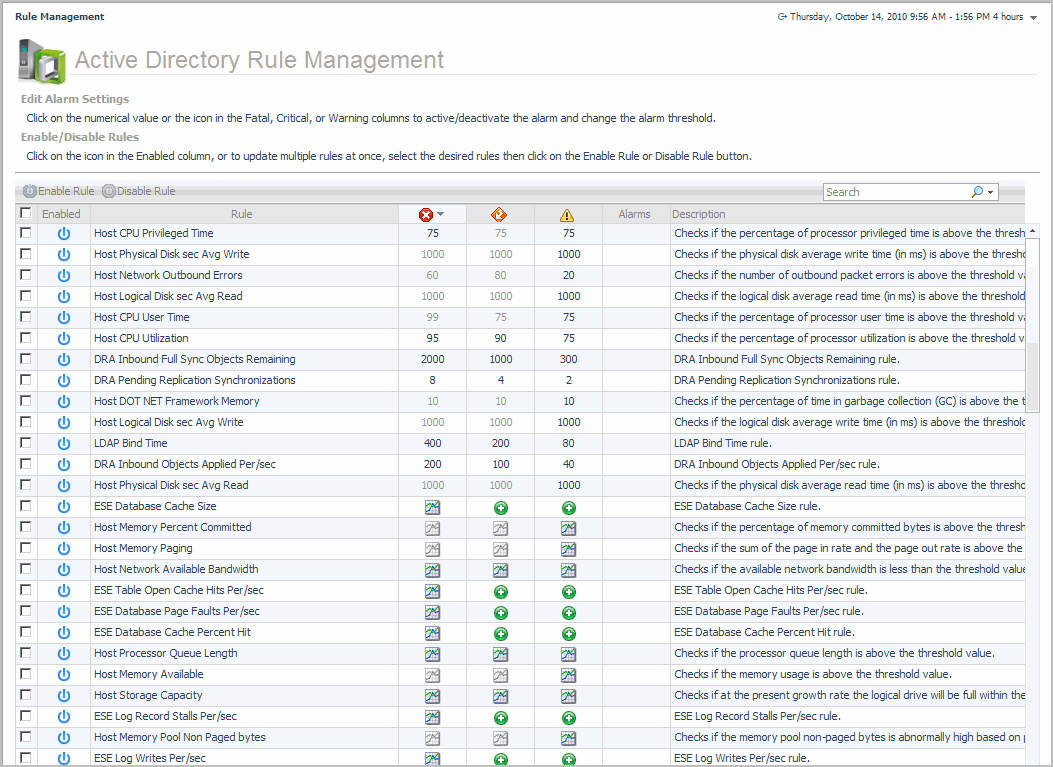

Active Directory Rule Management dashboard

The Active Directory Rule Management dashboard contains a sortable list of all the conditional severity rules used by Foglight for Active Directory. From this dashboard you can quickly see which conditional rules are enabled/disabled, the states (fatal, critical or warning) with active conditions, predefined alarm threshold values, rules with current alarms, and a brief description of each rule.

The Active Directory Rule Management dashboard displays the following information about Foglight for Active Directory rules.

Use the selection check box column to select one or more rules in the list. Once selected, you can enable or disable the selected rules using the buttons at the top of the table.

To select or clear all of the rules in the list, click on the check box in the heading row.

Enabled

Displays one of the following icons indicating whether the rule is enabled or disabled:

- Enabled

- Disabled

Clicking the icon in this column will either disable or enable the selected rule.

Rule

Displays the name of the rule.

Selecting the rule name launches the rule editor where you can view or edit the selected rule.

Fatal Condition:

The set rule icon indicates that a fatal condition is not yet defined for this rule. Selecting this icon displays a dialog allowing you to specify a value for the rule or launches the rule editor allowing you to define a fatal condition for this rule.

Critical Condition:

The set rule icon indicates that a critical condition is not yet defined for this rule. Selecting this icon displays a dialog allowing you to specify a value for the rule or launches the rule editor allowing you to define a critical condition for this rule.

Warning Condition:

The set rule icon indicates that a warning condition is not yet defined for this rule. Selecting this icon displays a dialog allowing you to specify a value for the rule or launches the rule editor allowing you to define a warning condition for this rule.

Alarms

Indicates the number of outstanding alarms for each rule.

Selecting the number in this column displays the alarms popup. From the alarm list on this popup:

Available In

Indicates the Exchange version in which the rule is available.

Description

Provides a brief description of the rule.
