Archive Shuttle 11.5 - Installation Guide

Enterprise Vault to Office 365 using ArchiveShuttle.cloud

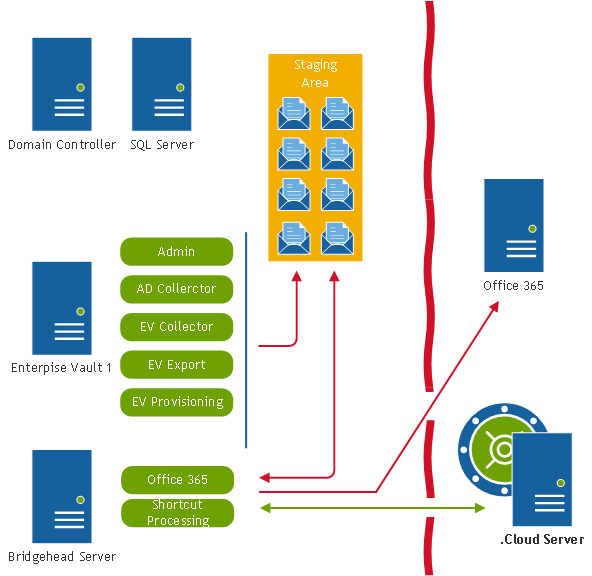

In the following diagram, Archive Shuttle.cloud is being used to migrate data from Enterprise Vault to Office 365 mailboxes. This new option with Archive Shuttle gives a cloud-based instance of Archive Shuttle (and the necessary SQL databases). This leaves customers to simply install the modules required to perform the migration and to provide a Network Share to house the Staging Area.



ArchiveShuttle-EV-via-Cloud-2-O365-2



If you cannot install the modules directly onto the Enterprise Vault servers, then you can install all modules on the bridgehead server or a separate bridgehead server exclusively used for the extraction of data.

info

NOTE: If the Enterprise Vault modules are installed on a separate server, please ensure to install the Enterprise Vault API.

Planning for the Archive Shuttle databases

Archive Shuttle uses the following Databases:

·The Archive Shuttle Directory database. There is just one of these; it hosts all configuration and non-item based metadata.

·The Archive Shuttle Item database(s). There is one of these for each source Link (e.g. one per Vault Store). These databases do not have to be on the same SQL Server as the Archive Shuttle Directory database. Each Item Database can be on a separate SQL Server, if required.

Microsoft SQL Server must be installed and set up before you install Archive Shuttle. The collation requirement for the SQL Server installation must be case-insensitive, accent-sensitive (CI, AS); case-sensitive and accent-insensitive installations are not supported.

Microsoft SQL Server must be on a dedicated server, either physical or virtual. It is not supported to have it on the same server as the Archive Shuttle Core server. It is not supported to have the Microsoft SQL Server shared with any other software, for production use.

Before installing the Archive Shuttle Core Components, make sure the account that will be used has “dbcreator” rights in Microsoft SQL Server.

info

NOTE: SQL is only relevant within your environment when installing Core (see Archive Shuttle Compatibility Guide for more). If you are installing within the cloud, Archive Shuttle maintains SQL for you.

SQL versions

To see which versions of SQL Server are supported, go to the Archive Shuttle Compatibility Guide.

info

NOTE: Having the latest service pack installed is recommended.

SQL editions

Although Enterprise Edition of Microsoft SQL Server is recommended, Standard Edition may be used if the SQL instance uses the recommended (not minimum) resources associated with the size of migration you are performing. Planning for additional time will be required to accommodate regularly required offline maintenance.

Item and user level metadata

The following describes the item and user level metadata stored in Archive Shuttle databases.

Data stored by Archive Shuttle relates to these aspects of a migration:

·Users

·Archives/Containers

·Items

Each of these objects has a number of attributes, as shown below:

Users

·First name, last name, display name, and title of each user (from Active Directory)

·The user SID

·The email and SMTP address of the user

·The domain and AD container where the user object is located

·User GUID, samAcctName, DN, and UPN

·Geographical information, including street address, state, office name, company name, department, and country

·Whether the user is enabled

·The dates the user was created, updated, and deleted

info

NOTE: Archive Shuttle collects and stores metadata from Active Directory. If you have concerns about this data, enable the Do not transmit non-essential Active Directory information option in the system configuration. With the option enabled, items mentioned in italics above are not collected. Changes do not apply to Microsoft Entra ID.

Archives/Containers

·Archive Name (from the Enterprise Vault Directory Database)

·Archive Description (from the Enterprise Vault Directory Database)

·The Vault Store that a source or target Archive is stored on

·The owning user SID

·The Archive ID (from the Enterprise Vault Directory Database)

·The number of items in the archive, and the overall size

·Mailbox name and Exchange Server name

Items

·Source transaction ID

·Original Size

·Compressed Size

·Target Transaction ID (in the case of a migration to Enterprise Vault)

·Target SaveSet ID (in the case of a migration to Enterprise Vault)

·Target Entry ID (in the case of a migration to Microsoft Exchange)

info

NOTE: No identifiable data, such as subject lines, or content of emails/archived items are stored in any of the Archive Shuttle databases.

info

NOTE: No migration content will pass through from the modules/staging-area to the cloud. No data leaves the customer network perimeter.

A non-disclosure agreement is available upon request.

Silent (unattended) installation

Archive Shuttle Core and the Archive Shuttle modules can be installed using a silent / unattended method. The general format of the command line is as follows:

msiexec /i <package> /quiet /l*v <msilog.file> PARAMETER1=”Param1 value” PARAMETERx….

There is a special parameter called ADDLOCAL where it is possible to either specify ALL (for all features to be installed), or list the ones that are required from the tables below.

Unattended Installation of Archive Shuttle Core

 Modules Installer

Features

ASAdminModuleFeature


ADCollectorModuleFeature


EVCollectorModuleFeature


EVExportModuleFeature


EVImportModuleFeature


EVProvisioningModuleFeature


ExchangeImportModuleFeature


ShortcutPostprocessModuleFeature


NativeFormatImportModuleFeature


Office365ModuleFeature


Parameters

APPLICATIONFOLDER

Modules root installation path, single module can be overridden

ASADMINMODULEFOLDER


ADCOLLECTORMODULEFOLDER


EVCOLLECTORMODULEFOLDER


EVEXPORTMODULEFOLDER


EVIMPORTMODULEFOLDER


EVPROVISIONINGMODULEFOLDER


EXCHANGEIMPORTMODULEFOLDER


SHORTCUTPOSTPROCESSMODULEFOLDER


NATIVEFORMATIMPORTMODULEFOLDER


OFFICE365MODULEFOLDER


SERVICEACCOUNT

Service account to be used

SERVICEPASSWORD

Service account password to be used

ASWEBSERVER

Archive Shuttle web server

LOGFOLDER

Log file folder

USE_HTTPS

USE_HTTPS=1 to enable HTTPS

ALLOW_OVERRIDE_DATABASE_NAME

This enables an option in the installer to allow the Archive Shuttle Database name to be specified.

MAINDBNAME

Can be used to specify a different Archive Shuttle Directory Database name.

Unattended Installation of Archive Shuttle Modules

 Modules Installer

Features

CoreFeature


WebserviceFeature


WebUIFeature


Parameters

APPLICATIONFOLDER

Archive Shuttle Core root installation path, specific features can be overridden.

ASSERVICEFOLDER


ASWEBSERVICEFOLDER


ASWEBUIFOLDER


SERVICEACCOUNT

Service account to be used

SERVICEPASSWORD

Service account password to be used

LOGFOLDER

Log file folder

LICENSE_FILE

Path to license file to user

ASWEBSERVER

Archive Shuttle Web Server

MAINSQLINSTANCE

SQL instance of Archive Shuttle Directory database

USE_HTTPS

USE_HTTPS=1 to enable HTTPS instead of HTTP

DONT_CHECK_WEBSERVICE

Set DONT_CHECK_WEBSERVICE=1 if it is not required for the installer to check that the modules can communicate with the Archive Shuttle Core.

SKIP_TRY_START_SERVICES

If specified it will prevent the installer from trying to start the services at the end of the installation

Examples of unattended installation

The following are provided as examples of how to perform an unattended installation:

Install the AD Collector Module

msiexec /i ArchiveShuttleModulesInstall-7.x.xxxxx.y /quiet /l*v C:\Temp\ADColl.log ADDLOCAL=ASAdminModuleFeature,ADCollectorModuleFeature APPLICATIONFOLDER=”D:\Modules” SERVICEACCOUNT=EV\VaultAdmin SERVICEPASSWORD=xyz123 ASWEBSERVER=SRV001.EV.LOCAL LOGFOLDER=”D:\Logs”

Install EV Export Module

msiexec /i ArchiveShuttleModulesInstall-7.x.xxxxx.y /quiet /l*v C:\Temp\ADColl.log ADDLOCAL=ASAdminModuleFeature,EVExportModuleFeature EVEXPORTMODULEFOLDER=\\file001\exportimport APPLICATIONFOLDER=”D:\Modules” SERVICEACCOUNT=EV\VaultAdmin SERVICEPASSWORD=xyz123 ASWEBSERVER=SRV001.EV.LOCAL LOGFOLDER=”D:\Logs”
