Changing Default Settings for Navigation

These configuration settings display in the ControlPoint Settings list under the category Navigation.



Postpone Security Trimming of SharePoint Hierarchy Until Site Collection is Expanded (PostponeSecurityTrim)

By default, the site collections to which a ControlPoint user has access are calculated  when the application is launched  or when the SharePoint Hierarchy or page is refreshed.

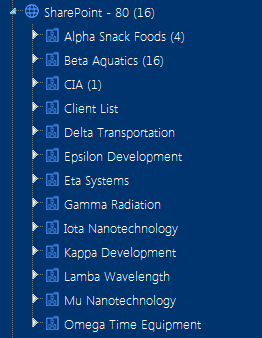

Postpone Security Trim False

In an especially large SharePoint environment in which the user administers a large number of site collections within a Web application, the load-time may be significant.  ControlPoint Application Administrators can, therefore, postpone security trimming until a Site Collection is expanded by changing the value of the ControlPoint Setting Do Not Security-Trim SharePont Hierarchy Until Site Collection Expansion (PostponeSecurityTrim) from false to true.

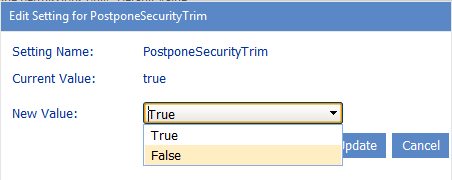

Postpone Security Trim

When this setting is true:

·All of the site collections within the SharePoint farm will display in the SharePoint Hierarchy, and

·security trimming will occur when a site collection is expanded; that is:

§none of the sites below the site collection will display in the hierarchy, and

§the ControlPoint right-click menu will be replaced with your browser-s right-click menu.

Postpone Security Trim MENU

If a user attempts to perform an operation on a site collection for which they not have permissions before the site collection is expanded, a pop-up with following message displays when a ControlPoint operation is invoked:

You do not have permissions to run an action or report on the selected scope.

PostponeSecurityTrim POPUP

NOTE:  Because all site collections will display in the SharePoint Hierarchy when this setting is enabled, it is recommended for use only with exceptionally large SharePoint environments where long loading time is an issue, and ideally, for which ControlPoint users are administrators for most (or all) of the site collections.

Search Using Cached Data (CACHEDSEARCH)

By default, ControlPoint uses real time data to search the SharePoint Hierarchy for operations such as:

·Search Hierarchy

·Change Selection

The use of real-time data means that search results are always current and will include even sites that were created immediately before the search was initiated.  It may also take more time to complete a search, depending on its scope.  If ControlPoint users routinely conduct searches that include a large numbers of objects, ControlPoint Application Administrators can configure ControlPoint to use data from the ControlPoint database cache (and thus speed up searches) by changing the Value of the ControlPoint Setting Search Using Cached Data from false to true.

NOTE:  This setting applies to the search functionality only.  The full browse tree always uses real-time data.

If cached data is used, search results will not include sites for which users only have permissions via a Web application policy.

NOTE:  Data from this cache is current as of the last Discovery run.



Maximum Number of Objects to Display Before Foldering (NAVCAP)

By default, the maximum number of child objects (that is, site collections, sites or lists) that can display directly beneath a single parent in the left navigation pane is 45.  (That is, up to 45 site collections can display beneath a Web application, up to 45 sites beneath a site collection, and so on).  This limit is set to provide you with predictable performance when opening nodes within the navigation tree; it takes additional time to open a node that contains a large number of objects.

If the number of child objects beneath a particular node exceeds the set limit, ControlPoint generates a series of subfolders which contain subsets of objects, grouped alphabetically, as shown in the example below.

Hierarchy Foldering

ControlPoint Application Administrators can modify this number by changing the Value of the ControlPoint Setting Maximum Number of Objects  to Display Before Foldering.

NOTE:  While you may want to decrease this value, it is generally recommended that you not increase it, as performance may be negatively impacted and may trigger a warning message in the browser.

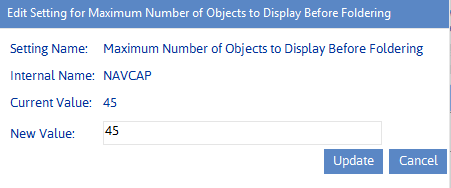

Config Setting NAVCAP

This setting applies to site collections, sites, and lists.  The maximum number of SharePoint users and groups that display beneath a site are configured via different parameters.  See:

·Maximum Number of SharePoint Groups to Display in SharePoint Hierarchy (SPGROUPCAP)

·Maximum Number of Users to Display in SharePoint Hierarchy (SPUSERCAP)
