ControlPoint 8.7 - for Office 365 User Guide

Getting Started with ControlPoint Using Discovery to Collect Information for the ControlPoint Database Cache The GDPR Dashboard Searching for SharePoint Sites Managing SharePoint Objects Managing Audit Settings Managing Metadata Managing SharePoint User Permissions Data Analysis and Reporting Scheduling a ControlPoint Operation Saving, Modifying and Executing Instructions for a ControlPoint Operation Provisioning SharePoint Site Collections and Sites Using Sensitive Content Manager to Analyze SharePoint Content for Compliance Using ControlPoint Sentinel to Detect Anomalous Activity Default Menu Options for ControlPoint Online Users About Us

Analyzing Site Collection Activity

The Site Collection Activity Analysis provides activity statistics for selected site collections, including:

·the distribution of activity among site collections selected for analysis, and

·the number of top site collections (that is, site collections within the scope of your analysis with the most activity).

Site Collection Activity analyses use cached data collected by ControlPoint Discovery.

To generate a Site Collection Activity Analysis:

1Select the object(s) (tenant or site collections) for which you want to analyze activity.

2Choose Activity > Site Collection Activity Analysis.

3Specify the parameters for your analysis.

Note that, in addition to the "standard" parameters:

§A Number of Top Sites to show in Graph must be specified.  The value in this field (which is 10 by default, but may be changed) represents the number of site collections with the most activity that you want to examine more closely.  These sites are listed in a separate section at the bottom of the analysis Results section.

Actifity Graph Limit

NOTE:  If you want to perform an analysis that focuses exclusively on top site collections that meet specific activity or storage criteria, you can generate a Most/Least Activity Analysis.

Now you can:

·run the operation immediately (by clicking the [Run Now] button)

OR

·schedule the operation to run at a later time or on a recurring basis.

OR

·save the operation as XML Instructions that can be run at a later time.

The Activity Report displays the following sections:

§Web Applications

§Activity Distribution

§Top Site Collections

Web Applications Section

The Web Applications section lists the following statistics for individual Web applications, as well as cumulative totals:

§the number of Collections, Sites, and Lists in each Web application

NOTE:  The number of Lists includes both user-created (visible) lists and internal (hidden) lists, such as galleries, that are necessary for the functioning of the site.  for the specified day or time period.

When expanded, statistics for individual site collections within each Web application displays, including:

·the site collection name (with a hyperlink for generating a ControlPoint Site Activity analysis for the selected site collection/time period.)and url

·the number of Sites and Lists within the collection

· the Avg. Unique Users/Day who have visited the site collection for the specified day or time period (That is, any user who has more than one set of permissions to a site is only counted once.)

·the number of Requests that the site collection has received for the specified day or time period.

·the date when the site collection was Last Accessed (within the date range specified by the analysis).

Activity Distribution Section

The Activity Distribution section consists of a pie chart that depicts the distribution of activity among the Web applications returned by your analysis.

NOTE:  If the analysis was generated for a single Web application, the pie chart will show the distribution of activity among site collections within that Web application.

Top Site Collections Section

This section shows statistics for the site collections within the scope of your analysis with the most activity. The number of site collections that displays in this section is determined by the value you entered in the Parameters section for Limit Display to.

NOTE:  The Last Accessed date shows the last time the site collection was accessed within the date range covered by the analysis.  Any activity that occurred before or after the specified date range will not be reflected in results.

Note that any site collections that have been deleted since ControlPoint Discovery began collecting data will display at the top of results, along with the word "Deleted."

Site Collection Activity DELETED SCs



Analyzing Storage

ControlPoint offers the following analyses that enable you to examine storage usage for a specific date or time period:

·Site Collection Storage Analysis shows storage usage for one or more site collections.

·Storage by File Type shows the amount of storage used by file extension.

You can also analyze trends in storage use over a specified time period.  See Analyzing Trends.



Analyzing Site Collection Storage

The Site Collection Storage Analysis provides storage statistics for selected site collections, including:

·the distribution of storage among Web applications selected for analysis, and

·the number of top site collections (that is, site collections with the scope of your analysis using the most storage).

To generate a Site Collection Storage Analysis:

1Select the object(s) on which you want to perform the analysis.

2Choose Storage > Site Collection Storage Analysis.

3Specify the parameters for your analysis.

Note that, in addition to the "standard" parameters, a Limit display to must be specified.  The value in this field (which is 10 by default, but may be changed), represents the number of sites using the most storage space that you want to examine more closely.  These sites are listed in a separate section at the bottom of the analysis results.

Now you can:

·run the operation immediately (by clicking the [Run Now] button)

OR

·schedule the operation to run at a later time or on a recurring basis.

OR

·save the operation as XML Instructions that can be run at a later time.

Storage Analysis RESULTS

The Site Collection Storage analysis consists of the following sections:

·Web Applications

·Size Distributions

·Storage Usage

·Top Site Collections

Web Applications Section

The Web Applications section lists the Web application(s) within the scope of your analysis, along with the following statistics for individual Web applications and cumulative totals:

·the number of site Collections, Sites, Lists, and Files.

NOTE: Because of restrictions on some data that Microsoft provides for Office 365 Germany, US Government GCC High, and DoD customers, for any of these environments Files will always show 0.

·the Size, in megabytes (MB) of storage used.

NOTE:  Size includes content but excludes logs, metadata and other storage overhead.  It is not meant to reflect the size of the content database.

When expanded, these statistics display for individual site collections, along with:

·the Content DB used by the site collection

·Quota in megabytes (MB)

·%Usage relative to the quota.

Storage Analysis WEB APPLICATIONS

Size Distributions and Storage Usage Sections

The Size Distributions section consists of a pie chart that depicts the size distribution among the Web applications within the scope of your analysis.  (If you generated the report for a single Web application, the chart will appear solid.)

The Storage Usage section consists of a bar chart that shows the amount of storage space used by each Web application relative to the Web application's quota.

NOTE:  If a quota has not been set for the Web application, Used Space will not be captured.

Storage Analysis SIZE DISTRIBUTION

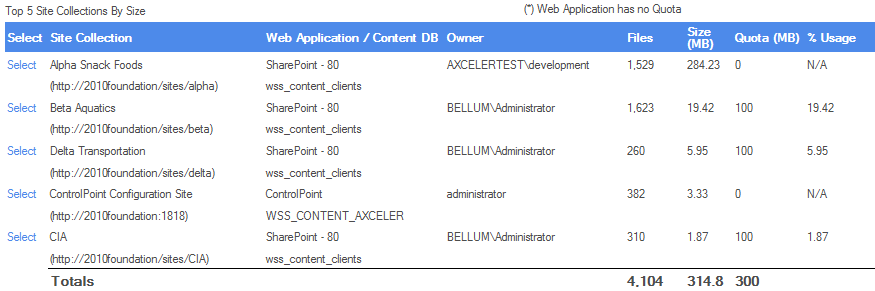

Top Site Collections by Size

This section shows statistics for the site collections using the most storage space. The number of site collections that display in this section is determined by the value you specified for Limit display to.

Storage Analysis TOP SITES



Analyzing Storage by File Type

The Storage by File Type analysis provides both a graphical and tabular representation of the amount of storage used by various file types in the content database(s), both by file size and count.  You have the option of including all file types, or including/excluding those with specified file extensions.

NOTE:  This analysis encompasses files within SharePoint content databases.  Files stored within the file system, such as SharePoint Features, are not included.

To generate a Storage by File Type analysis:

1Select the object(s) you want to include in your analysis.

2Choose Storage > Storage by File Type.

3Specify the following parameters for your analysis:

If you want include or exclude specific file types:

§Specify whether you want to Include Extensions or Exclude Extensions.

§Enter the file extension(s) you want to include or exclude in the File Extensions field.  Enter multiple extensions as a comma-separated list.

NOTE:  If you want include all file types, leave the File Extensions field blank.  If you chose Exclude Extensions, you must enter at least one file extension.

Now you can:

·run the operation immediately (by clicking the [Run Now] button)

OR

·schedule the operation to run at a later time or on a recurring basis.

OR

·save the operation as XML Instructions that can be run at a later time.

Analysis results include:

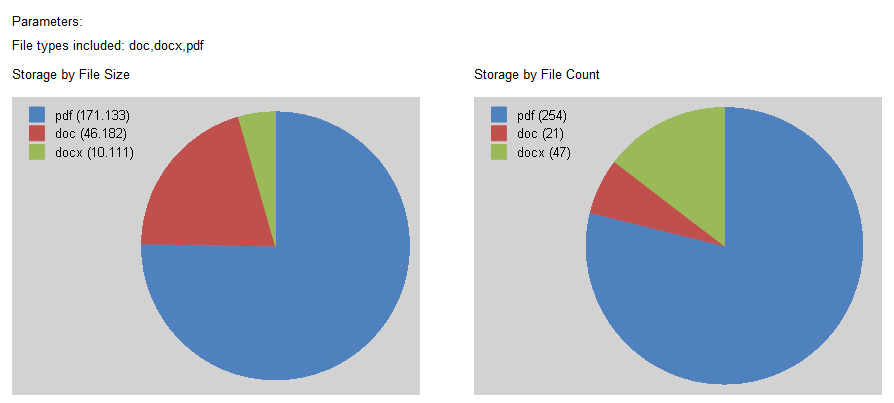

·two pie charts that depict the Storage by File Size and Storage by Type for the selected scope and file types.

Storage by File Type PIE CHARTS

·a listing that includes the Extension(s), Total Files and Total Size (MB) for each file type.

Click an Extension(s) hyperlink to generate a Most/Least Storage analysis that shows the files with that extension that use the most storage (the number of which was specified in the Number of Files to Show in Drill-down).

Storage by File Type LIST
