Field Name Coding Convention

Column headings are coded as follows:

Code
Meaning

Diamond

The values displayed in these columns are key values and are required. Key values must be unique. For tables with one key value, each definition must have a unique key. For tables with multiple key values, the combination of the key values must be unique.

NOTE: Key values may not be changed once a definition has been saved.

Asterisk

Required column. A value must be entered in this column.

All other columns are either optional (meaning data may be entered in this column or the column may be left blank) or read-only.

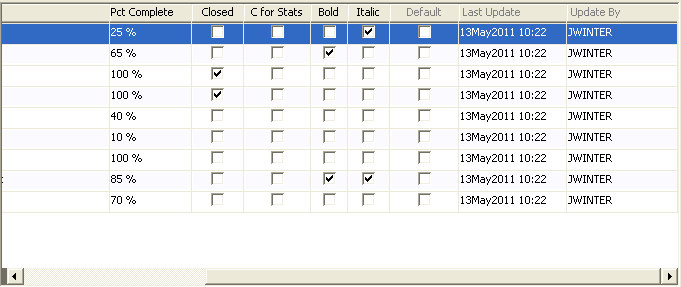

Scroll Bar

Along the bottom of the list is a horizontal scroll bar that scrolls the list to the left or right.

Splitter Bar

The splitter bar is a special tool that lets you keep the columns to the left visible regardless of how far right you scroll. This tool is particularly helpful when working on a table with many columns.

When scrolled completely to the right, not all of the data on the left is visible.

Note that when activating the splitter, a gray vertical line is displayed. A complete display of the list is available on either side of the line. You can move the line to the left or right to resize either list. You can also scroll left or right within each list.

When you scroll up or down, both lists remain synchronized.

To activate the splitter, click and drag the small black line to the left of the horizontal scroll bar.

To deactivate the splitter, simply drag the bar back to its original position.

Field Types

The record list values are displayed in different types of fields.

Check Boxes

Check boxes indicate a yes/no or on/off value. When a check box is deselected, the value is off or no. When selected, the value is on or yes.

Free Text Edit Fields

These fields are used to manually enter text.

Drop Down Lists

These fields are used when the possible values are limited to a specific set. Often times, these lists link back to another table. For example, when specifying a customer value, you must select a department from a list previously defined in the Department Maintenance table.

Spin Controls

Spin controls are used exclusively for numeric values and have small up and down arrow buttons to the right of the control. To increase the value, click the up arrow; to decrease the value, click the down arrow. Spin controls are provided strictly as a convenience. You can also manually enter a value in these fields.
