Integration for Notes 20.13 - User Guide - FreeBusy

Section 1. Introduction Section 2. Scope Section 3. Recommended Installer Prerequisites Section 4. Pre-installation Requirements Section 5. Configure the Domino environment Section 6. Configure Integration for Notes FreeBusy in Exchange or Office 365 Section 7. Install FreeBusy On the Domino Coex Server Section 8. Create and Configure the Domino Databases Section 9. Modify the Notes.ini File Section 10. Start FreeBusy on Domino Coex Server Section 11. Install FreeBusy for Windows Section 12. Verification Section 13. Ongoing Administration Appendix A. Adding a Root Trusted Signed Certificate to the FreeBusy Operating System(s) Appendix B. SetFBCred Utility Appendix C: Enable Modern Authentication Appendix D. Notes.ini File Parameters

Section 9. Modify the Notes.ini File

8.2    Create Mail Router Mailbox

If the mail router mailbox (btexchange.box) does not already exist, create it on the server using the mail router Mail Router Mailbox mailbox.ntf template also found in the Domino Coex server’s Data Directory server:

  1. Launch IBM Notes

  2. Click File | Application | New

  3. In the New Application dialog box:

    1. Select the Domino Coex server in the Server field

    2. Enter BT Exchange Mailbox in the Title field

    3. The File Name is auto-populated based on the Title name; we recommend keeping it as is

    4. Click Show advanced templates

    5. Select the Mail Router Mailbox (mailbox.ntf) template to create a new mail router mailbox

    6. Click OK



Section 9. Modify the Notes.ini File

The Notes.ini file can be updated either by editing it manually or by issuing an appropriate set config command on the Domino Server’s Console. When editing Notes.ini parameters, the total length of the Keyword=Value string cannot exceed 256 characters.

9.1 Sample Notes.ini FreeBusy Parameters

A sample of required Notes.ini FreeBusy values is shown below. Some variables need to be configured to match your environment.

Copy the variables below into your existing Domino Coex Notes.ini file. For all of the highlighted lines, enter the value that corresponds with the Domino settings defined on the table on the next page.

;***************************  Begin CMTc Section  ****************************

;                                                                \\\\\\\\\/////////

;**************************  Start FreeBusy Section  ***************************

BTCOEX_APPROVED_CALLERS=____________________

BTCOEX_BYPASS_REQUESTOR=1

BTCOEX_DEFAULT_FB_ACCESS_ACCOUNT=____________________

BTCOEX_WS_NAME=BTAvailability

BTCOEX_DOMINO_DOMAINS=____________________

BTCOEX_EXCHANGE_DOMAINS=____________________

BTCOEX_NSF=btws.nsf

BTCOEX_FOREIGN_WS_URL=____________________

BTCOEX_SERVICE_TYPE=COEX



The chart below lists each parameter from the Notes.ini sample above. The administrator should use the chart to determine the values to enter to update in the Notes.ini sample. More information on these parameters can be found in the INI File Parameters appendix.




Trailing spaces are not allowed in the Notes.ini; be sure there are no spaces at the ends of lines in the Notes.ini.



INI Variable Name

Description

Required Value or Ex.




BTCOEX_APPROVED_CALLERS

Specifies the IP addresses that need to connect to the Domino Coexistence server; this field is optional

<comma-separated IP addresses>




BTCOEX_BYPASS_REQUESTOR

If set to “1”, Exchange requests will use the credentials supplied by the BTCOEX_DEFAULT_FB_ACCESS_ACCOUNT parameter. This is useful when Exchange is not supplying the user ID because it is set to OrgWideFB.

1




BTCOEX_DEFAULT_FB_ACCESS_ACCOUNT

This is the SMTP Address of the FreeBusy Proxy Account (see section 5.5 FreeBusy Person Document)

<bt.freebusy@contoso.com>




BTCOEX_WS_NAME

Should match the virtual directory used by btrouter on the Windows coexistence server; BTAvailability is the default value

BTAvailability




BTCOEX_DOMINO_DOMAINS

Comma-separated list of Domino domains

<comma-separated IP addresses>




BTCOEX_EXCHANGE_DOMAINS

These are the domains used in the Foreign Domain document

<“BTEx” (for on-prem Exchange) “MSO365” (for Office365)>




BTCOEX_NSF

This is the name of BT FreeBusy webservices database

btws.nsf




BTCOEX_FOREIGN_WS_URL

Address used to contact the Windows coexistence server

<http://autodiscover.domino.contoso.com/btavailability/availability.asmx>




BTCOEX_SERVICE_TYPE

The BTCOEX_SERVICE_TYPE parameter specifies the Web Service format used by the Binary Tree IIS apps to translate to the correct version of the EWS format.

COEX







9.2 How to update the Notes.ini file

To make changes to the Notes.ini file, follow these steps:

  1. Shutdown BTFreebusy by issuing the following command at the Domino Coex server console:

Domino Coex Server Console

tell btfreebusy quit

  1. Shut down the Domino Coex server by issuing the following command:

Domino Coex Server Console

quit

  1. When the Domino server has completed its shutdown:

    1. Open the INI file in a basic text editor (e.g. Notepad)

    2. Make the modifications and save the text file




If using 64-bit Domino and/or a language with double-byte characters, the text file must be saved as UTF-8 without a BOM.

  1. Restart the Domino Coex server

Section 10. Start FreeBusy on Domino Coex Server

After installing the FreeBusy software and updating the Notes.ini file, the Domino Coex server needs to be restarted.

Refer to the Ongoing Administration section for more information on FreeBusy Domino server commands.

If the Domino server was not shutdown when the Notes.ini was updated, restart FreeBusy. To do this, issue the following commands at the Domino Coex server console to start and stop the FreeBusy task:

Domino Coex Server Console

tell btfreebusy quit

load btfreebusy



The example below, shows a quit followed by a successful BTFreeBusy load.



cid:image001.png@01D4F115.95F2C6B0

Section 11. Install FreeBusy for Windows

To install Integration for Notes Free/Busy on the Windows Coex server, follow the instructions below:

  1. Run the Notes Integration FreeBusy.exe as Administrator

  2. On the installation wizard screen, click Next:

  1. Review the Software License Agreement and if you agree, click Yes to continue:

  2. On the Choose Destination Location screen, accept the default destination location or browse to the desired location; click Next:

  1. On the first screen, enter the Fully Qualified Domain Name (FDQN) of the Exchange CAS server hostname and click Next:

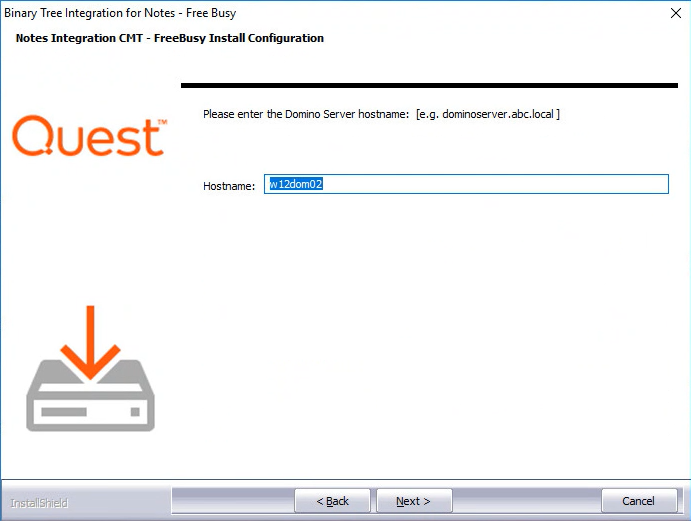

  2. Enter the DNS name of the Domino Server and click Next:

  1. On the third Free/Busy Install Configuration screen, enter the Domino SMTP domain name you want to expose Free/Busy information for and click Next:

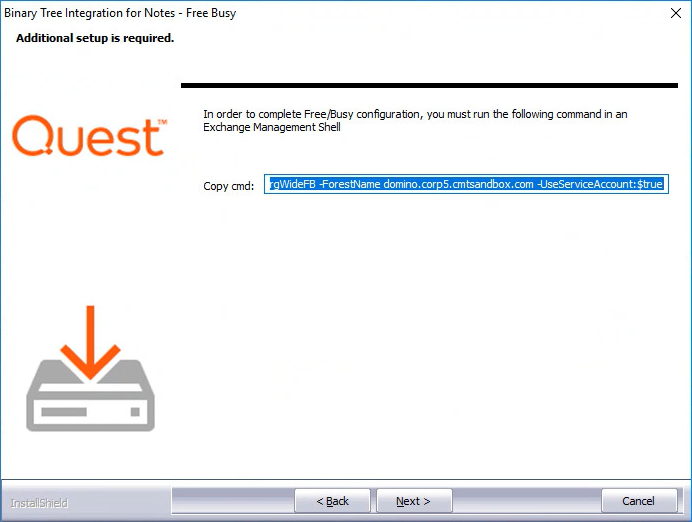

  2. On the Additional setup is required screen, copy the command and run it in an Exchange Management Shell then click Next.

    This command sets the Availability Address Space in Exchange so Free/Busy requests are sent to Domino:

  3. On the Ready to Install the Program screen, click Install to begin the installation:

  4. When installation is complete, the Wizard Complete screen appears; click Finish to exit the wizard:

  5. Open a command prompt and run the following command: iisreset

Section 12. Verification

Proper verification of the FreeBusy installation, can prevent future issues from occurring during coexistence. Verify Autodiscover, BTAvailability and BTRouter and then complete the validation matrix at the end of this section.

Section 10. Start FreeBusy on Domino Coex Server

9.2 How to update the Notes.ini file

To make changes to the Notes.ini file, follow these steps:

  1. Shutdown BTFreebusy by issuing the following command at the Domino Coex server console:

Domino Coex Server Console

tell btfreebusy quit

  1. Shut down the Domino Coex server by issuing the following command:

Domino Coex Server Console

quit

  1. When the Domino server has completed its shutdown:

    1. Open the INI file in a basic text editor (e.g. Notepad)

    2. Make the modifications and save the text file




If using 64-bit Domino and/or a language with double-byte characters, the text file must be saved as UTF-8 without a BOM.

  1. Restart the Domino Coex server

Section 10. Start FreeBusy on Domino Coex Server

After installing the FreeBusy software and updating the Notes.ini file, the Domino Coex server needs to be restarted.

Refer to the Ongoing Administration section for more information on FreeBusy Domino server commands.

If the Domino server was not shutdown when the Notes.ini was updated, restart FreeBusy. To do this, issue the following commands at the Domino Coex server console to start and stop the FreeBusy task:

Domino Coex Server Console

tell btfreebusy quit

load btfreebusy



The example below, shows a quit followed by a successful BTFreeBusy load.



cid:image001.png@01D4F115.95F2C6B0

Section 11. Install FreeBusy for Windows

To install Integration for Notes Free/Busy on the Windows Coex server, follow the instructions below:

  1. Run the Notes Integration FreeBusy.exe as Administrator

  2. On the installation wizard screen, click Next:

  1. Review the Software License Agreement and if you agree, click Yes to continue:

  2. On the Choose Destination Location screen, accept the default destination location or browse to the desired location; click Next:

  1. On the first screen, enter the Fully Qualified Domain Name (FDQN) of the Exchange CAS server hostname and click Next:

  2. Enter the DNS name of the Domino Server and click Next:

  1. On the third Free/Busy Install Configuration screen, enter the Domino SMTP domain name you want to expose Free/Busy information for and click Next:

  2. On the Additional setup is required screen, copy the command and run it in an Exchange Management Shell then click Next.

    This command sets the Availability Address Space in Exchange so Free/Busy requests are sent to Domino:

  3. On the Ready to Install the Program screen, click Install to begin the installation:

  4. When installation is complete, the Wizard Complete screen appears; click Finish to exit the wizard:

  5. Open a command prompt and run the following command: iisreset

Section 12. Verification

Proper verification of the FreeBusy installation, can prevent future issues from occurring during coexistence. Verify Autodiscover, BTAvailability and BTRouter and then complete the validation matrix at the end of this section.
