Foglight Hybrid Cloud Manager 1.9 - User Guide (for AWS environments)

Using Foglight Hybrid Cloud Manager for AWS Monitoring Tab System Info Tab Tags Tab Report Tab Rule Configuration Tab Administration Tab Optimizer Tab Cost Tab Policy Management Tab

Region Explore view

The Region Explore view opens when you click Explore in the Region Summary view.

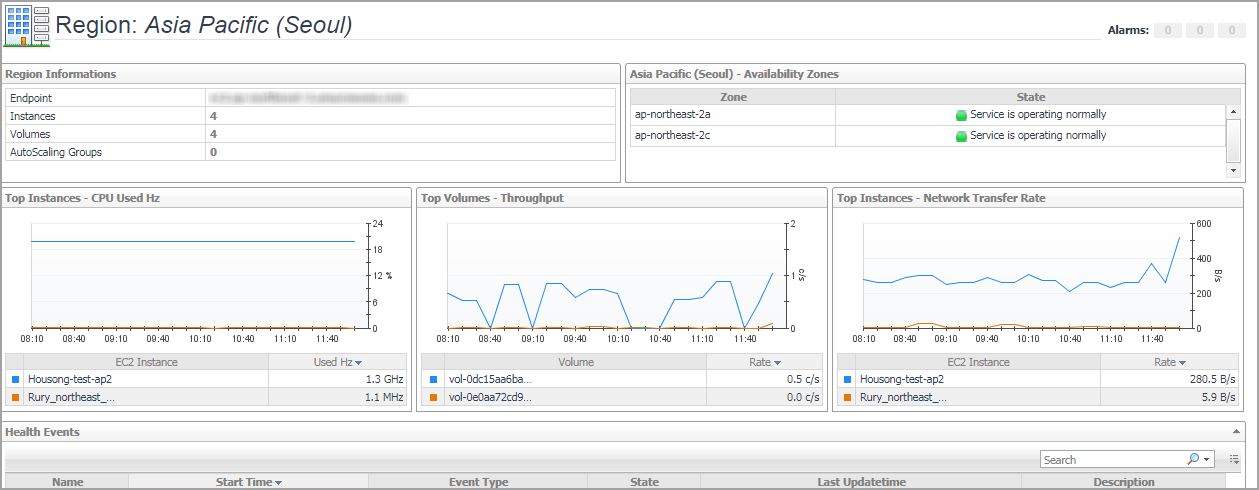

Figure 11. Region Explore view

This view consists of the following embedded views:

•
Region Information
•
Region Availability Zones
•
Top Consumers
•
Health Events

Table 7. Region Information
Description

Shows region basic information, include endpoints, instances, volumes, and auto scaling groups.


Table 8. Region Availability Zones
Description

Shows the state of the availability zones.


Table 9. Top Consumers
Description

Show the top 3 consumers at this region.

Data displayed
•
Top Instances - CPU Used Hz. Indicates top 3 CPU Usage at this region.

•
Top Volumes - Throughput. Indicates top 3 volume throughput at this region.

•
Top Instances - Network Transfer Rate. Indicates top 3 network transfer rate at this region.
Where to go next

Drill down on:


•
Click the instance name to drill down to instance explore view.

•
Click the volume name to drill down to volume explore view.



Table 10. Health Events
Description

Shows health events belong to this region, include the event name, start time, event type, and so on.

Account monitoring

The Accounts view shows the data collected about a specific account created by IAM users. For more information, see the following topics:

•
Accounts view
•
Summary - All Accounts view
•
Account Summary view

Accounts view

The Accounts tree view lists the account existing in your AWS environment and shows their state. This view appears on the left when you select the Accounts tile in the Actions bar.

Figure 12. Accounts view

Selecting the All Accounts node displays overall resource utilization for all accounts in your AWS environment and the elements that consume the highest amount of system resources in the Summary - All Accounts view on the right. Similarly, selecting an account node shows account-specific metrics in the Account Summary view on the right.



Table 11. Description of the View
Data displayed
•
Alarm severity. The state of the most recent alarm raised against the associated account.

•
All Accounts. A parent node for the account object instances that appear in this view.

•
Account. The account name.
Where to go next

Drill down on:


•
All Accounts. Shows the Summary - All Accounts view on the right.

•
Account. Shows the Account Summary view on the right.

Summary - All Accounts view

The Summary - All Accounts view displays overall resource utilization information for a group of accounts and shows the elements that consume the highest amount of system resources. This view appears on the right when you select All Accounts in the Accounts view.

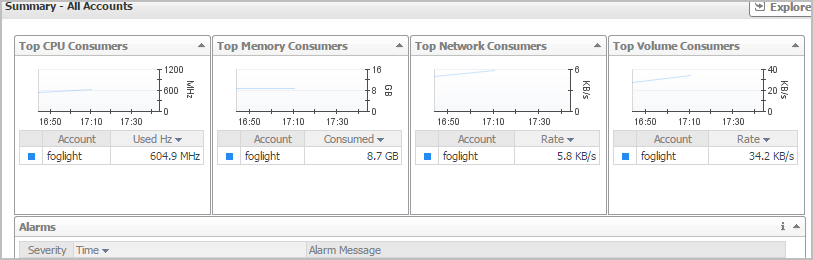

Figure 13. Summary - All Accounts view

This view consists of the following embedded views:

•
Alarms
•
Top CPU Consumers
•
Top Network Consumers
•
Top Memory Consumers
•
Top Volume Consumers


Table 12. Alarms
Description

Lists the alarms generated against the monitored account.

Data displayed
•
Alarm Message. An explanation about why the alarm occurred.

•
Severity. Indicates the alarm severity: Warning, Critical, or Fatal.

•
Time: Indicates when the alarm occurred.
Where to go next

Drill down on:


•
Alarm Message, Severity, or Time. Displays the Alarm Created dialog box, showing additional information about the alarm. For more information about alarms, see the Foglight User Help.

Table 13. Top CPU Consumers
Description

Shows the top three accounts with the highest average CPU utilization.

Data displayed
•
Utilization. The amount of CPU processing speed each of the top three CPU consumers spend on executing system code and user programs, during the selected time range.

•
Account. The name of the account.
Where to go next

Drill down on:


•
Account. Displays the fundamental account information, including Resource Information, CPU, Memory, Network, and Storage.

Table 14. Top Network Consumers
Description

Shows the top three accounts that are consuming most network bandwidth.

Data displayed
•
Rate. The rate at which the top three network consumers transfer data to or from the network during the selected time range.

•
Account. The name of the account that is one of the top three network consumers.
Where to go next

Drill down on:


•
Account. Displays the fundamental account information, including Resource Information, CPU, Memory, Network, and Storage.

Table 15. Top Memory Consumers
Description

Shows the top three accounts with the highest average memory utilization.

Data displayed
•
Account. The name of the virtual machine that is one of the top three memory consumers.

•
Rate. The amount of memory the top three memory consumers use during the selected time range.
Where to go next

Drill down on:


•
Account or Rate. Displays the fundamental account information, including Resource Information, CPU, Memory, Network, and Storage.

Table 16. Top Volume Consumers
Description

Shows the top three accounts with the highest available disk space.

Data displayed
•
Account. The name of the account that is one of the top three disk consumers.

•
Rate. The rate at which the top three disk consumers read or write data to the storage during the selected time range.
Where to go next

Drill down on:


•
Account or Rate.Displays the fundamental VM information, including Resource Information, CPU, Memory, Network, and Storage.
