Foglight Hybrid Cloud Manager 1.9 - User Guide (for AWS environments)

Using Foglight Hybrid Cloud Manager for AWS Monitoring Tab System Info Tab Tags Tab Report Tab Rule Configuration Tab Administration Tab Optimizer Tab Cost Tab Policy Management Tab

Tags Tab

The Tags tab of the Cloud Manager dashboard helps you quickly search for instances or volumes using tag name and tag values.

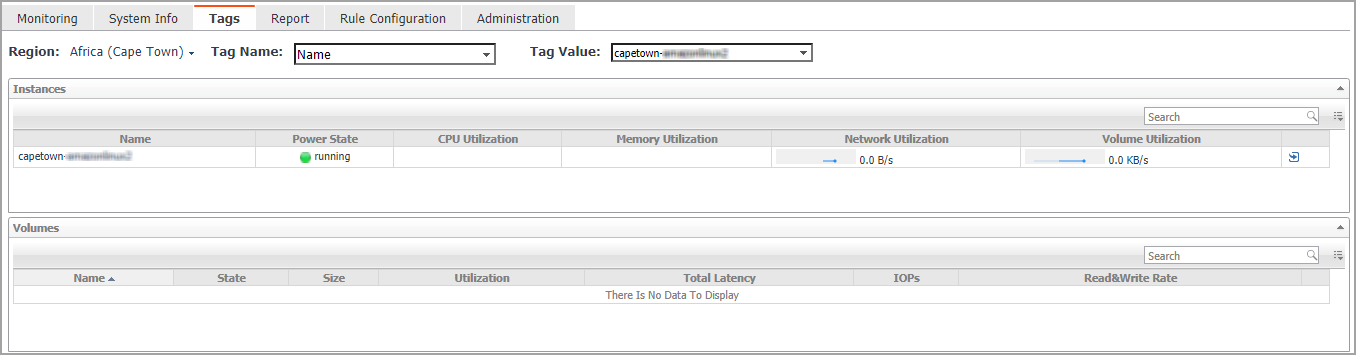

Figure 23. Tags dashboard

To access the Tags dashboard:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Cloud Manager.
The Cloud Manager dashboard opens.
4
Click Tags in the actions bar.
The Tags view opens on the bottom of Cloud Manager dashboard.

The Hybrid Cloud Manager for AWS provides the following query options:

•
Region. Lists all regions or available regions, for example, Singapore.
•
Tag Name. Sort out all tags that belong to the selected Region.
•
Tag Value. Sort out all tags that belong to the selected Tag Name.

The Instances table shows Name, Power State, CPU Utilization, Memory Utilization, Network Utilization, and Volume Utilization of the instances that include the specified tag name or value. The Volumes table shows Name, State, Size, Utilization, Total Latency, IOPS, and Read&Write Rate of the instances that include the specified tag name or value.



Report Tab

Foglight Hybrid Cloud Manager for AWS includes a report generation ability. This allows you to create reports using a set of predefined templates to report on the various aspects of your cloud environment. Foglight Hybrid Cloud Manager for AWS includes a collection of predefined report templates.

You can generate, copy, and edit reports using the Reports tab on the Report dashboard, or alternatively the Reports dashboard included with the Management Server.

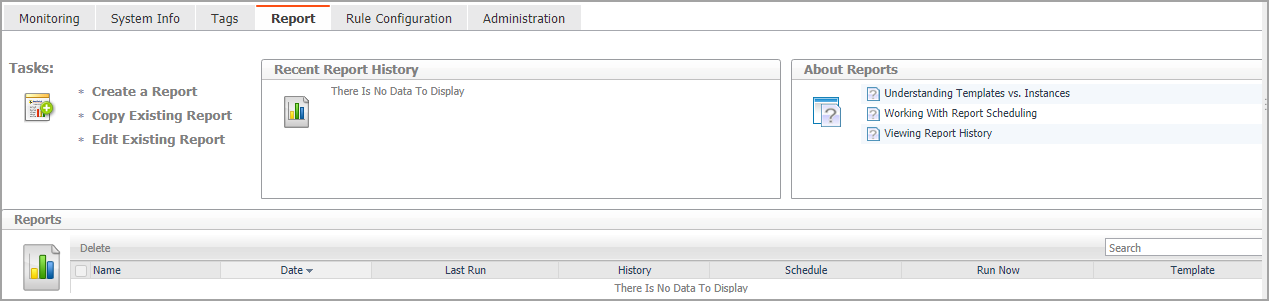

Figure 24. Report dashboard

To access the Report dashboard:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Cloud Manager.
The Cloud Manager dashboard opens.
4
Click Report in the actions bar.

For complete information about this tab, see the Managing Capacity in Virtual Environments User Guide. For more information about the Reports dashboard, see the Foglight User Help.

Available report templates

The following templates are available with Foglight Hybrid Cloud Manager for AWS.

Table 49. Report templates
Report Template Name
This template can be used to generate a report that…

Account Information - Summary

Summarizes your Account infrastructure, so that you could know your account's performance.

All Regions - Summary

Summarizes all regions at under your account, so that you could know all regions' performance.

AWS Optimizer - All Reports

Summarizes the AWS Optimizer resources.

AWS Optimizer - Potential Zombie VMs Reports

Summarizes the potential zombie VM resources.

AWS Optimizer - VM Resizing Reports

Summarizes the VM resizing resources.

Instance Performance - Detail

Summarizes the capacity and performance details of all instances.

Region Performance - Detail

Summarizes the capacity and performance details of the selected region.

Single Instance Performance - Detail

Summarizes the capacity and performance details of the selected instance.



Rule Configuration Tab

The Rule Configuration tab of the Cloud Manager dashboard contains links to rules and alarms tasks that you can use to manage AWS rules and alarms.

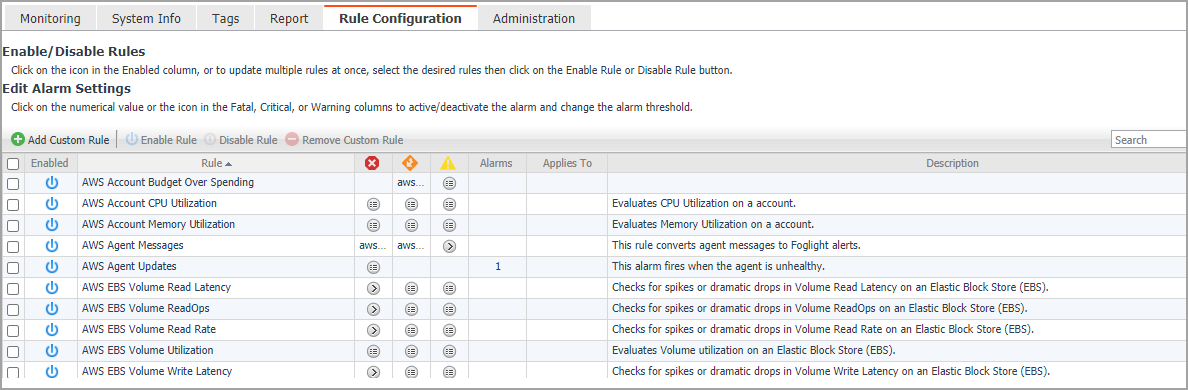

Figure 25. Rule Configuration dashboard

To access the Rule Configuration dashboard:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Cloud Manager.
The Cloud Manager dashboard opens.
4
Click Rule Configuration in the actions bar.

For more information, see the following topics:

•
Rules view
•
Enabling/Disabling rule(s)
•
Adding a custom rule
•
Removing custom rule(s)
