Foglight Hybrid Cloud Manager 1.4 - User Guide (for AWS environments)

Monitoring Tab

When navigating to the Cloud Manager dashboard for the first time, the Monitoring tab appears. The Monitoring tab allows you to select a monitoring object or a group of objects, such as regions, accounts, EC2 instances, or EBS, and review the data associated with your selection.

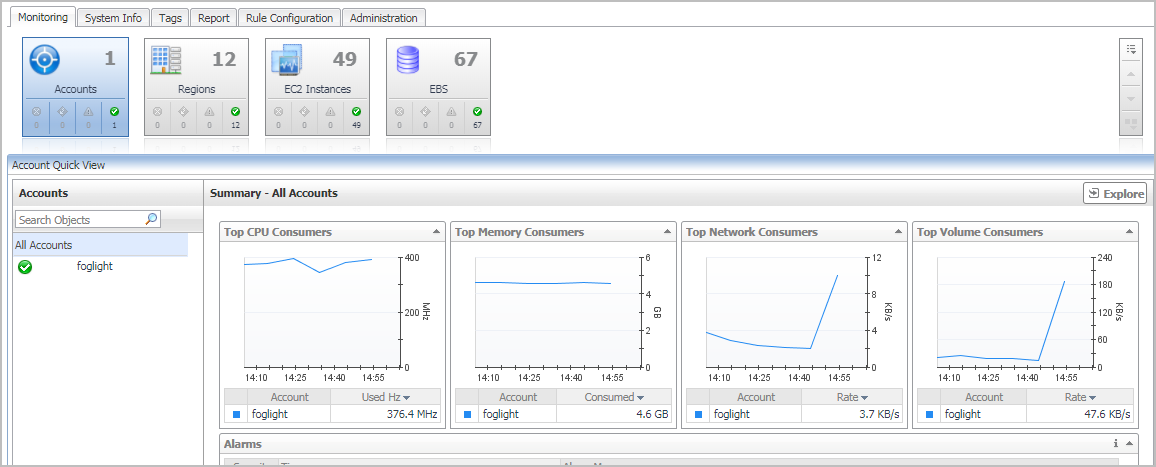

Figure 5. Monitoring dashboard

To access the Monitoring dashboard:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Cloud Manager, and then click AWS.
The Cloud Manager dashboard opens
4
On the actions bar, click Monitoring.
5
Select the Regions, Accounts, EC2 Instances, or EBS tile from the top left.

For more information, see the following topics:

•
Regions monitoring
•
Account monitoring
•
EC2 Instances Monitoring
•
EBS monitoring

Regions monitoring

The Regions view shows the data collected about a specific region or all AWS regions. For more information, see the following topics:

•
Regions view
•
Summary - All Regions view
•
Explore - All Regions view
•
Region Summary view
•
Region Explore view

Regions view

The Regions tree view lists the regions existing in your AWS environment and shows their state. This view appears on the left when you select the Regions tile in the Actions bar.

Figure 6. Regions view

Selecting the All Regions node displays the Summary - All Regions view on the right. Similarly, selecting a region node shows region-specific metrics in the Region Summary view on the right.



Table 1. Description of the View
Data displayed
•
Alarm severity. The state of the most recent alarm raised against the associated virtual machine.

•
All Regions. A parent node for the regions that appear in this view.

•
Region. The region name.
Where to go next

Drill down on:


•
All Regions. Shows the Summary - All Regions view on the right.

•
Region. Shows the Region Summary view on the right.

Explore - All Regions view

The Explore - All Regions view appears when you click Explore in the Summary - All Regions view.

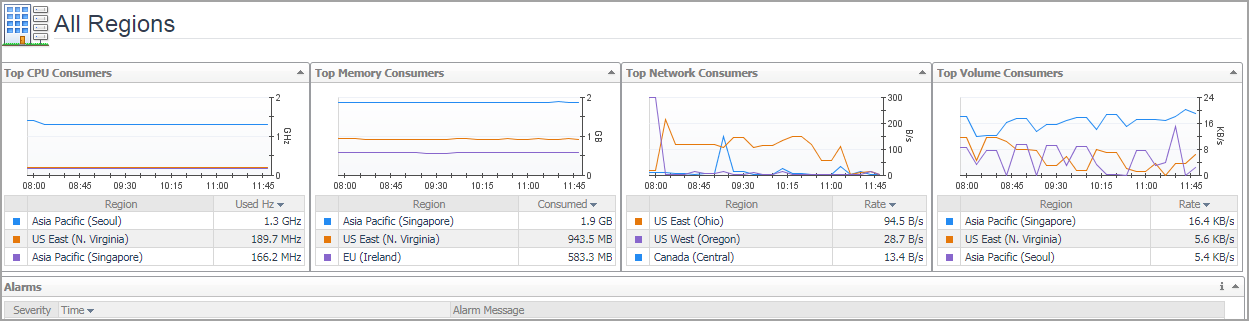

Figure 7. Explore - All Regions view

This view consists of the following embedded views:

•
Alarms
•
Top 3 Consumers

Table 2. Alarms
Description

Lists the alarms generated against the selected virtual machine.

Data displayed
•
Alarm Message. An explanation about why the alarm occurred.

•
Severity. Indicates the alarm severity: Warning, Critical, or Fatal.

•
Time. Indicates when the alarm occurred.
Where to go next

Drill down on:


•
Alarm Message, Severity, or Time. Displays the Alarm Created dialog box, showing additional information about the alarm. For more information about alarms, see the Foglight User Help.

Table 3. Top 3 Consumers
Description

Shows the top three consumers in all regions.

Data displayed
•
CPU Consumers. Indicates top 3 CPU Utilization usage regions.

•
Memory Consumers. Indicates top 3 memory usage regions.

•
Network Consumers. Indicates top 3 network usage regions.

•
Volume Consumers. Indicates top 3 volume usage regions.
Where to go next

Drill down on:


•
Click the Region to drill down to region explore view.
