Foglight Hybrid Cloud Manager 1.4 - User Guide (for AWS environments)

Available report templates

The following templates are available with Foglight Hybrid Cloud Manager for AWS.

Table 49. Report templates
Report Template Name
This template can be used to generate a report that…

Account Information - Summary

Summarizes your Account infrastructure, so that you could know you account's performance.

All Regions - Summary

Summarizes all regions at under your account, so that you could know all regions' performance.

Instance Performance - Detail

Summarizes the capacity and performance details of all instances.

Region Performance - Detail

Summarizes the capacity and performance details of the selected region.

Single Instance Performance - Detail

Summarizes the capacity and performance details of the selected instance.



Rule Configuration Tab

The Rule Configuration tab of the Cloud Manager dashboard contains links to rules and alarms tasks that you can use to manage AWS rules and alarms.

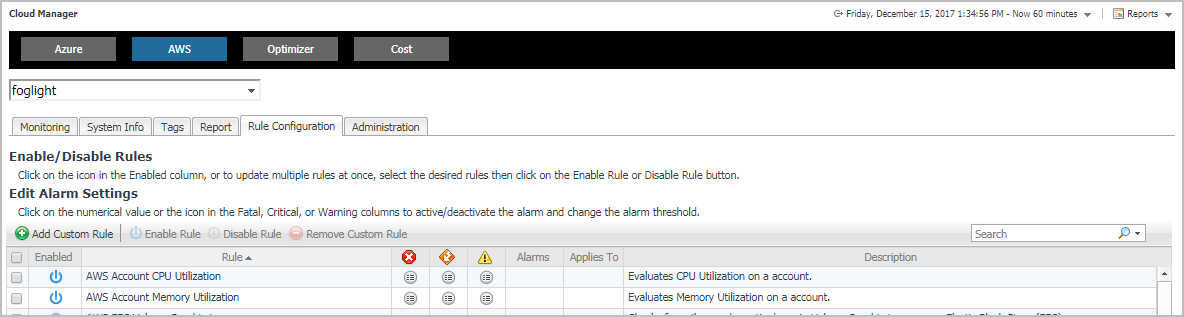

Figure 25. Rule Configuration dashboard

To access the Rule Configuration dashboard:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Cloud Manager.
The Cloud Manager dashboard opens.
4
Click Rule Configuration in the actions bar.

For more information, see the following topics:

•
Rules view
•
Enabling/Disabling rule(s)
•
Adding a custom rule
•
Removing custom rule(s)

Rules view

By default, the following columns are displayed in the Rules view:

•
Enabled: Indicates if the rule is enabled or disabled . You can sort the list of rules by state, by clicking the Enabled column.
•
Rule: Contains the rule name. Click the rule name to start the workflow for viewing and editing rule details.
•
Fatal , Critical , and Warning thresholds (multiple-severity rules only):
•
For expressions that include one registry variable, these columns contain the current value of that variable. Click the value to edit it.
•
For expressions that include multiple registry variables, the column contains an icon . Clicking that icon shows the list of referenced registry variables and their values. Click a value to edit it.
•
For expressions that do not include any registry variables, this column contains an icon . Clicking that icon navigates to the Edit Rule dashboard.
•
For rule states that do not have a conditional expression defined, this column is empty.
•
Alarms: Contains the number of alarms (multiple-severity rules only) generated by the rule. Clicking that column shows a list of alarms indicating for each alarm its severity, when the alarm was generated, and the alarm message.
•
Applies to: Shows the object name that is applied to this custom rule.
•
Description: Contains the rule description.

Enabling/Disabling rule(s)

The Rule Configuration dashboard shows a list of existing rules and a set of rule management commands at the top of the list. Use the Enable Rule and Disable Rule buttons to activate or deactivate one or multiple rules at once.

To enable a rule:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Cloud Manager.
The Cloud Manager dashboard opens.
4
Click Rule Configuration.
The Rule Configuration dashboard opens.
5
On the Rules list, select one or more check boxes in the left-most column, and then click Enable Rule.
The Enable Rules dialog box opens.
6
In the Enable Rules dialog box, click Yes.
The Rules list refreshes with the rules’ status updated automatically.
To disable a rule:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Cloud Manager.
The Cloud Manager dashboard opens.
4
Click Rule Configuration.
The Rule Configuration dashboard opens.
5
On the Rules list, select one or more check boxes in the left-most column, and then click Disable Rule.
The Disable Rules dialog box opens.
6
In the Disable Rules dialog box, click Yes.
The Rules list refreshes with the rules’ status updated automatically.
